BG Electrical NBS83 Nexus Raised Edge Brushed Steel Screwed 3 Gang 2 Way Push Trailing Edge Dimmer Switch - Suitable For LED Lighting 200W

BG Electrical NBS83 Description

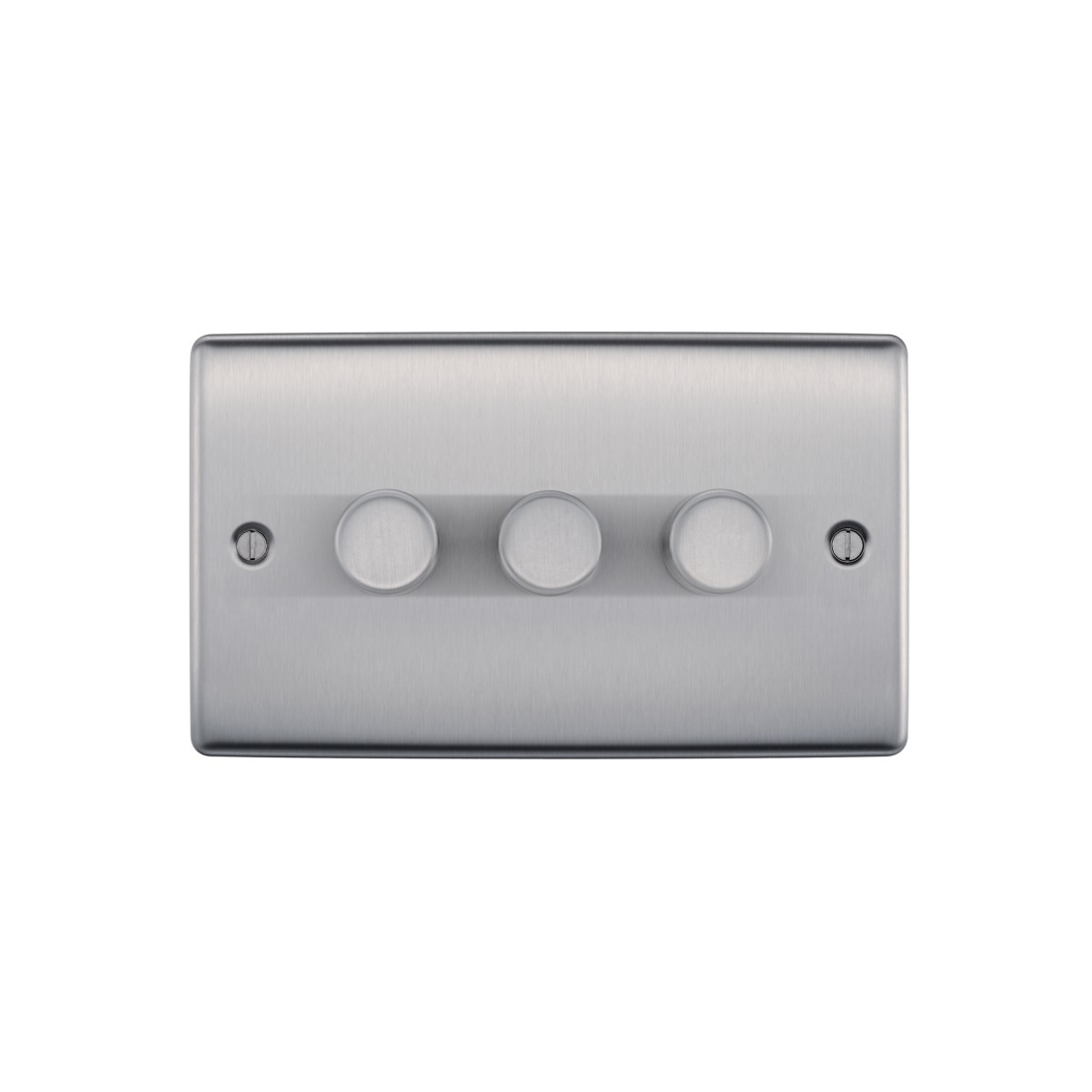

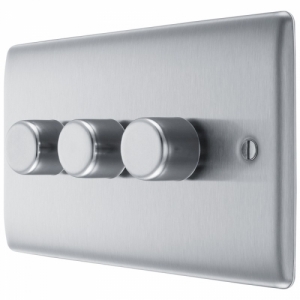

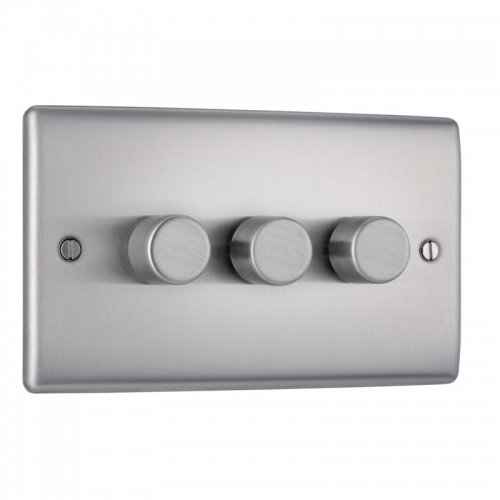

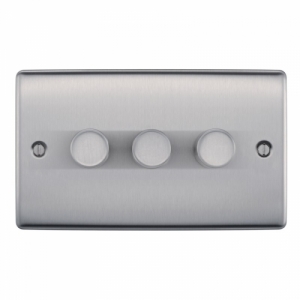

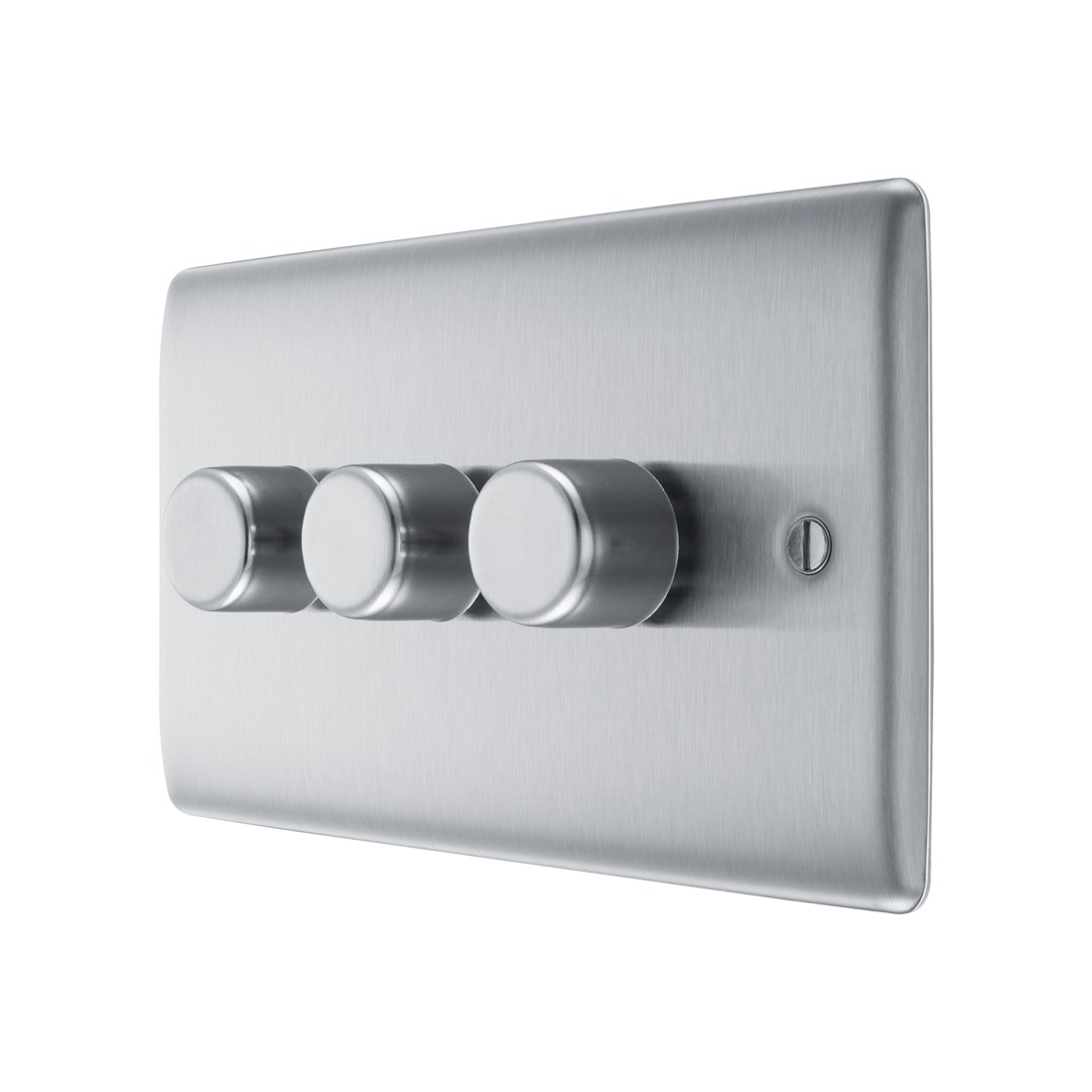

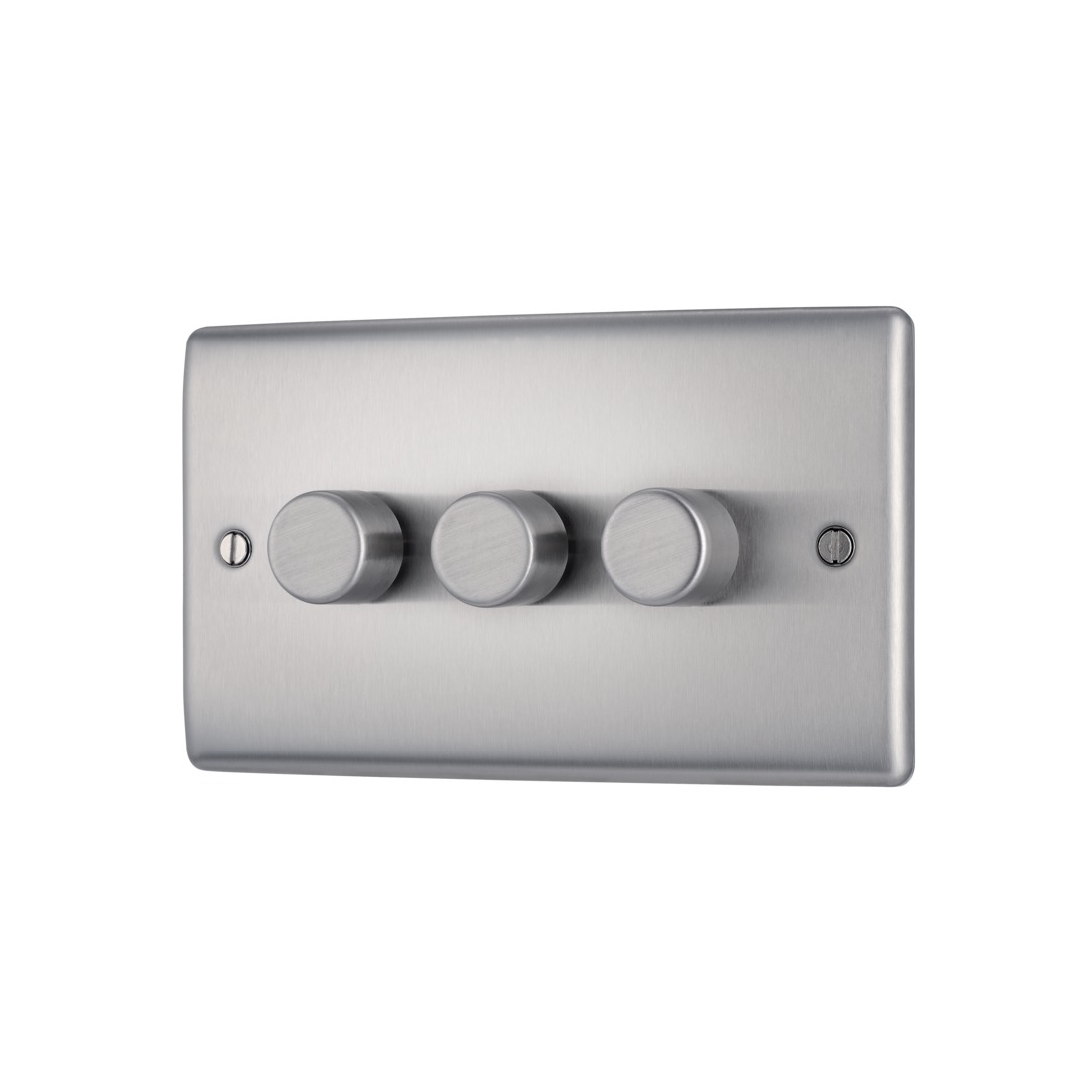

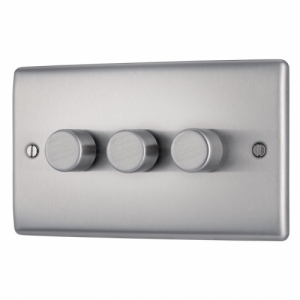

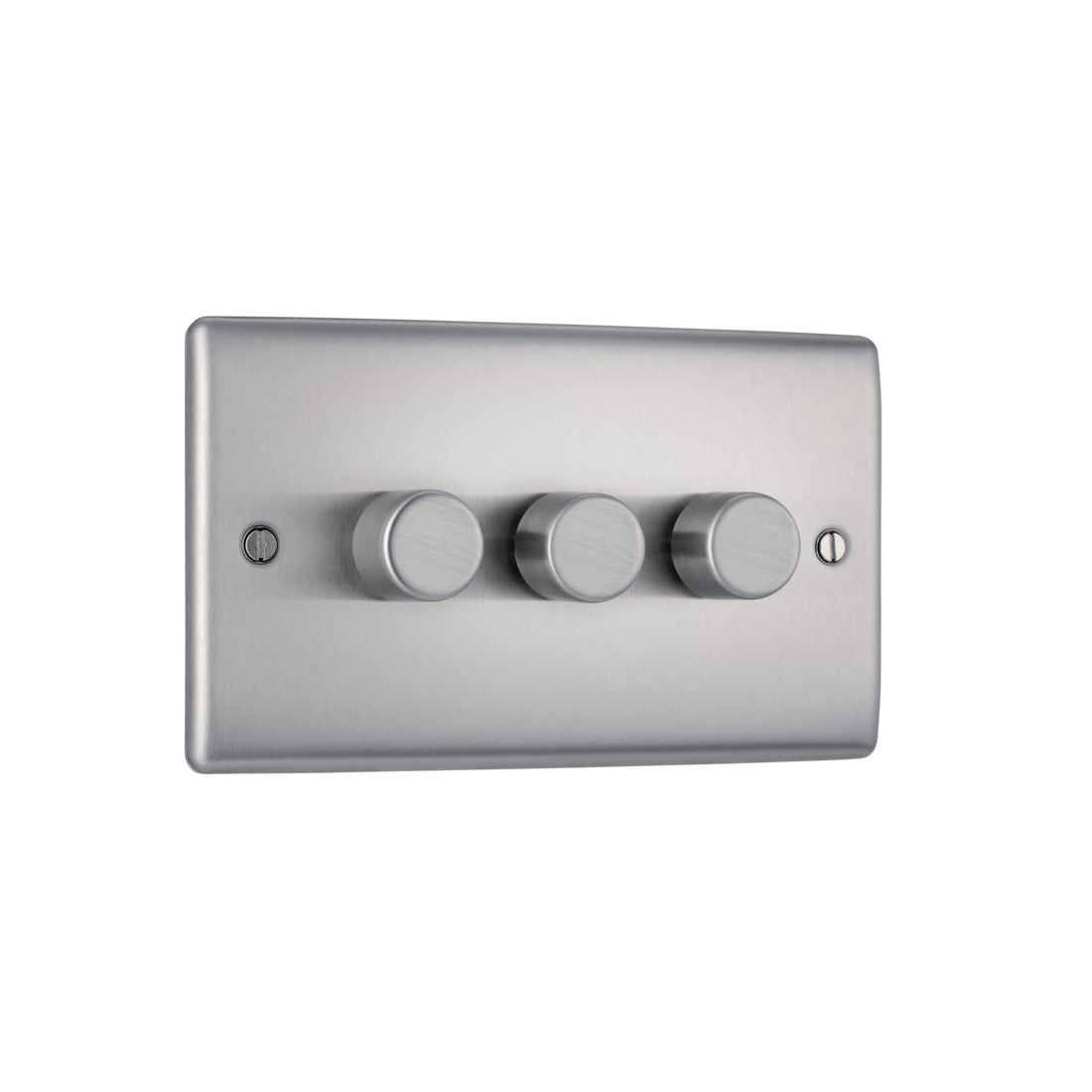

The BG Electrical Nexus Metal NBS83 is a sleek brushed steel raised edge 3 gang 2 way 200W intelligent dimmer switch that is used to vary the brightness of a light and to enhance the ambient mood settings.

The sleek and slim design with softly rounded corners that will compliment any interior décor. Each dimmer knob is in a matching brushed steel finish. Suitable for domestic or commercial installations.

This intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers. This enables greater compatibility for LED, Halogen, CFL and Incandescent lamps.

Delivers smooth control with no noise while dimming, and accounts for lower-wattage lamps in order to eliminate flickering. These dimmer switches come with BG’s soft start technology, bringing lamps to a set level of light in the space of a second and so prolonging their lifespan. They also protect against overloading by automatically lowering the power sent to lights or transformers if too many are connected, keeping the consumer safe.

With a lightly lacquered surface to reduce the impression of fingerprints, it will continue to look clean and tidy even with repeated usage.

Fits into standard flush/surface mounting boxes (25mm minimum box depth required). Features angled colour coded terminals and backed out captive screws and twin earth terminals for ease of installation.

Supplied with a 25-year guarantee.

BG Electrical NBS83 Features

• BG Electrical NBS83 3 gang 2 way intelligent dimmer switch
• Brushed steel raised edge design
• Stylish modern profile with colour matched fixing screws
• Rating: 200W
• Tungsten lamp - 60-400W
• Halogen lamp (Mains Voltage) - 50-400W
• Halogen lamp (Low Voltage, 12V) - 35-350W
• Dimmable LED - 5-50W
• Dimmable Compact Fluorescent (CFL) - 10-100W
• Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers
• Offers greater compatibility for LED, Halogen, CFL and incandescent lamps
• Rotary dimmer control with push on/off function
• Matching dimmer knobs
• Smooth dimming control
• Silent operation - no noise when dimming
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Overload protection
• Support for lower wattage lamps eliminates flicker
• Fixed integrated plastic gasket to protect metal edges from moisture

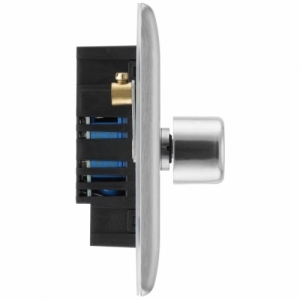

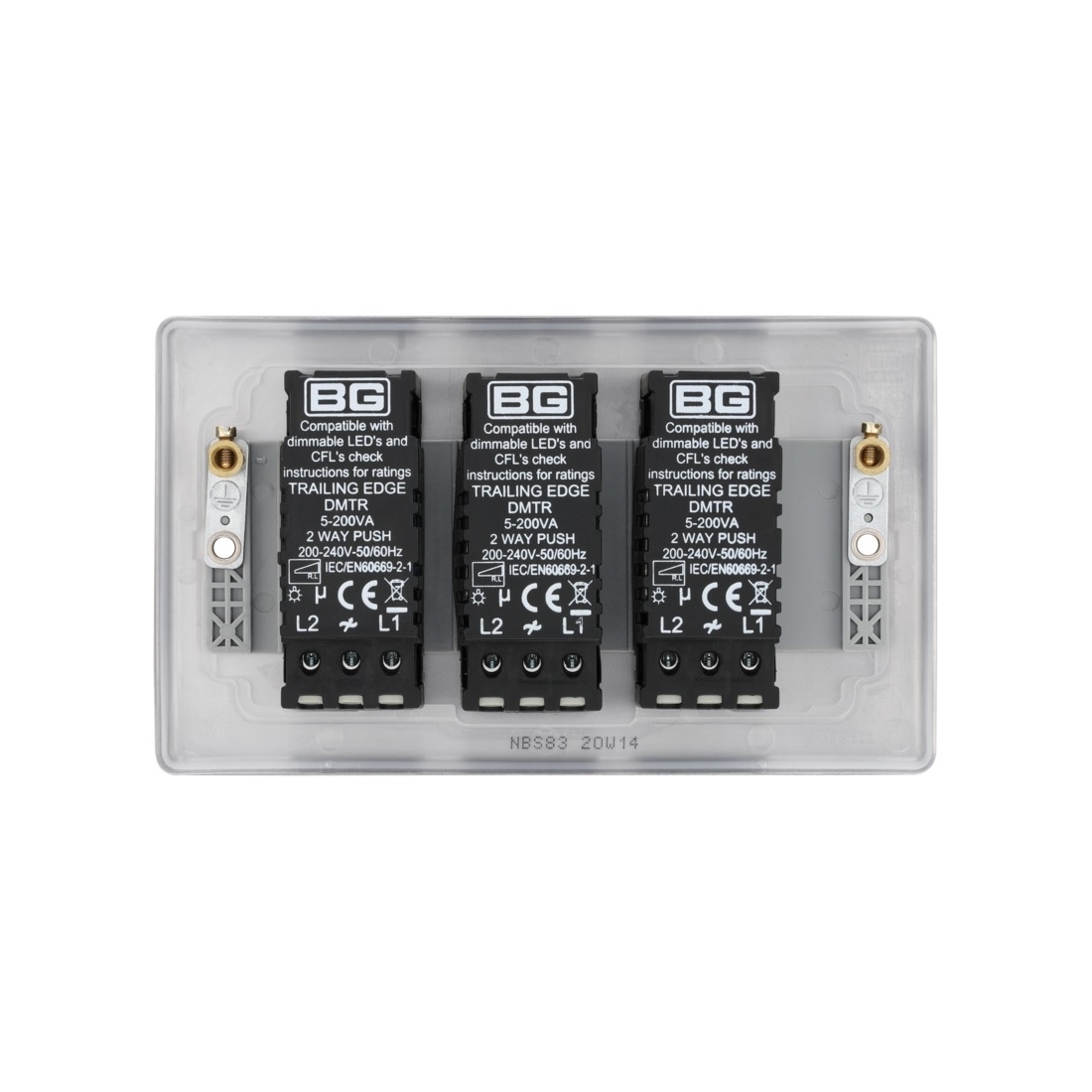

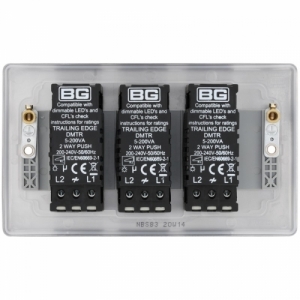

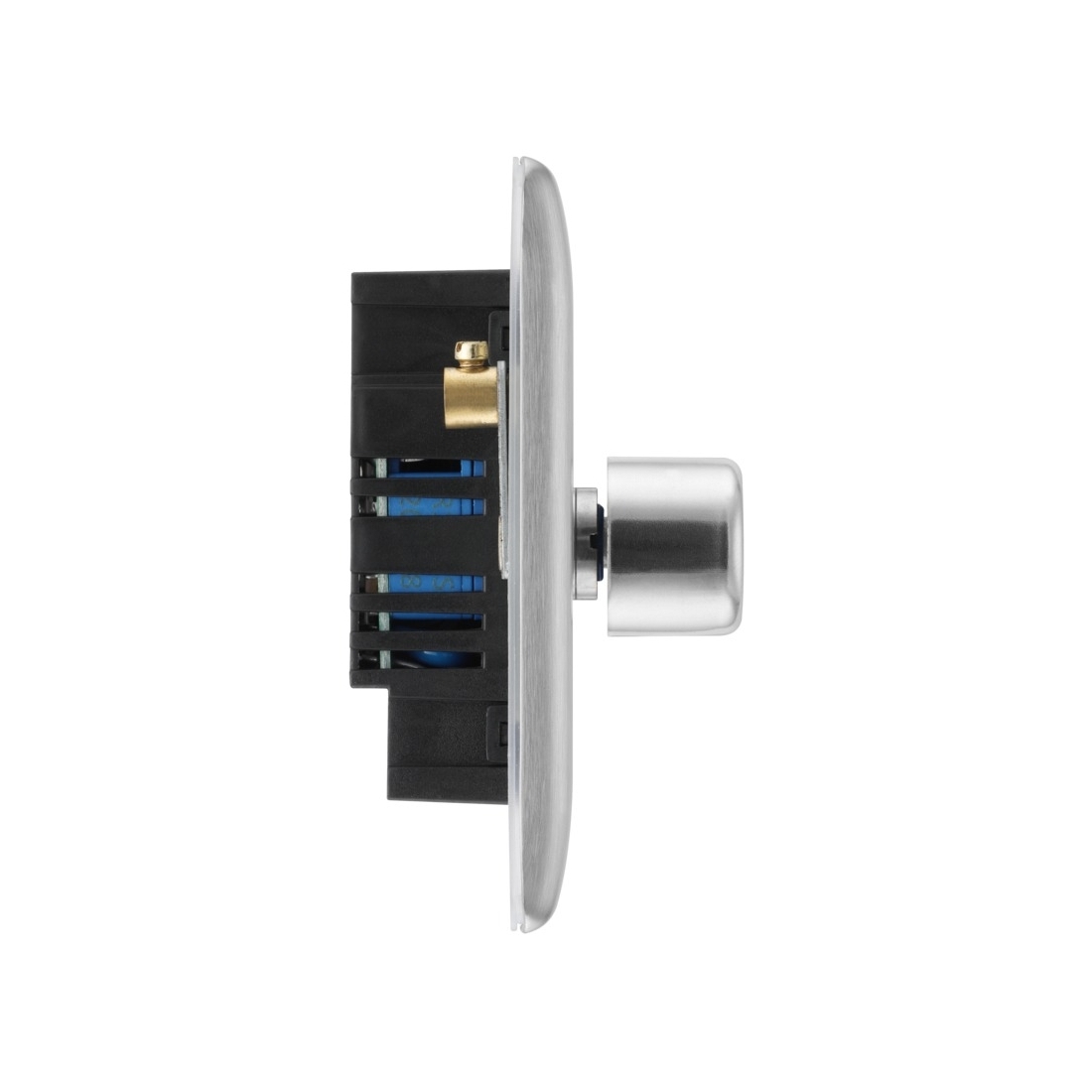

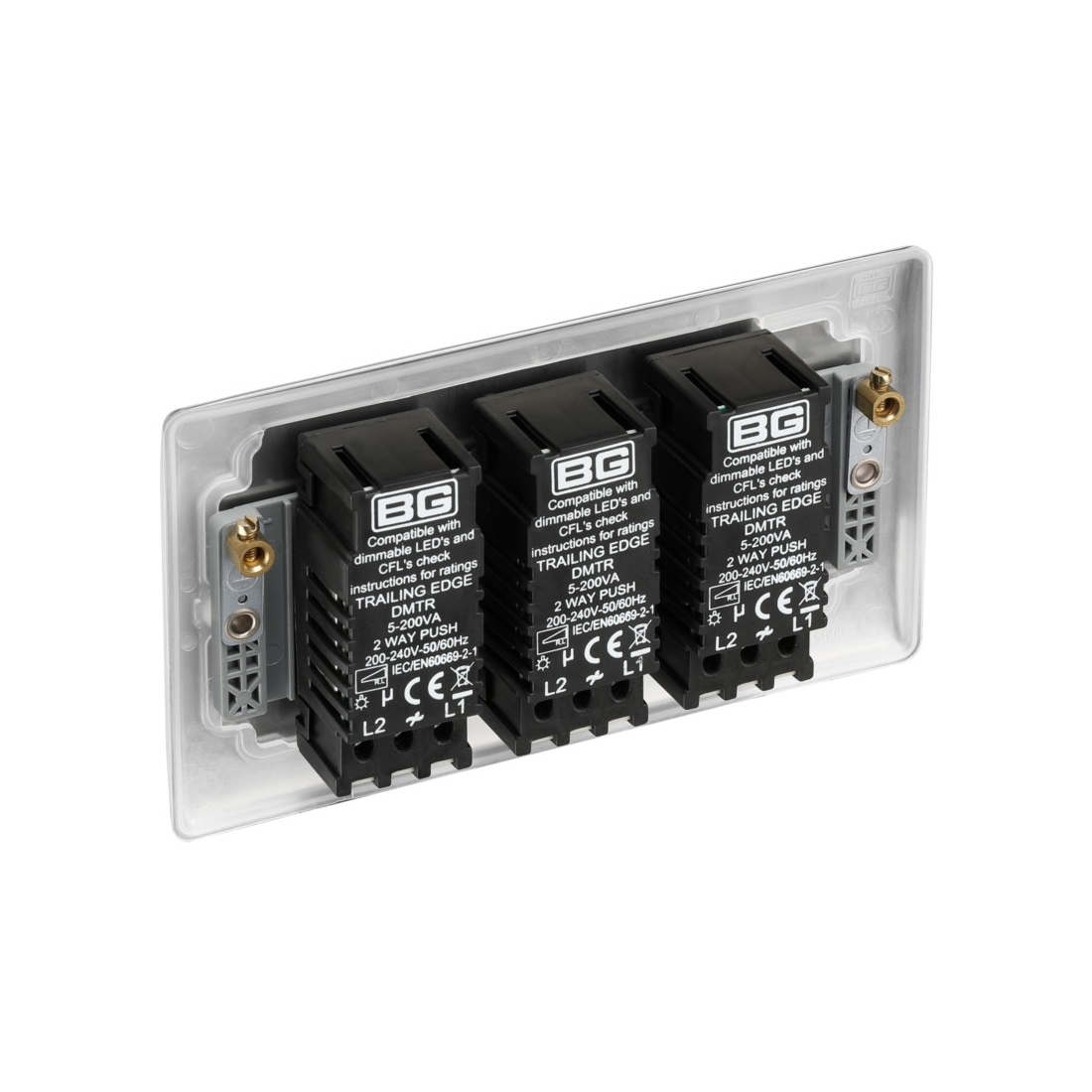

• Angled in-line colour coded captive terminals
• Twin earth terminals
• Minimum mounting box depth: 25mm
• Manufactured to BS EN 60669-2-1
• Dimensions: Height: 86mm | Width: 146mm | Depth: 41mm
