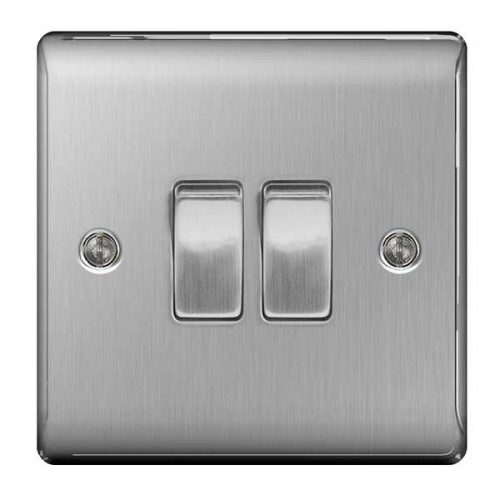

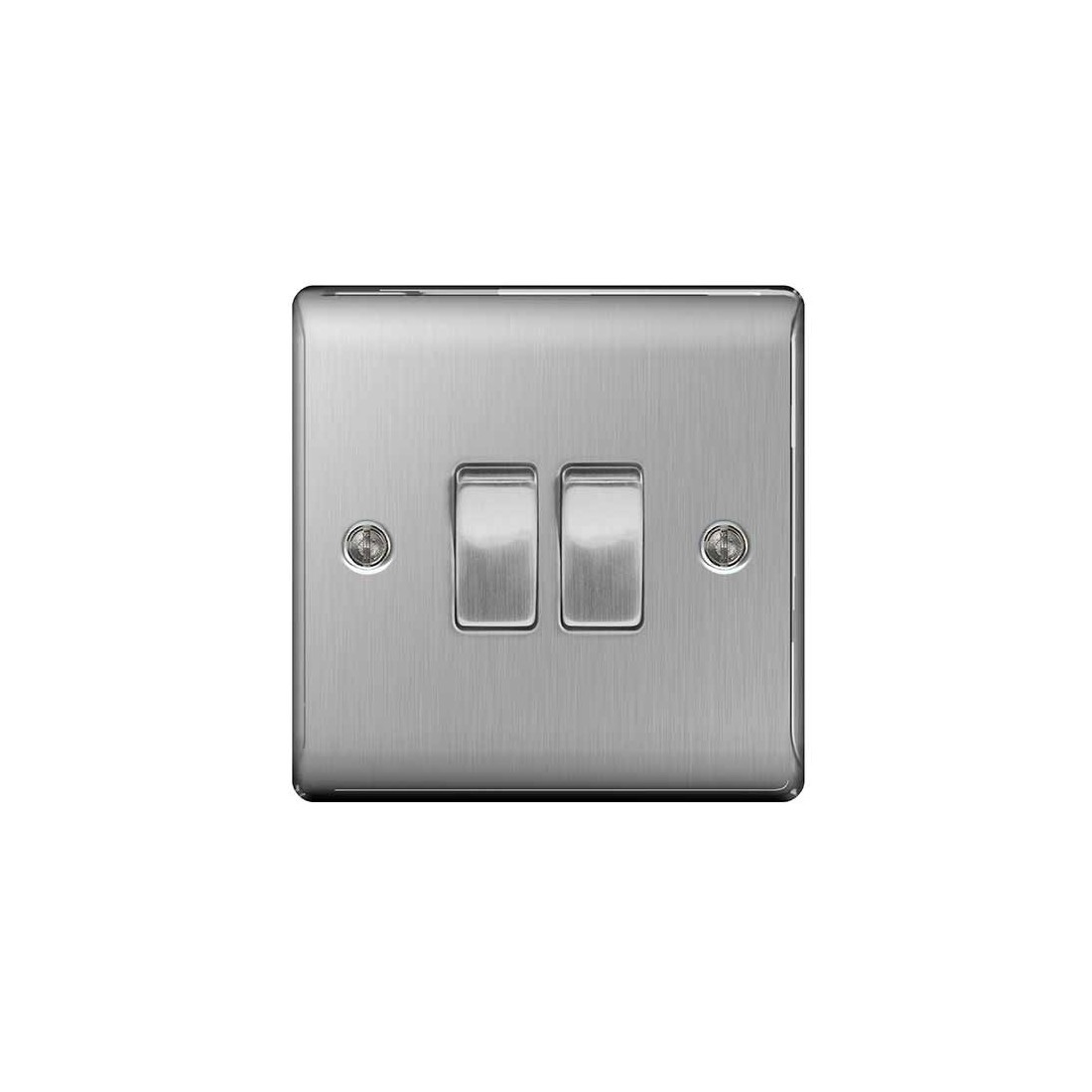

BG Electrical NBS42 Nexus Metal Brushed Steel 2 Gang 2 Way Plateswitch 20A 16Ax
The BG Electrical NBS42 Nexus Brushed Steel 20A 16Ax 2 Gang 2 Way Plateswitch compliments any interior décor and is suitable for domestic or commercial installations.
Order code: NBS42
Manufacturer: BG Electrical
GTIN: 5050765018852
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BG Electrical NBS42 Description
The BG Electrical Nexus Metal NBS42 is a brushed steel decorative 2 gang 2 way plateswitch which compliments any interior décor and is suitable for domestic or commercial installations.
Premium sleek and slim gently curved brushed steel plate which has rounded corners and colour matching fixing screws offering a sleek, low profile appearance – combining quality with stunning good looks.
The lightly lacquered surface to help reduce fingerprint smudges. It has matching shaped brushed steel rockers which have no visible plastic surround. Fixed integrated plastic gasket protects the metal edges from moisture.
Designed to perform at 16AX inductive loads, the two-way switch can be wired for one or two way control.
Features angled in-line colour coded terminals and backed out captive terminals for ease of installation.
BG Electrical NBS42 Features
- BG Electrical NBS42 brushed steel 2 gang 2 way plateswitch
- Sleek and slim premium metal accessories with softly rounded raised edges
- Brushed steel raised faceplate with rounded corners
- Lightly lacquered surface to reduce fingerprint marks
- Fixed integrated plastic gasket protects the metal edges from moisture
- No visible plastic around matching brushed steel rockers
- Suitable for everyday use in domestic and commercial environments
- Designed to perform at 16AX inductive load
- Can be wired for one or two way control
- Colour coded terminals with backed out captive screws for easy installation
- Minimum mounting box depth: 16mm
- Terminal capacity 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
- Manufactured to BS EN 60669-1
- Dimensions: Width: 86mm | Height: 86mm | Depth: 21.2mm
| Brand : | BG |
| Part No : | NBS42 |
| GTIN : | 5050765018852 |
| Product Range : | Nexus Metal |
| Current Rating : | 10A |
| Voltage Rating : | 230V |
| Standards : | BS EN 60669 |
| Number of Gangs : | 2 |
| Mounting : | Wall |
| Fixing Centres : | 60.3mm |
| Height : | 86mm |
| Mounting Depth : | 25mm |
| Width : | 86mm |
| Guarantee : | 25 Years |
| Finish : | Brushed Steel |
| Weight : | 0.00800kg |
| Number of Ways : | 2 |
