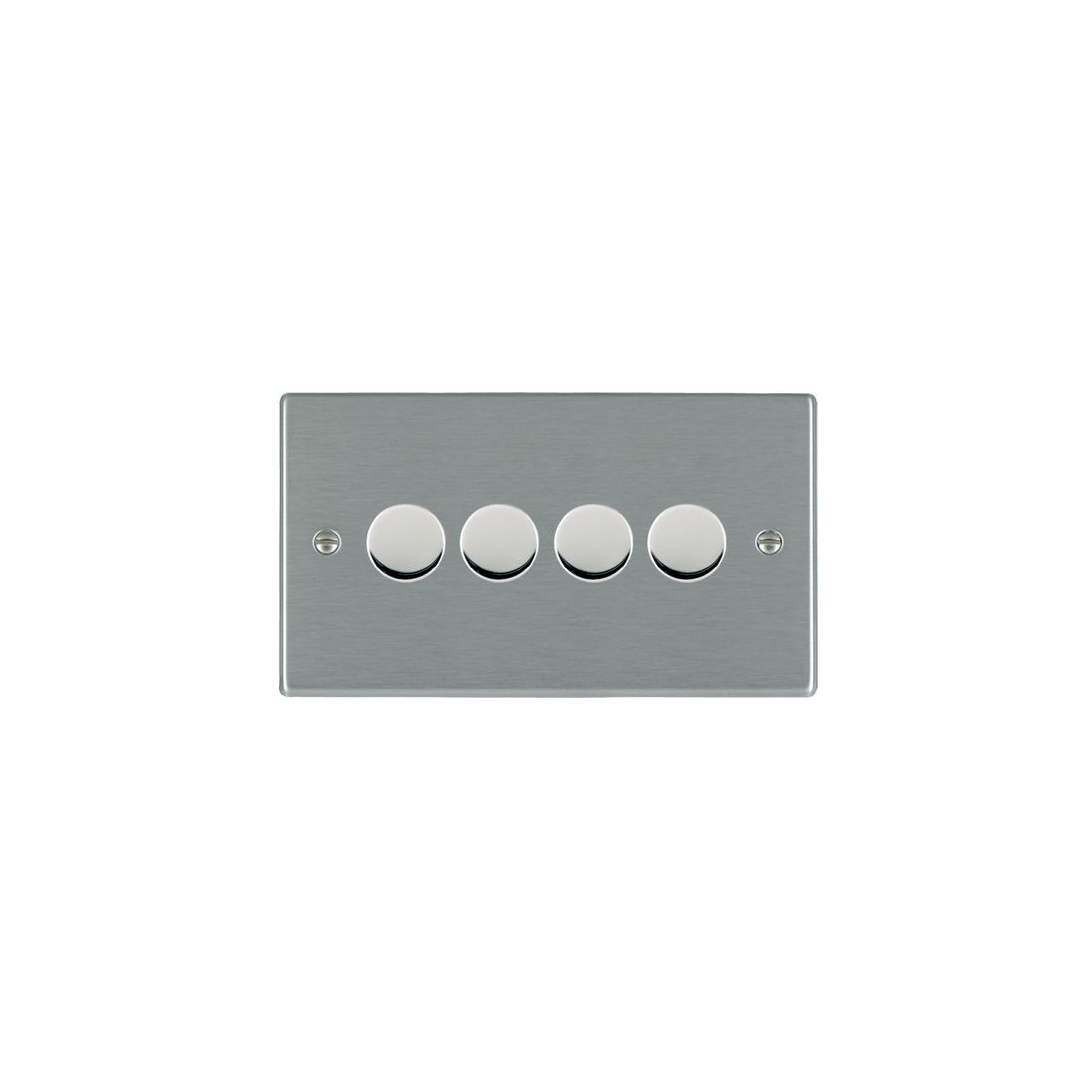

Hamilton Litestat 744XLEDITB100 Hartland Satin Steel Raised Edge Screwed 4 Gang 2 Way LED Trailing Edge / Leading Edge Push On/Off Rotary Dimmer Switch 100W

The Hamilton 744XLEDITB100 Hartland Bright Steel 100W 2 Way Push On/Off Rotary Switching LED Dimmer is a 4 gang, 2 way lighting dimmer switch that offers sleek modern aesthetics for domestic or commercial installations.

Order code: 744XLEDITB100
Manufacturer: Hamilton Litestat
GTIN: 5017504079338

£ 68.02 incl. VAT
£ 56.68 excl. VAT

Trade Price: £ 164.01
You SAVE
£ 107.33 or 65%
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Hamilton Litestat 744XLEDITB100 Description

Hamilton Litestat 744XLEDITB100 Hartland Satin Steel Raised Edge Screwed 4 Gang 2 Way LED Trailing Edge / Leading Edge Push On/Off Rotary Dimmer Switch 100W

The Hamilton Hartland range of satin steel decorative raised edge wiring accessories offer stylish slim front plates with matching switch insert finishes and visible fixings.

A popular collection with installers and end-users alike that will complement any interior decor.

Hamilton Litestat 744XLEDITB100 Features

  • Slim, sleek and stylish
  • Visible fixings
  • Standard box-fix electrical accessories
  • Plate finish: Satin Steel
  • Plate material: Metal
  • Insert: Satin Steel Knob
  • Plate depth: 5mm
  • Minimum wall box depth: 35mm
  • Wattage: 5 - 100 W (maximum 10 LED Lamps)
  • Current rating: 0.4A
  • Voltage: 230V AC
  • Mains frequency: 50Hz
  • Trailing Edge and Leading Edge dimmer
  • Configurable minimum dimming level and dimming mode
  • Tungsten filament GU10 lamps must be branded with a fuse base
  • Compatible with incandescent lamps, mains halogen lamps, mains dimmable LED lamps, mains dimmable CFL lamps and dimmable LV electronic transformers
  • Built in short circuit protection that, once activated, will suspend operation for 5 seconds
  • Soft start up and down feature helps to extend lamp life
  • Set to Trailing Edge mode by default, but can be manually changed to Leading Edge mode
