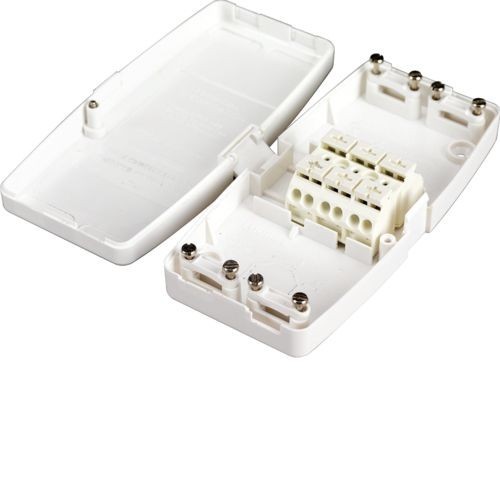

Hager Ashley J803 240V/32A 3 Terminal Junction Box
Hager Ashley J803 240V/32A 3 Terminal Junction Box is a 3 terminal junction box that is compliant to 17th edition regulations and provides a secure and maintenance-free means of connecting fixed wiring in any indoor application.
Order code: J803
Manufacturer: Hager
GTIN: 3250610454916
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Hager J803 Description
The Hager Ashley J803 is a white 3 terminal 32A maintenance free, 18th edition compliant junction box provides a secure and maintenance free means of connecting fixed wiring in any indoor application designed for the increasing need need to fit junction boxes in so called 'inaccessible' areas.
Recommended for use in residential and commercial buildings, refurbishments and re-wires, power and lighting circuits and circuits wired in sheathed cables. Ideal for taking spurs off uncut ring or loop circuit cables.
Designed to be user friendly, the 3 terminals allow plenty of room for easy installation and wiring, easily accessed by 4 knockout entries.
The J803 contains spring fit terminals that do not relax and therefore do not need to be accessible for future inspection. Tests on these terminals include long-term vibration, shock test, long term connection test, pull out, voltage drop, temperature rise and exposure to corrosive atmospheres.
The terminals accept and secure solid, stranded or flexible conductors from 0.5mm² to 4mm². Twin and CPC and flexible cords can all be mixed. You then secure the cage clamp terminal using a screwdriver or finger to push down on the push button.
Hager J803 Features
- Conforms to BS EN 60670-22 and BS EN 60670-22
- 18th Edition Compliant
- Current Rating: 32 amp
- Suitable for use in inaccessible areas such as under the floor, behind the wall, or jointing of cables
- Knockout entries on base & lid allow you to select your cable entry points
- Four selectable cable entry points
- Self retaining lid screws
- Cable clamp instructions in base
- Cable clamps prevent strain on terminations and prevent exposed unsheathed conductors
- Fixing points for securing to joists
- Reversible cable clamps
- 4 separate cable terminations per connector
- Easy to cable
- Fits nicely in the hand
- Generous wiring space
- Allows for mixed cable types T&E and flexible cords can be mixed.
- Screwless push to fit terminals do not relax, and so do not require inspection
- Number of Terminals: 3 x 4 x (0.5mm² - 4.0mm²)
- Junction Box Dimensions: Length: 140mm | Width: 65mm | Depth: 30mm
