Scolmore CT202C Flow Blue 4 Pole Fast-Fit Screw Down Cord Grip Connector 20A 240V

Scolmore CT202C Description

The Scolmore CT202C Clickflow is a 20A blue 4 pole fast-fit push-in / pull apart screw down cord grip connector primarily designed for lighting circuits with the emphasis around ease of installation.

With increased load handling that has been designed specially to help contractors create more complex lighting installations quickly, easily and safely. With the CT202C there is no requirement to isolate to change a fitting anymore.

It features quick connection, configuration and re-configuration of circuits meaning installations are neater, more organised and faster, ideal for saving time and money on site. Disconnecting the male/female plug connection allows for easy maintenance or replacement of light fittings.

Auxiliary provides the opportunity for a second switched live or permanent feed for use typically with emergency lighting applications

Designed with large terminals with easy access and terminal screws supplied raised giving an easy lock and release mechanism.

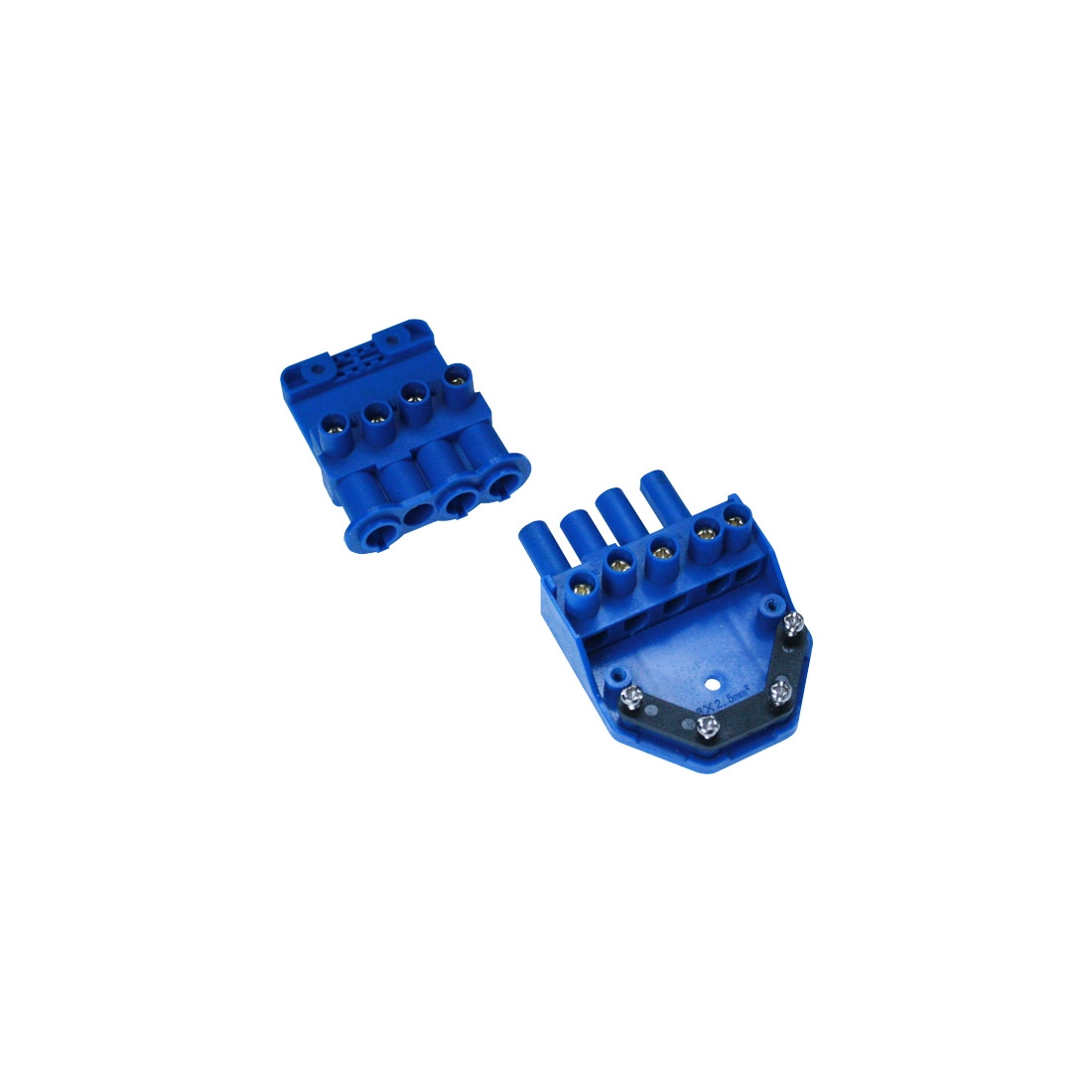

Comprising 2 sections, male and female, fitted with silver plated brass terminals. The female connector has a capacity for 3 x 2.5mm² terminals alongside an additional loop terminal. The male connector can terminate 4 x 1.5mm² cables, it has a cord grip on the male connector making it more secure.

The width of the CT202C connector is just 50mm at its widest point making it an ideal connector for recessed downlights as it will easily fit thought the ceiling cut-out hole or indeed through a hole that could be covered by the ceiling cup of many decorative ceiling lights, chandeliers or pendants.

Scolmore CT202C Features

• Scolmore CT202C fast-fit pull apart screw down cord grip connector with secure click in fastener
• 4-pin plug-in flow connector
• Auxiliary provides the opportunity for a second switched live or permanent feed for use with emergency lighting
• 20A 250V~
• Conforms to BS 5733
• IP Rating: IP20
• Cable size: 4 x 1.0mm² flex or 3 x 2.5mm²
• Male end accepts one 1.5mm² cable or smaller
• Cord restraint is fitted within the male connector

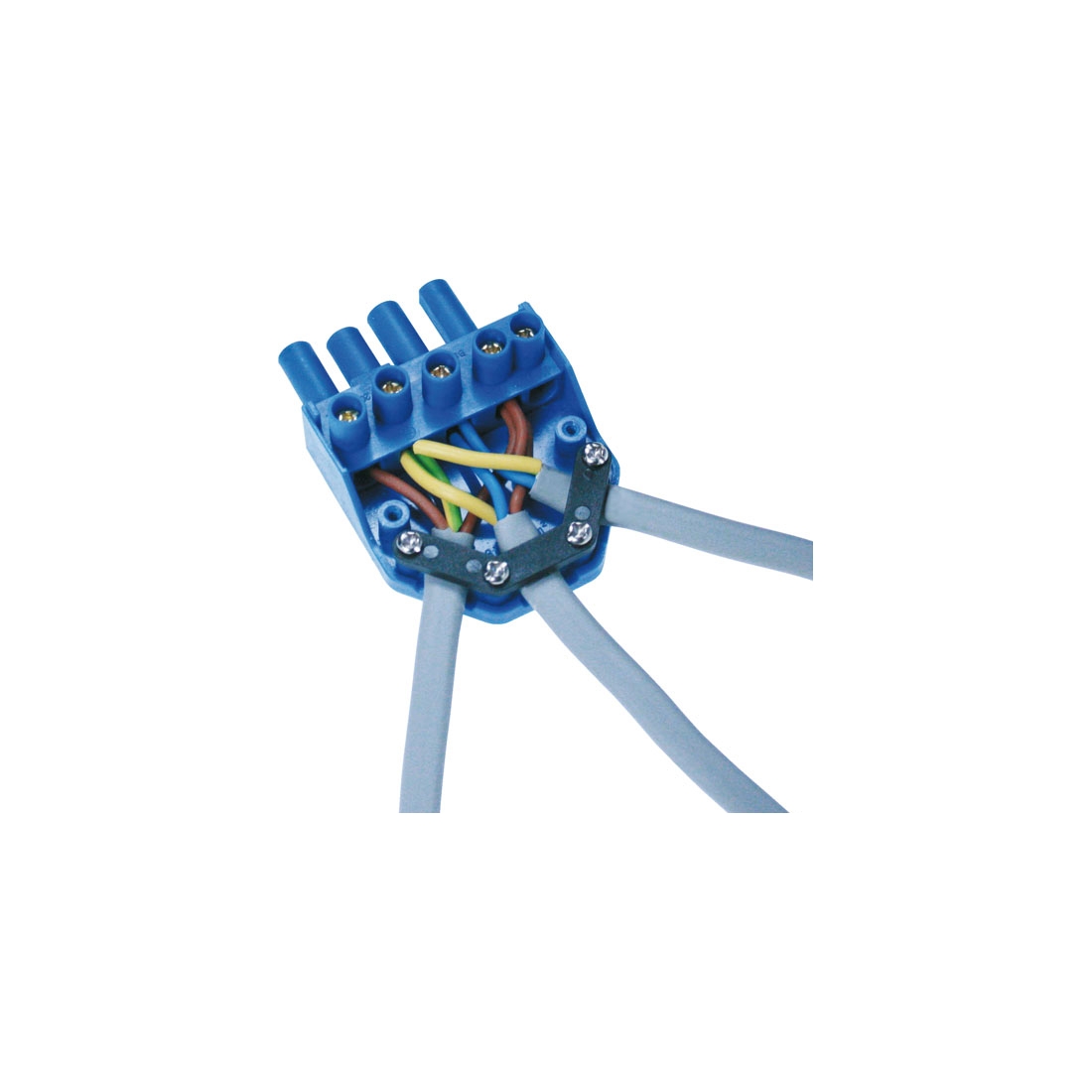

• The female socket works like a junction box taking up to three 2.5mm twin and earth type cables or smaller
• Female connector has live, earth, neutral and loop terminals
• Large terminals with easy access
• Terminal screws supplied raised
• Easy lock and release mechanism
• Fits through a 51mm aperture
• Suitable for use with dimmable lighting
• Standards: BS5733
• Can also be used in various indoor electrical applications other than lighting.
• Dimensions: Length: 105mm | Width: 50mm | Depth: 23mm
