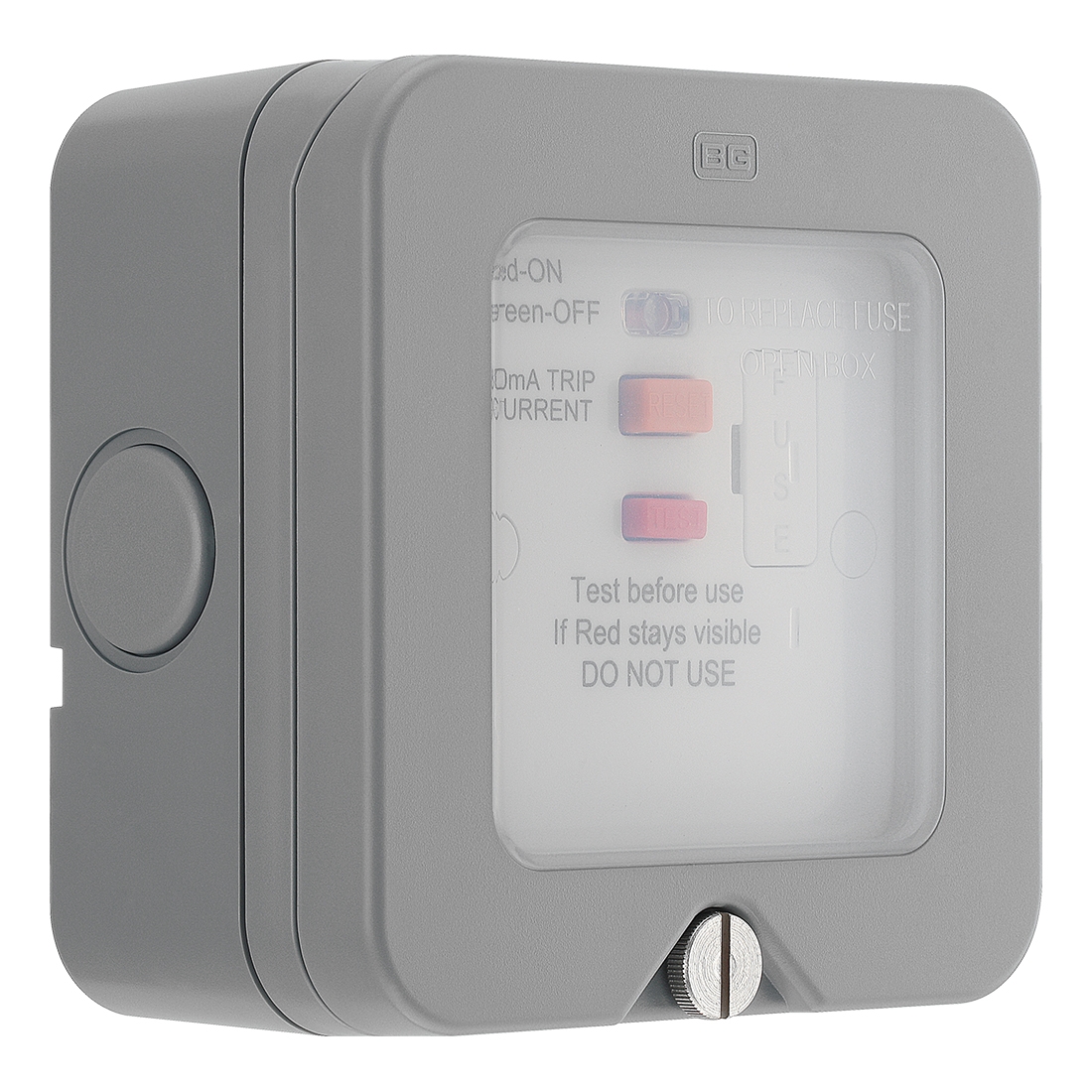

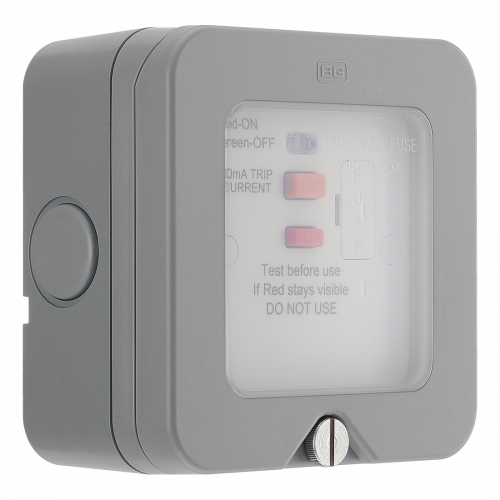

BG Electrical WP55ARCD Nexus Storm Grey Latching (Passive) RCD Unswitched Fused Connection Unit With Weatherproof Enclosure IP66 13A 30mA

BG Electrical WP55ARCD Description

The BG Electrical WP55ARCD Nexus Storm is a 13A RCD protected unswitched fused connection unit spur enclosed in grey IP66 weatherproof enclosure that protect the electricity supply from water and dust ingress in the most arduous of conditions.

Connection unit is the latching (passive) type with 30mA trip current, 40 milli-second trip speed. The RCD protection cuts off power safely and prevents electrocution in the event of a fault, the latching operation means the unit returns to the original state when power is resumed.

The simple and modern design features a handy clear cover, which securely clips into place to keep your fused connection unit dry and safe to use when using electrical appliances outdoors.

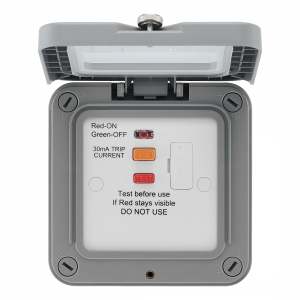

Its transparent cover will stay open to allow easy access, is durable and see-through allowing the status of switches to be seen. Features a flexible membrane to allow switching without opening the unit.

Supplied with angled colour coded terminals and captive screws within the unit make for quick and simple installation along with one 20mm/25mm cut out entry option on the rear face.

Features 5 versatile gland cable entry positions with M25 capability and easy push out removable blank plug design,

The IP66 rated enclosure is manufactured from high impact resistant polycarbonate that will maintain integrity over the products life whilst its cover will not crack or fade.

Ideal for permanent outdoor garden, workshop and commercial applications for example external lighting and water features.

BG Electrical WP55ARCD Features

• IP66 Rated
• Manufactured to BS7288.

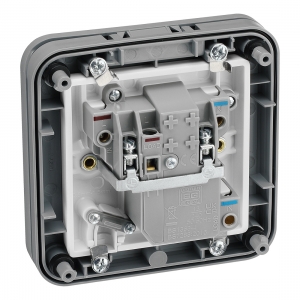

• Angled colour coded terminals with captive screws

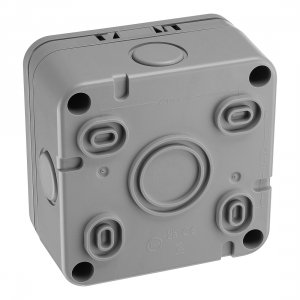

• 1 drill out entry 20/25mm in rear face
• Flexible membrane allows switching without opening unit
• Visible indication of power status through see through cover
• Terminal capacity 3 x 2.5mm2 , 2 x 4.0mm2 & 1 x 6.0mm2
• Weather & dust protection: High level of protection against ingress from water jets & dust
• The durable seals will maintain integrity over the product’s life
• RCD protection:: Cuts off power safely & prevents electrocution in event of a fault 30mA trip current & 40ms trip circuit operation
• Latching operation, socket returns to original state when power resumed
• Multiple gland entry positions: 5 versatile entry options with M25 capability with an easy push out blank plug design
• One cut out entry option on rear
• Robust construction: polycarbonate housing, high impact resistance, long lasting, will not crack or fade
