Timeguard TW1391 Weathersafe Grey 20A IP66 DP Switch With Neon

Timeguard TW1391 Description

The Timeguard TW1391 Weathersafe IP66 20 A DP Switch with Neon is part of Timeguard’s robust Weathersafe outdoor wiring accessory range, designed to perform in demanding environments where protection from dust and powerful water jets is essential. Featuring an impact-resistant polycarbonate housing and an IP66 rating, it’s ideal for power control in gardens, patios, workshops, garages and other exposed locations.

This double-pole switch disconnects both live and neutral for enhanced safety and features a dual-function neon indicator that works as a status indicator or locating light when the switch is on. Captive, backed-out terminals with large cable lead-ins and clear markings simplify installation and ensure secure wiring for professional use. The unit incorporates fast-fix screws, multiple drill-out cable entries on all sides and rear of the back box, and mounting points separated from the main wiring space to help maintain the IP66 rating during installation.

Backed by a 10-year manufacturer guarantee and complying with BS 60669-1 & BS EN 60529, the TW1391 delivers durable, safe switching where weather protection is a priority.

Timeguard TW1391 Features

• Weatherproof IP66 rating — protects against dust ingress and powerful water jets for outdoor use.
• 20 A double-pole switch — isolates both live and neutral conductors safely.
• Dual-function neon indicator — shows switch status or acts as a locating light.
• Grey impact-resistant polycarbonate housing — rugged construction for harsh environments.
• Captive and backed-out terminals with large cable lead-ins and clear markings — easier wiring.
• Fast-fix screws — simplifed frame installation and removal.
• Multiple drill-out cable entry points — flexible installation from all sides and rear.

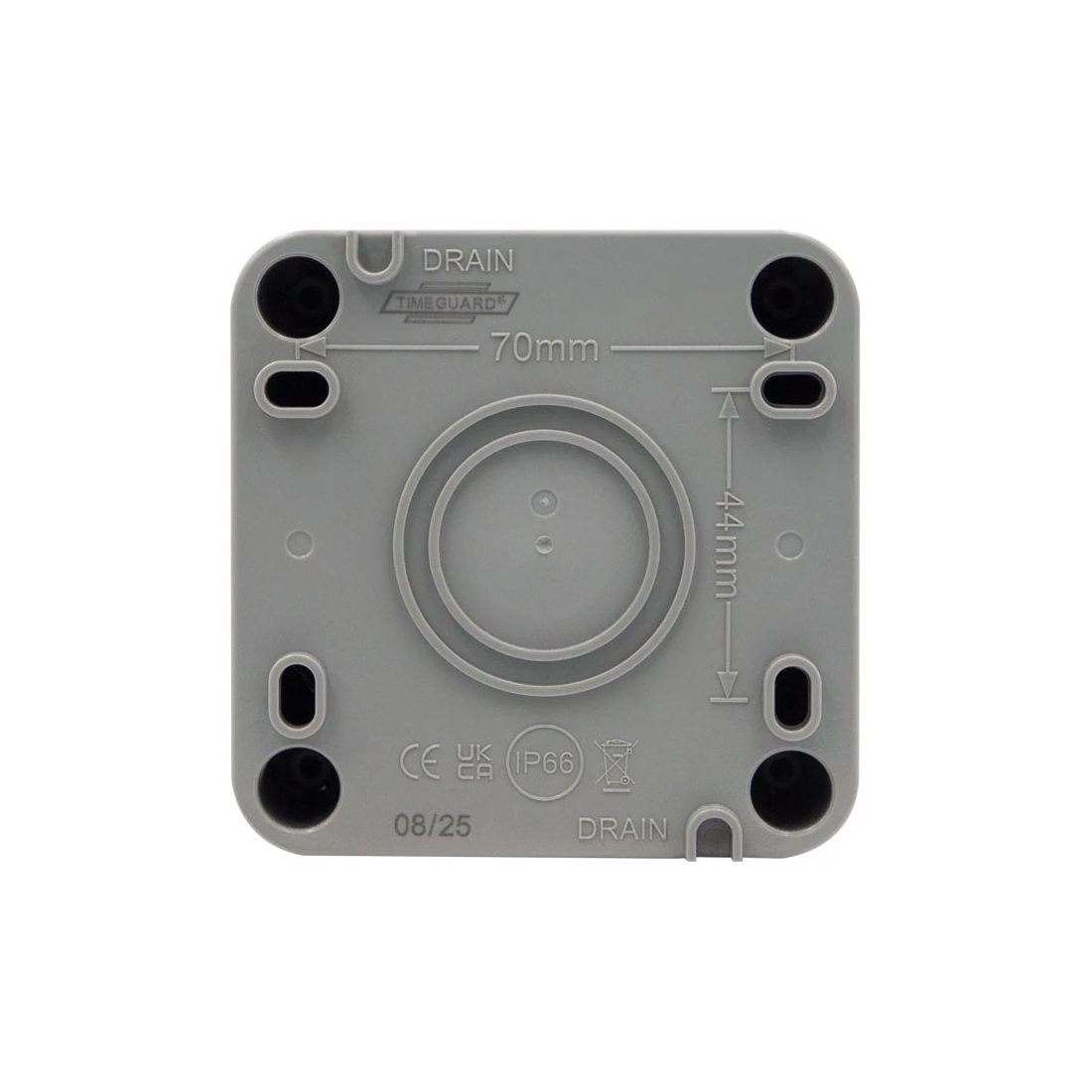

• Back box mounting points separated from wiring space — helps maintain IP66 protection.
• BS 60669-1 & BS EN 60529 compliant — built to recognised safety and ingress standards.
• 10-year manufacturer guarantee for long-term reliability.
• Typical electrical spec: ~20 A at 230 V AC (UK mains standard).
