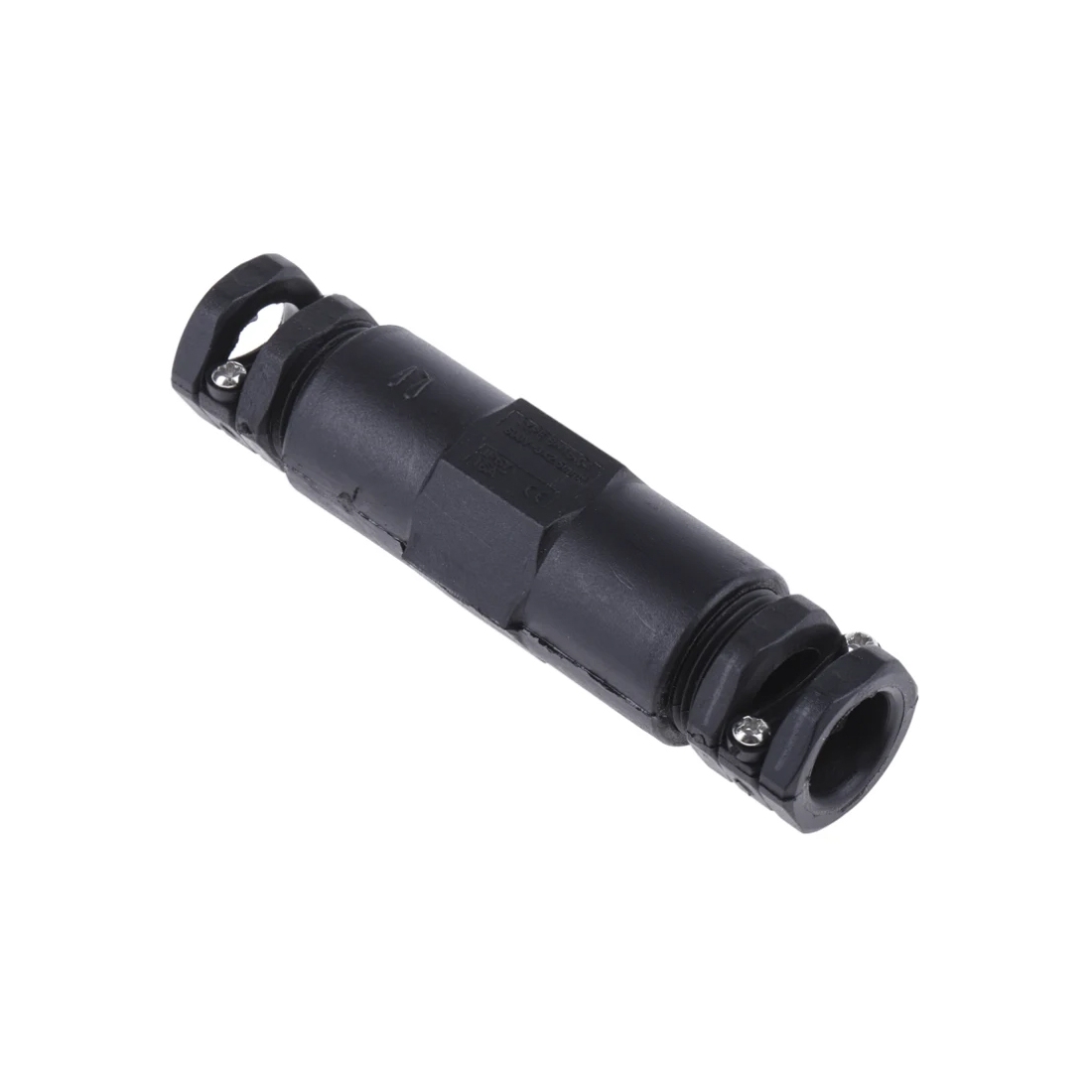

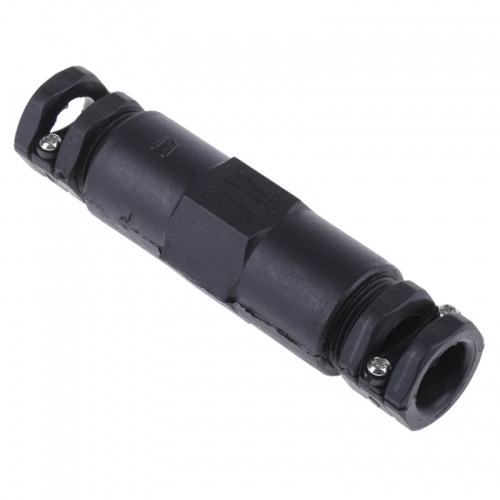

Greenbrook H65Z-C Black IP67 In-Line Watertight Cable Joint 3-Pole
The Greenbrook H65Z-C is a black 3-pole IP67 in-line cable connector for repairing or extending outdoor cables up to 3-core 2.5 mm².
Order code: H65Z-C
Manufacturer: Greenbrook Electrical
GTIN: 5012739065309
Notify me by email when product is available
Normally despatched
within 3-4 working days
within 3-4 working days
Greenbrook H65Z-C Description
The Greenbrook H65Z-C is a black 3-pole IP67 in-line cable connector for repairing or extending outdoor cables up to 3-core 2.5 mm².
Comprises a three-way screw terminal block which slides into a black nylon outer case. The IP67 protection is provided by a nitrile rubber seal and by a plated steel washer. A saddle clamp at either end provides strain relief and anti-rotation protection.
Electric voltage rating of 500VAC/VDC and current rating of 15A.
Suitable for use with pond pumps and appliances that you wish to be able to easily disconnect.
Greenbrook H65Z-C Features
- Greenbrook H65Z-C in-line watertight cable joint/connector
- Black nylon outer case
- For repairing or extending outdoor cables up to 3-core 2.5mm²
- Suitable for cables with a diameter between 6mm - 12.5mm
- IP67 rated - can be temporarily submersed in water
- Rating 15A 500VAC/VDC
- Nitrile rubber seal and plated steel washer
- Saddle clamp at either end provides strain relief and anti-rotation protection
- Screw termination
- Suitable for use with pond pumps and appliances that you wish to be able to easily disconnect
- Conforms to: BS 60998 & BS 5733
- Dimensions: Length: 120mm | Diameter: 32mm
