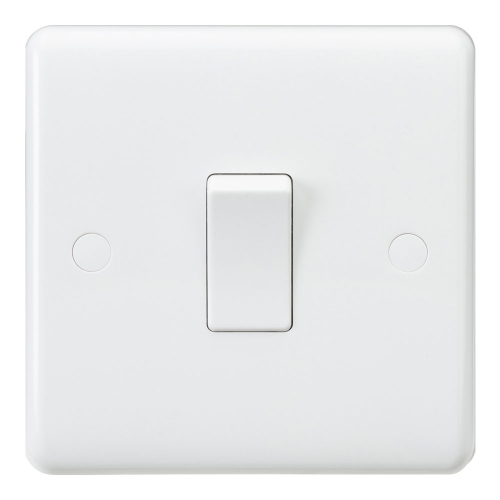

Knightsbridge CU1200 White Curved Edge 10Ax 1 Gang Intermediate Plateswitch
The Knightsbridge CU1200 is a 1 gang intermediate 10Ax plateswitch that forms part of the white moulded curved edge range of wiring accessories.
Order code: CU1200
Manufacturer: Knightsbridge
GTIN: 5055832971894
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Knightsbridge CU1200 Description
The Knightsbridge CU1200 is a 1 gang intermediate 10Ax plateswitch that forms part of the white moulded curved edge range of wiring accessories.
An intermediate switch is used when three switches control a single light.
Designed with a gently contoured 7mm plate with rounded edges with anti-microbial properties that suits a wide variety of settings. Includes screw cap covers for a neat final appearance with no visible screws.
Complies with the latest British Standards delivering a quality product that belies the selling price.
Knightsbridge CU1200 Features
- Knightsbridge CU1200 1 gang intermediate plateswitch
- Used when three switches control a single light.
- White moulded - manufactured from urea
- Gently contoured 7mm plate with rounded edges
- IP20 rated
- Rating: 10Ax 230V 50Hz
- Terminal capacity: 2 x 1.0mm² or 2 x 1.5mm²
- Min. mounting box depth: 16mm
- Matching screw cap covers
- Standards: EN 60669-1
- Dimensions: Height: 86mm | Width: 86mm | Depth: 7mm
