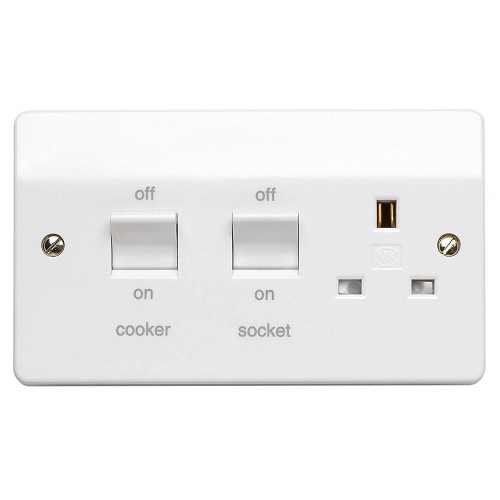

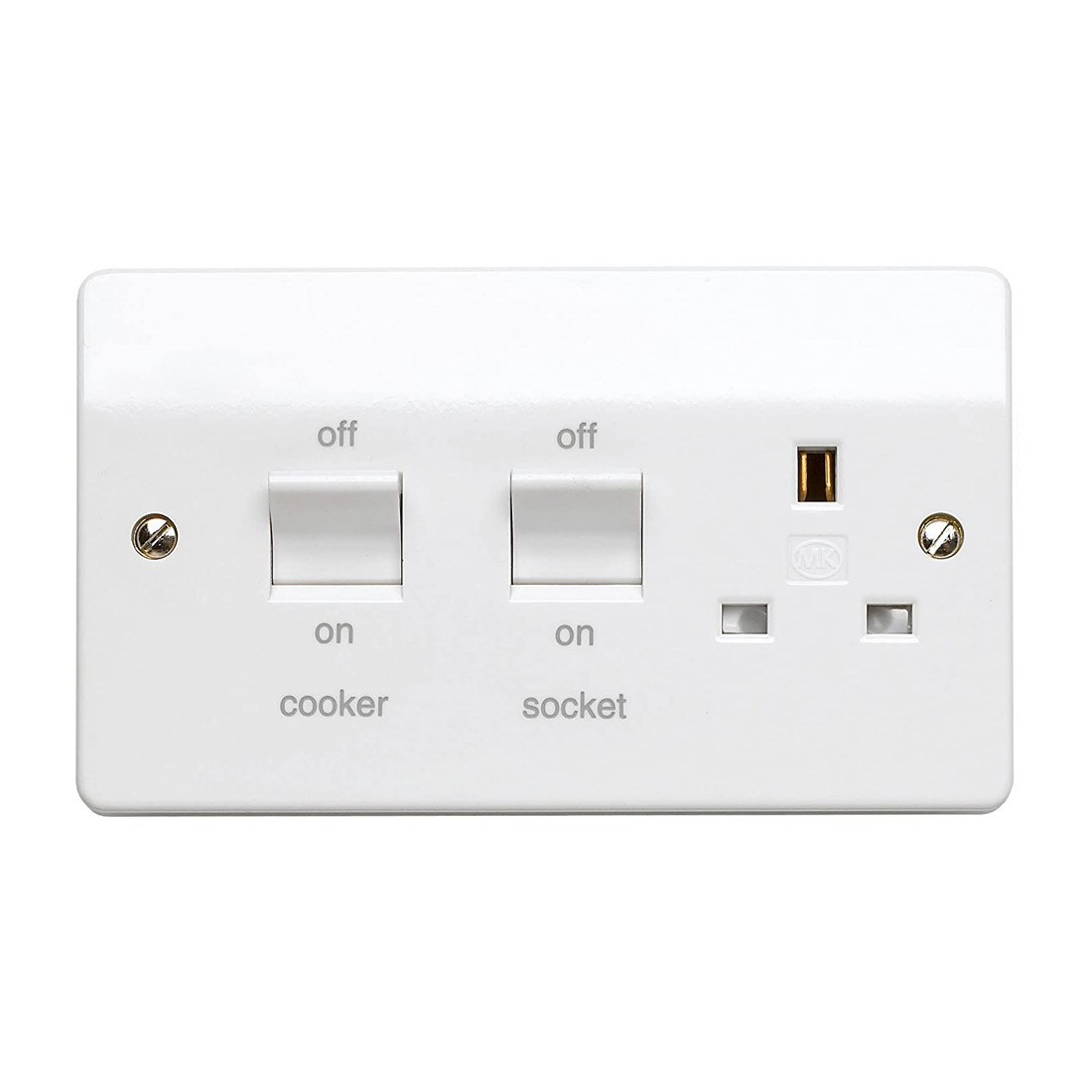

MK Electric K5060WHI Logic Plus White Moulded Double Pole Flush Mounting Cooker Control Unit With Main Isolation Switch & 13A Switchsocket 45A

MK Electric K5060WHI Description

The MK Electric Logic Plus K5060WHI is a white moulded flush mounting 45A double pole cooker control unit that is quick and easy to install and is specifically designed for the heavy current load applications associated with domestic cookers.

Supplied with 45A mains isolation switch (for cooker) and 13A switched socket with clearly labelled On/Off positions. Engraved with cooker and socket. Features positive double pole switching and toggle action switch and is fitted with a rotary operated shutter.

Has a raised edge slim profile faceplate with visible screws and requires a minimum 2 gang 47mm depth flush mounting box.

Designed to perfectly complement modern interiors, offering an unobtrusive and sophisticated look totally in keeping with today's design.

Conforms to BS4177:1992.

MK Electric K5060WHI Features

• MK Electric K5060WHI double pole cooker control switch 45A
• 45A 240V mains isolation switch (for cooker)
• 13A 240V Switched Socket
• Suitable for heavy current load applications associated with cookers
• Finish: white moulded
• Engraved with cooker and socket
• Clearly labelled On/Off positions
• Rotary operated shutter
• Positive switch action
• Positive double pole switching
• Toggle action switch
• IP Rating: IP2X
• Stylish modern contoured design
• Scratch resistant surface
• 3 pin operated safety shutter on switched socket
• Additional safety from neutral "make first", "break last" feature on switched socket
• Quick and easy to install
• Top access, angled terminals make wiring easier and quicker
• Secure cable and flexible cord connection
• Integral wired indicators save installation time
• Backed out and captive terminal screws
• Push-fit cord grips, for safer, quicker installation
• Printed terminal markings on grey rear mouldings for clearer identification
• Requires minimum 2 gang 47mm depth mounting boxes
• Terminal Capacity: 3 x 2.5mm² 3 x 4mm² 2 x 6mm²
• 20 year guarantee gives total peace of mind (10 years Electronic Devices)
• Conforms to Standards: BS4177:1992
• Dimensions: Width: 146mm | Height: 86mm | Fixing Centres: 120.6mm

MK Electric Logic Plus Range Overview

The MK Electric Logic Plus range offers unrivalled quality and reliability and provides the largest selection of wiring devices in any single range.

Smoothly formed front plates, rounded rocker switches and chamfered radius corners as standard.

A range of innovative design features to ensure a quick and easy installation come as standard across the range, including in-line terminals, funnel entrances to terminals, backed out and captive screws and clear terminal markings.

Manufactured from high grade thermoset material with antimicrobial properties making the range resistant to MRSA, E.Coli, Salmonella and Klebsiella Pneumoniae.

Technically, they exceed British Standard requirements with patented features that make these products the most advanced and safest available.
