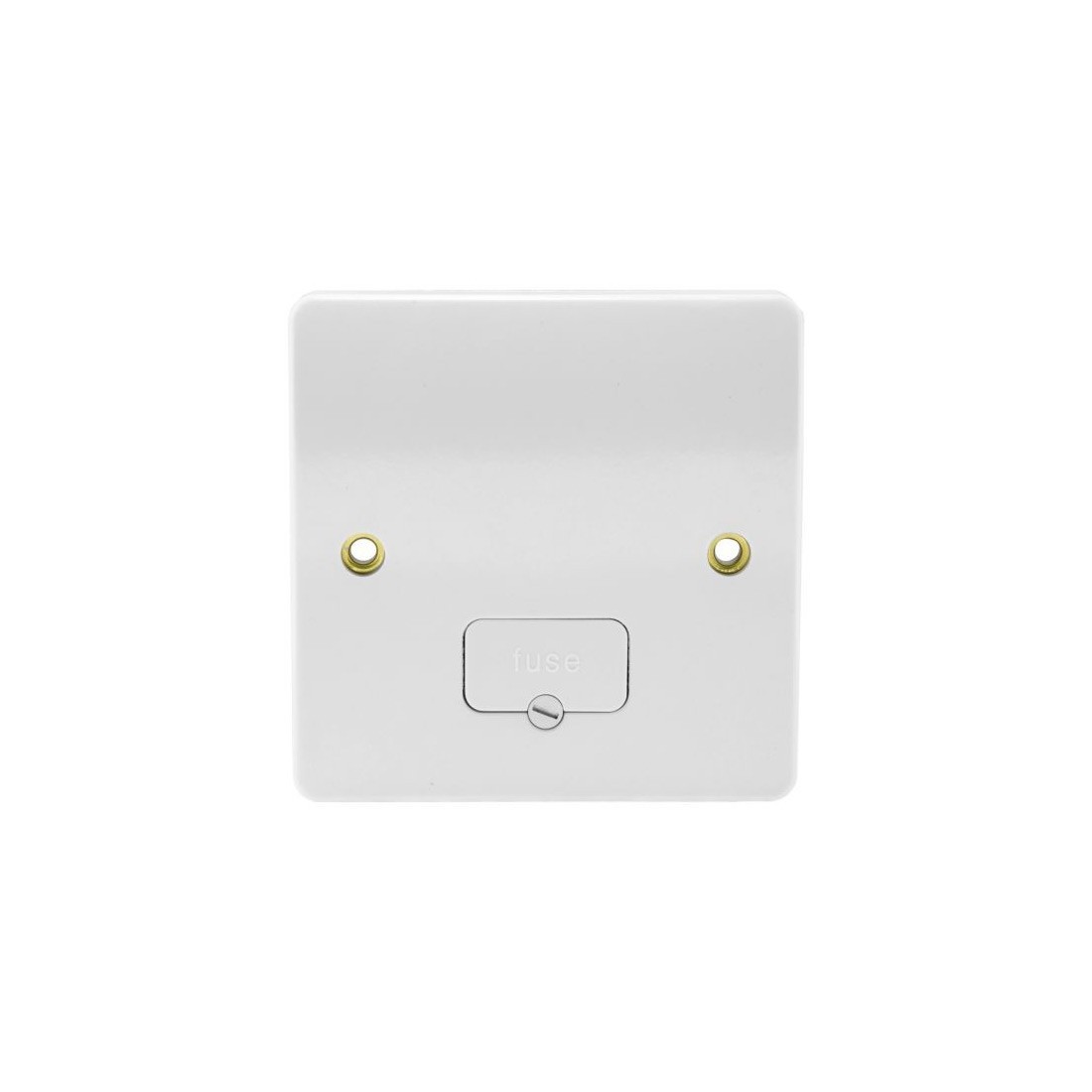

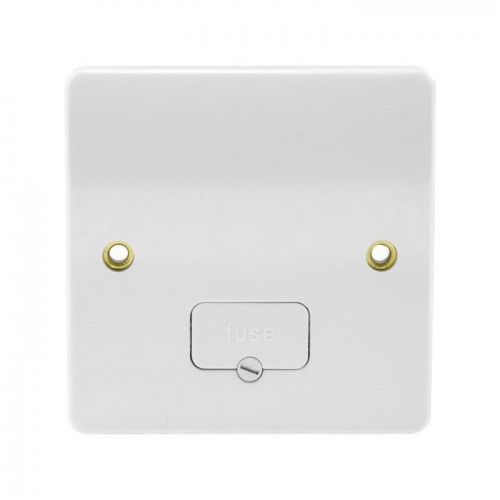

MK Electric K337WHI Logic Plus White Moulded Unswitched Fused Connection Unit With Base Flex Outlet 13A

MK Electric K337WHI Description

The MK Electric Logic Plus K337WHI is a white moulded 13A fused unswitched spur connection unit with base flex outlet that is quick and easy to install in both domestic and commercial installations. Fitted with a 13 amp fuse-link to BS 1362.

It is designed for the connection of refrigerators, water heaters, central heating boilers and other fixed appliances. Features a worm-drive operated fuse carrier for additional security which is lockable in an open position.

The base flex outlet securely grips cord without the need for screws, and blanking plugs are supplied where the bottom outlet is not required.

Has a raised edge slim profile faceplate with visible screws and requires a minimum 35mm depth mounting boxes (flush and surface mounting).

Designed to perfectly complement modern interiors, offering an unobtrusive and sophisticated look totally in keeping with today's design.

Conforms to BS1363 Part 4: 1995.

MK Electric K337WHI Features

• MK Electric K337WHI fused unswitched spur connection unit 13A
• Finish: white moulded
• Fitted with a 13amp fuse link to BS 1362
• Base flex outlet securely grips cord without the need for screws
• Blanking plugs are supplied where the bottom outlet is not required
• Captive Fuse Carrier Lockable in "Open" Position by removing the fuse and using K2000 fuse carrier padlock​
• IP Rating: IP2XD
• Stylish modern contoured design
• Scratch resistant surface
• Rating: 13A 240V
• Quick and easy to install
• Worm-Drive Operated Fuse Carrier
• Supply and Load Cables Can be Cut and Stripped to the Same Length
• Top access, angled terminals make wiring easier and quicker
• Integral wired indicators save installation time
• Backed out and captive terminal screws
• Base entry front plates are offer extra depth at 12.5mm deep
• Printed terminal markings on grey rear mouldings for clearer identification
• Requires minimum 35mm depth mounting boxes
• Terminal Capacity: 2 x 6mm² 3 x 4.0mm² 3 x 2.5mm²
• 20 year guarantee gives total peace of mind (10 years Electronic Devices)
• Conforms to Standards: BS 1363-4:1995
• Dimensions: Width: 86mm | Height: 86mm | Fixing Centres: 60.3mm

MK Electric Logic Plus Range Overview

The MK Electric Logic Plus range offers unrivalled quality and reliability and provides the largest selection of wiring devices in any single range.

Smoothly formed front plates, rounded rocker switches and chamfered radius corners as standard.

A range of innovative design features to ensure a quick and easy installation come as standard across the range, including in-line terminals, funnel entrances to terminals, backed out and captive screws and clear terminal markings.

Manufactured from high grade thermoset material with antimicrobial properties making the range resistant to MRSA, E.Coli, Salmonella and Klebsiella Pneumoniae.

Technically, they exceed British Standard requirements with patented features that make these products the most advanced and safest available.
