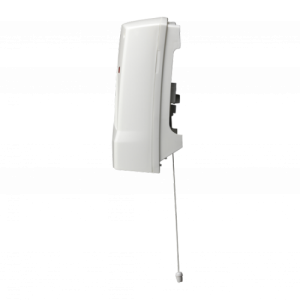

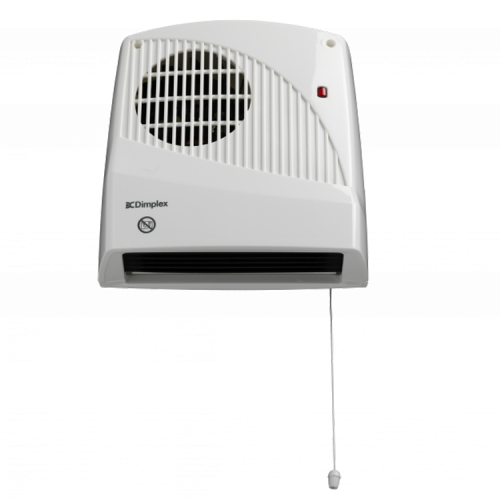

Dimplex FX20VE White Plastic Double Insulated Wall Mounting Downflow Heater With Selectable Heat Settings, Pullcord & 30 Minute Run-Back Timer IP22 2kW 240V Height: 242mm | Width: 229mm | Depth: 109mm

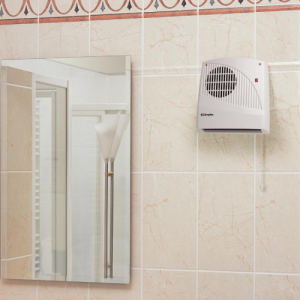

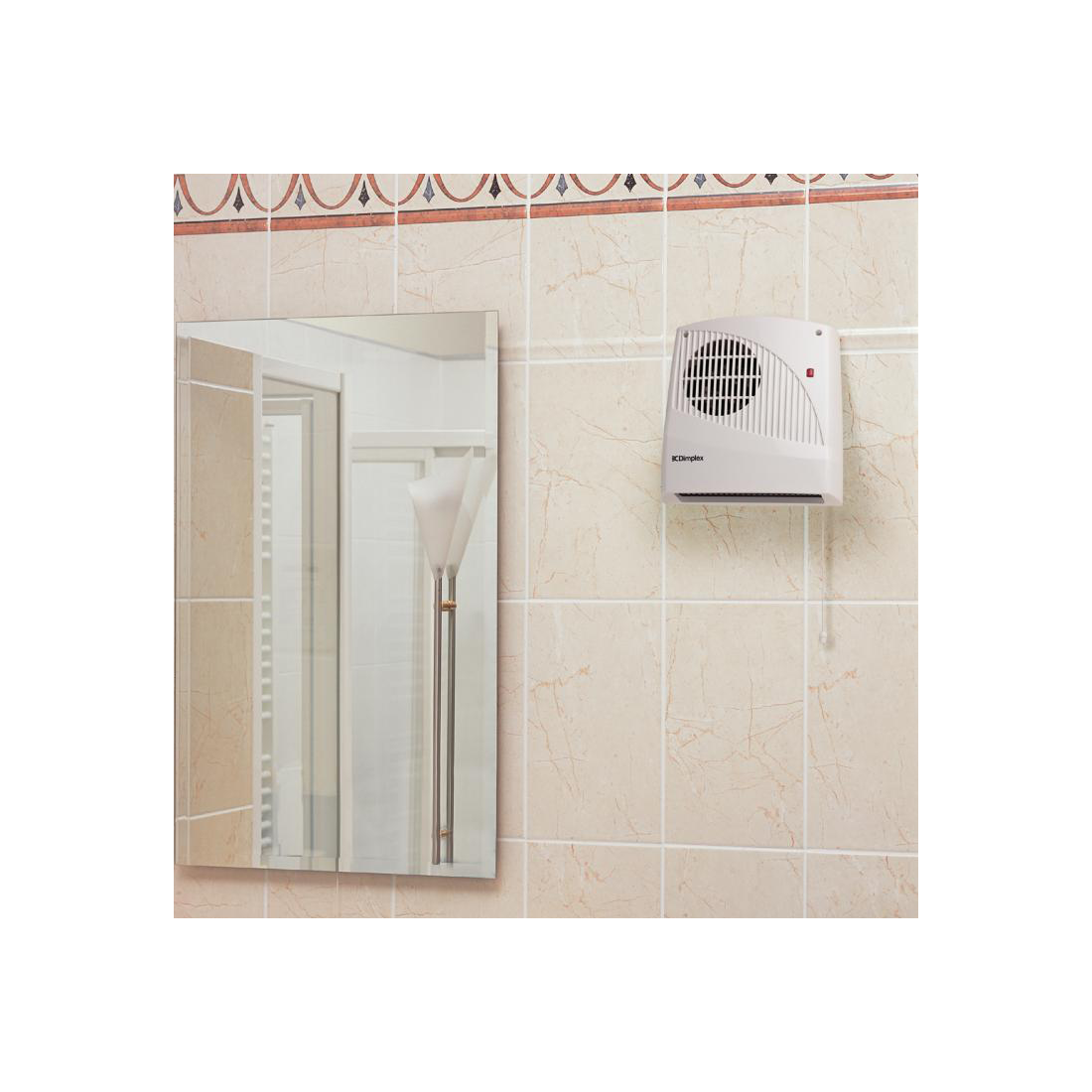

The Dimplex FX20VE is a white double insulated IP22 rated wall mounting downflow fan heater that is a popular choice for delivering instant heat heating for bathrooms and ensuites as well as kitchens.
within 1-2 working days
Dimplex FX20VE Description
The Dimplex FX20VE is a white double insulated IP22 rated wall mounting downflow fan heater that is a popular choice for delivering instant heat heating for bathrooms and ensuites as well as kitchens.
Powerful 2kW output ensures a fast warm up, although 1kW output is selectable on installation for smaller rooms. Operated by a simple pullcord with a visual on/off neon indicator. Simple to install and full safety protection. A factory set 30 minute energy saving run-back timer ensures the unit cannot be left switched on by mistake. The heater can be manually switched off before the time period expires by using the pullcord. Operates on a mains supply voltage rating of 230VAC.
Constructed from a double insulated plastic case, moulded in flame retardant self extinguishing grade nylon.
Identical footprint to older style FX20 models makes retro-fitting an older model is incredibly simple.
Dimplex FX20VE Features
- Dimplex FX20VE wall mounting downflow heater
- White double insulated plastic case
- Suitable for installation in bathrooms, ensuites and kitchens
- Designed for high level mounting
- Fire safe made from flame retardant self extinguishing grade nylon
- Rating: IP22
- Powerful, quiet and efficient heating solution
- 2kW maximum output
- 1kW output selectable on installation
- Pull cord operation
- Neon indicator
- Factory pre-set 30 minute run-back timer

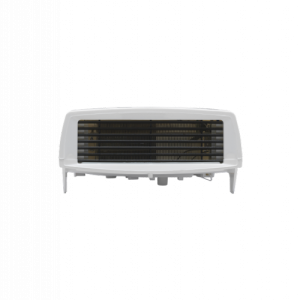

- Heat output from a grille at the base of the heater
- Heater can be manually switched off before time period expires
- Manually resettable thermal overload cut out and thermal fuse link provide double protection against overheating
- Identical footprint to current FX20 models, meaning that retro-fitting is incredibly simple
- Very easy to install
- All installations must be in accordance with current IEE wiring regulations
- Complies with Lot 20 of the ERP directive
- Recommended mounting height: 1.8m minimum
- Standards: ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007
- Dimensions: Height: 242mm | Width: 229mm | Depth: 109mm
