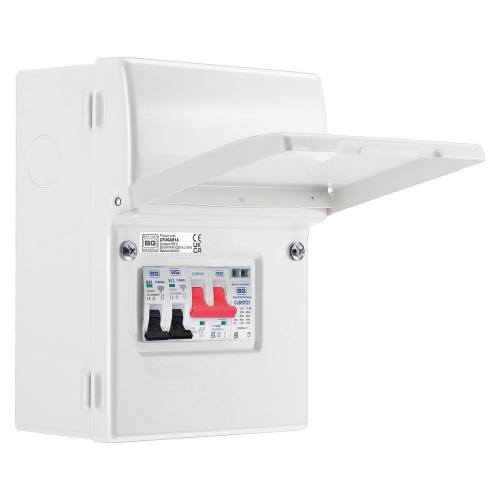

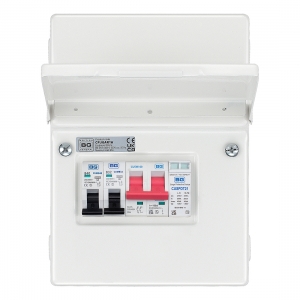

BG Electrical CFUEV2 18th Edition IP20 EV Consumer Unit With 100A Switch Isolator, Type 2 SPD & 40A MCB Grey

BG Electrical CFUEV2 Description

The BG Electrical CFUEV2 is a white IP20 rated pre-populated SPD metal consumer unit designed specifically for use with EV vehicle chargers to allow for internal wiring applications.

18th Edition Amendment 2 compliant. Pre-populated with 100A mains Switch Isolator, Type 2 SPD and 40A 6kA miniature circuit breaker. For use when the EV charger supply cable does not have mechanical protection.

The Type 2 surge protective device (SPD) provides superior protection against power surges and voltage spikes. This ensures that the vehicle is safe from any electrical damage while charging.

The IP20-rated all metal enclosure is robust and suitable for installation indoors.

Easy to install and use. The compact and lightweight design makes it a perfect fit for any garage or indoor space.

BG Electrical CFUEV2 Features

• BG Electrical CFUEV2 Pre-Populated SPD Consumer Unit
• 18th Edition Amendment 2 compliant
• Designed specifically for use with EV vehicle chargers
• Durable white metal enclosure
• IP20 rated suitable for internal use
• 100A mains Switch Isolator
• Type 2 SPD delivers protection against power surges and voltage spikes
• 40A 6kA MCB
• DIN Rail Supplied
• Quick and easy installation
• Top, Bottom, Side & Rear Cable Entry Points
• For use when the EV charger supply cable does not have mechanical protection
• Dimensions: Height: 243.5mm | Width: 167.5mm | Depth: 100mm
