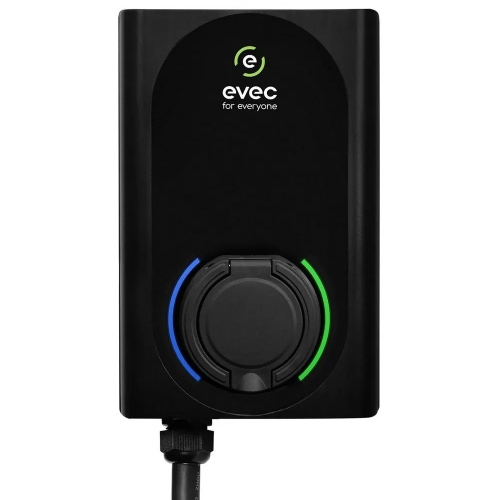

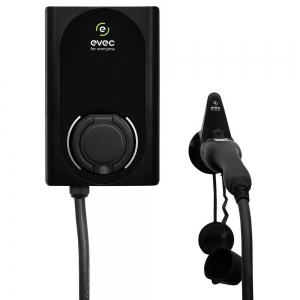

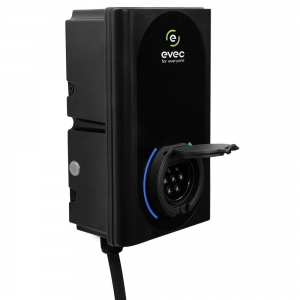

Evec EDC01 PowerPair Black 7kW 32A 1Ph Tethered Type2 Smart Dual EV Wall Charger With Load Balancing & 5m Type 2 Lead + Plug IP54 Black

Evec EDC01 Description

The Evec EDC01 PowerPair is an innovative dual wall-mounted EV charger that is the ideal solution for households or businesses with multiple electric vehicles. Combining a 5 m tethered Type 2 cable and a universal socket, this smart 7.4 kW charger offers unbeatable flexibility.

The most affordable dual charger in the UK, the EDC01 can charge one vehicle at full power or intelligently split its output to charge two vehicles simultaneously from a single charger.

Features both a 5-meter tethered Type 2 cable and an untethered universal Type 2 socket. This unique "PowerPair" design provides maximum flexibility, allowing you to charge two EVs at the same time.

The charger has a combined total output of 7.4kW. When only one vehicle is plugged in, it receives the full 7.4kW charge. When two cars are connected, the power is intelligently split, providing a consistent 3.7kW to each vehicle.

Connect to the EVEC App via Wi-Fi or Bluetooth to manage the charging experience. Set schedules to take advantage of off-peak electricity tariffs, monitor charging status, track energy usage, and even enable "pay-to-charge" options via OCPP 1.6J.

The EDC01 includes integrated PEN protection, over-current protection, and residual current protection (RCD) as standard. This eliminates the need for an additional earth rod, simplifying and reducing the cost of installation while ensuring maximum safety.

Dynamic Load Balancing, the included CT clamp allows the charger to monitor the home or business power consumption and automatically adjust the charging rate to prevent overloading the electrical supply.

The robust IP54 rating and a fire-retardant, corrosion-resistant casing ensure the EDC01 is designed to cope in all weather conditions. The compact design is discreet and suitable for both indoor and outdoor installation.

Evec EDC01 Features

• Dual charging flexibility - 7.4kW output to charge one vehicle or split to 3.7kW each for simultaneous dual charging
• Combined tethered cable and universal socket - Comes with a 5m Type 2 cable plus a universal socket for maximum versatility
• Smart charging capabilities - Supports full OCPP 1.6J, load balancing, and remote control via the EVEC App
• Wi-Fi | Bluetooth | Ethernet connectivity
• Advanced safety systems - Built-in PEN fault protection, 30mA Type A + 6mA DC RCD, and over-current safeguards
• LED status indicators - Clear lights indicate charging mode and any error messages at a glance
• Durable and weatherproof design - IP54-rated housing that’s corrosion-resistant and fire-retardant
• Suitable for indoor and outdoor installation
• Compact and cost-effective - Sleek wall-mounted unit that’s affordable
• Certifications & warranty - CE and UKCA approved, backed by a 3-year manufacturer warranty

Evec EDC01 Benefits

• Unbeatable Affordability -  the most cost-effective dual charger on the market
• Delivers the functionality of two chargers for a fraction of the price
• Efficient multi-vehicle support — Ideal for households or businesses charging multiple EVs
• Seamless plug-and-play experience — Tethered cable plus socket offers total convenience
• Smart energy management — Schedule and monitor charging to reduce costs and conserve energy
• Save Money on Running Costs: Use the Evec app to schedule charging during off-peak periods
• Secure charging you can trust — Advanced safety features and certifications mean peace of mind
• Built tough for real-world conditions — IP54-rated and robust design for reliable performance
• Future-ready infrastructure — OCPP support ensures adaptability with evolving EV networks
• Simplified Installation: The built-in PEN fault detection and load balancing make installation quicker, safer, and more affordable for qualified electricians
