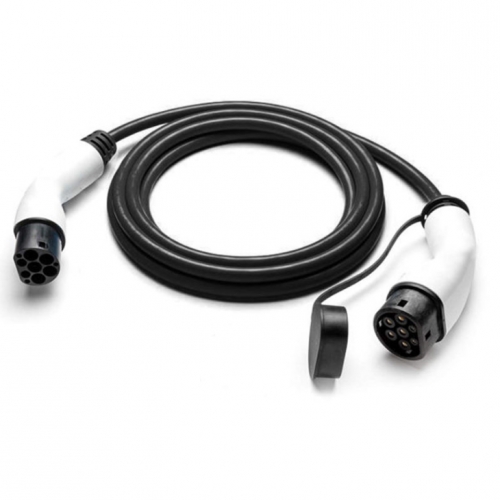

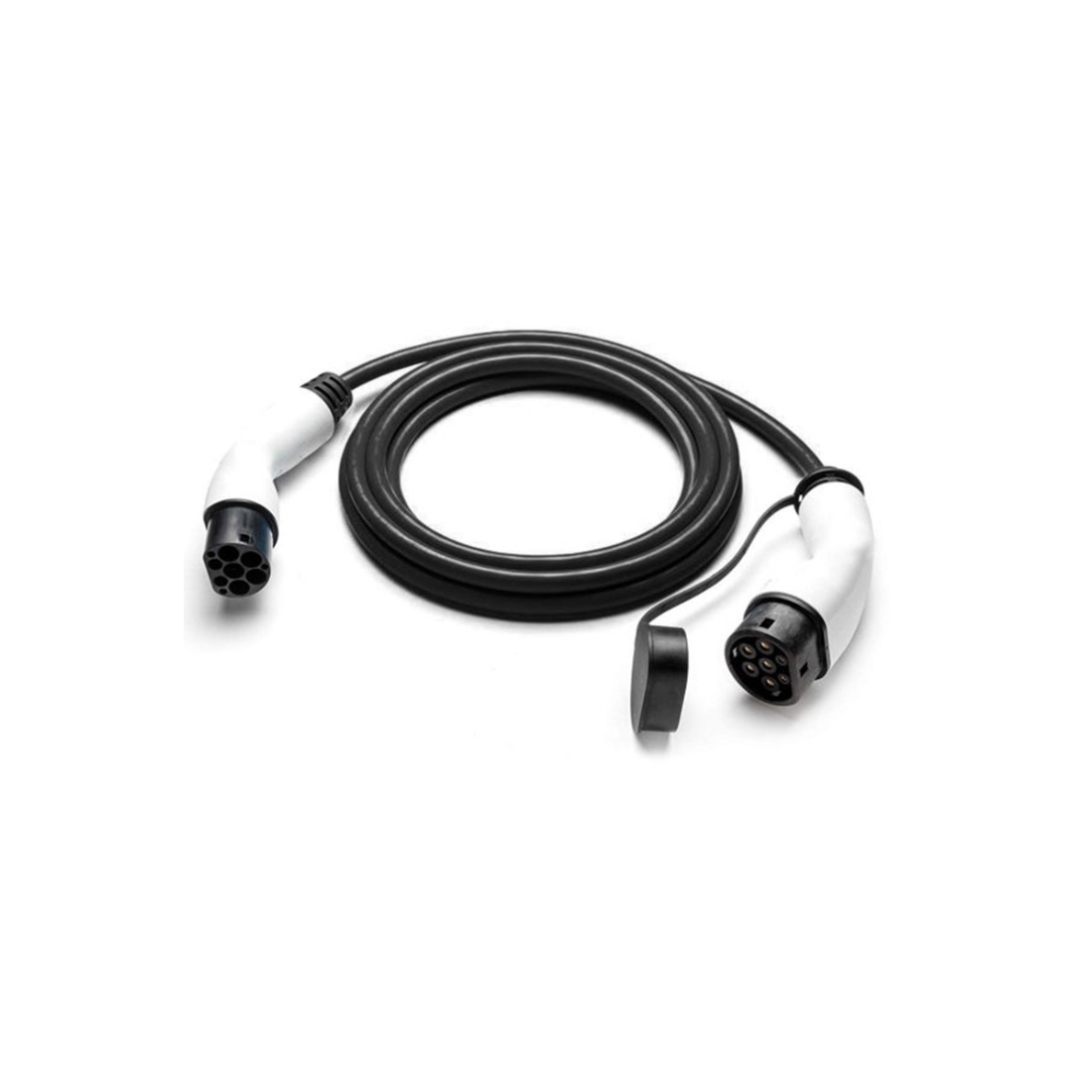

Project-EV EV-22-32A-2-2-7.5M Black 7.5m 32A 7.5m 3Ph Charger Cable With 2 x Type2 Sockets

The Project EV EV-22-32A-2-2-7.5M is a premium 7.5 metre high-performance Type2 to Type2 EV charging cable engineered to deliver 22kW 32A three-phase ultra-fast charging for electric vehicles. Robust, flame-retardant construction ensures a secure and efficient connection every single time.

Order code: EV-22-32A-2-2-7.5M
Manufacturer: Project EV
GTIN: 5060531482077

£ 201.46 incl. VAT
£ 167.88 excl. VAT

Trade Price: £ 23.75
You SAVE
-£ 144.13 or -607%
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Project EV EV-22-32A-2-2-7.5M Description

The Project EV EV-22-32A-2-2-7.5M is a premium 7.5 metre high-performance Type2 to Type2 EV charging cable engineered to deliver 22kW 32A three-phase ultra-fast charging for electric vehicles. Robust, flame-retardant construction ensures a secure and efficient connection every single time.

Optimised for 22kW 32A three-phase power enabling rapid charging.

The standard Type2 connectors ensure the cable is compatible with all modern EVs and public charging points.

Generous 7.5-metre cable length offers flexibility and ease of use.

Manufactured from high-quality, flame-retardant thermoplastic materials, this cable is designed to withstand a two-tonne vehicle run-over pressure.

IP55 rating provides protection against dust and water jets.

The comfortable and secure grip ensures effortless plugging and unplugging.

The cable's flexibility makes it easy to coil and store in the boot.

The cable is certified to IEC 62196-2 standards, guaranteeing a high level of safety and reliability.

Project EV EV-22-32A-2-2-7.5M Features

  • Ultra-fast 22kW 32A three-phase charging
  • Type2 to Type2 compatibility
  • 7.5m cable length - provides excellent reach and flexibility
  • IP55-rated for outdoor use and resistant to wear

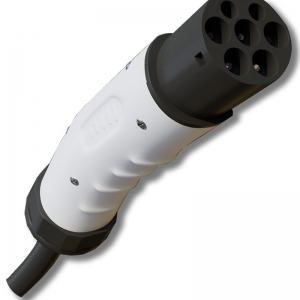

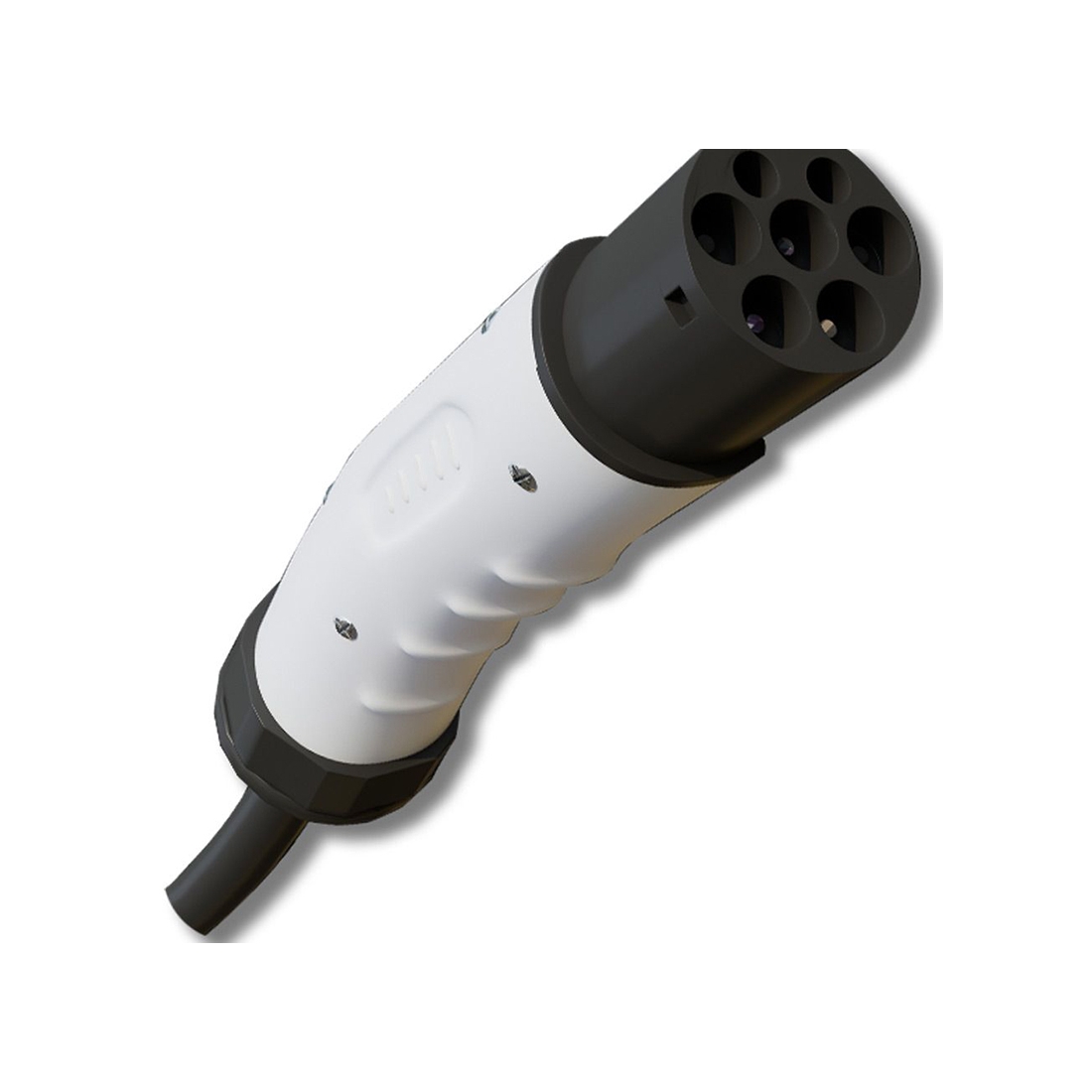

  • Ergonomic, easy-to-use connectors
  • Universal EV compatibility
  • Built to EU safety standards with reinforced insulation and heat resistance.
  • Lightweight portable & convenient design

ELECTRICAL PERFORMANCE
Rated current: 16A or 32A
Rated voltage: 250V/415V
Insulation resistance: >1000MΩ(DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5mΩmax.
Coupled insertion force: >45N<80N
Operating temperature: -30ºC~+50ºC

MECHANICAL
Mechanical life: No-load plug in / pull out >10,000 times
Impact of external force: Can afford 1m drop and 2t vehicle run over pressure

MATERIAL
Shell Colour: White/black
Cable Colour: Black
Shell Material: Thermoplastics, flame retardant grade UL94-V0
Contact bush: Copper alloy, silver plating
Pin: Copper alloy, silver & thermoplastics on top
