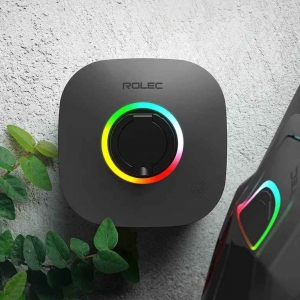

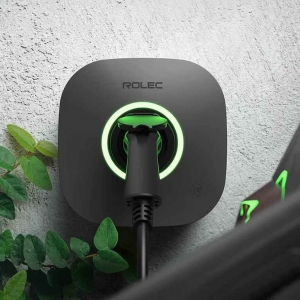

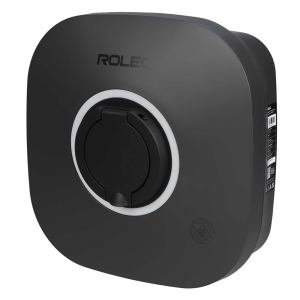

Rolec ROLEC5011 EVO 7.4kW 1Ph IP54 Smart Untethered Mode 3 EV Wall Charger With Ehernet + 4G + Wi-Fi & RFID - Black

Rolec ROLEC5011 Description

The EVO supports solar integration, which can allocate any available surplus solar power to the vehicle for a 100% renewable, cost-free charge.
With the EVO app, users have full control of their charger including the ability to set charging schedules and integrate with smart tariffs to save on off-peak rates. Alternatively, users can connect their charger to any OCPP app of their choice.
Available in both single phase and three phase models, providing up to 22kW superfast charging. EVO is compatible with all EVs & PHEVs, charging at the fastest speed possible, ensuring vehicles are ready to go in no time.
Installers can easily configure and test the EVO, and any other chargepoint in the ROLEC EV product range, by using the ROLEC CONNECT app. Simply follow the step-by-step process.
EVO offers three charging modes;
ECO uses solar by day and scheduled grid power at night for cheaper charging
ECO+ uses only surplus solar energy to charge
Charge Now offers a maximum charge at any time

Rolec ROLEC5011 Features

• Plug & go, mobile app or RFID controlled charging
• Universal charging socket
• Up to 7.4kW or 22kW charging output
• Free ROLEC EVO mobile app
• 2x EVO RFID charging cards included
• Scheduled / off-peak charging
• Surplus solar charging compatible
• PME fault detection* (no earth rod required)
• Dynamic load balancing (CT clamp & cable included**)
• Three to Single Phase switching (22kW model only)
• OCPP 1.6 compliant
• AC 30mA Type-A and DC 6mA protection
• 4G (22kW model only) / Wi-Fi / Ethernet connectivity
• Strong and durable IP54 / IK08 rated
• Corrosion and fire resistant
• Wall or post mounting options
• Funding, operation, & maintenance options
• 5 Year warranty

*Selectable on installation of 22kW Three Phase model
**Single Phase models only, Three Phase models require optional CT kit

User Interface

• Mobile app
• NFC/RFID reader (MIFARE ISO/IEC 14443 A)
• Plug & go
• Solar modes – Eco+ (solar surplus only), Eco (solar & grid)
• RGB LED status indicator halo

Connection Type: 1x Universal charging socket
AC Charging Output(s): Up to 7.4kW (32A)
Input Supply(s): 1x Up to 32A Single Phase* 230V AC (±10 %) 50/60Hz
Charge Protocol: Mode 3 (IEC 61851-1)
Cable Terminals: 3x 50mm 1P + N + E
Dimensions: 260 x 260 x 112mm
