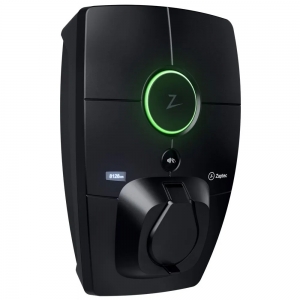

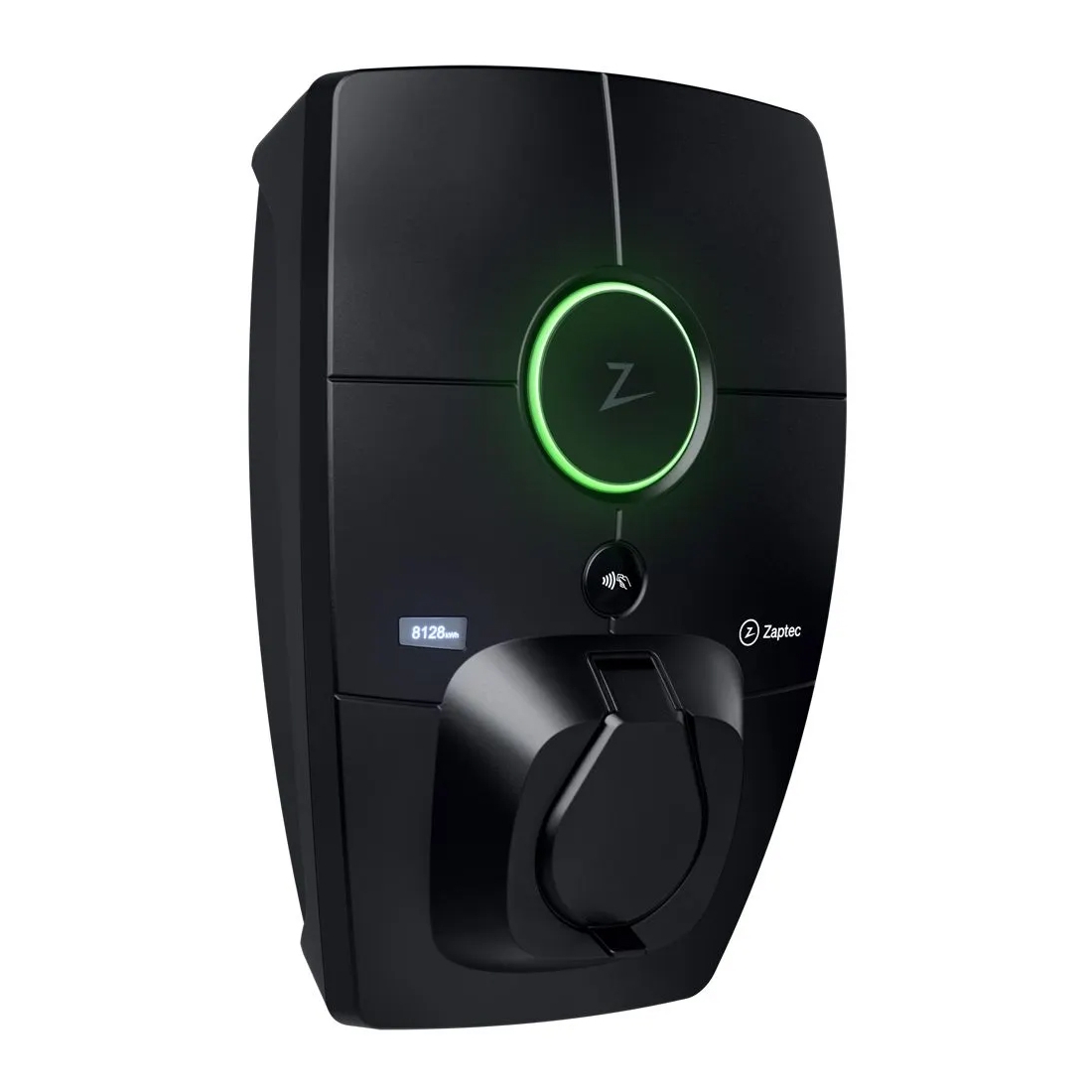

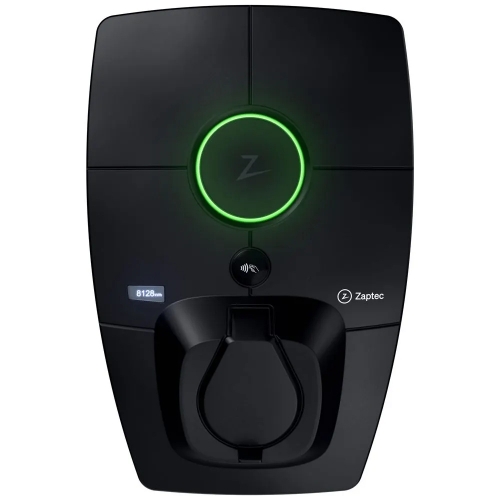

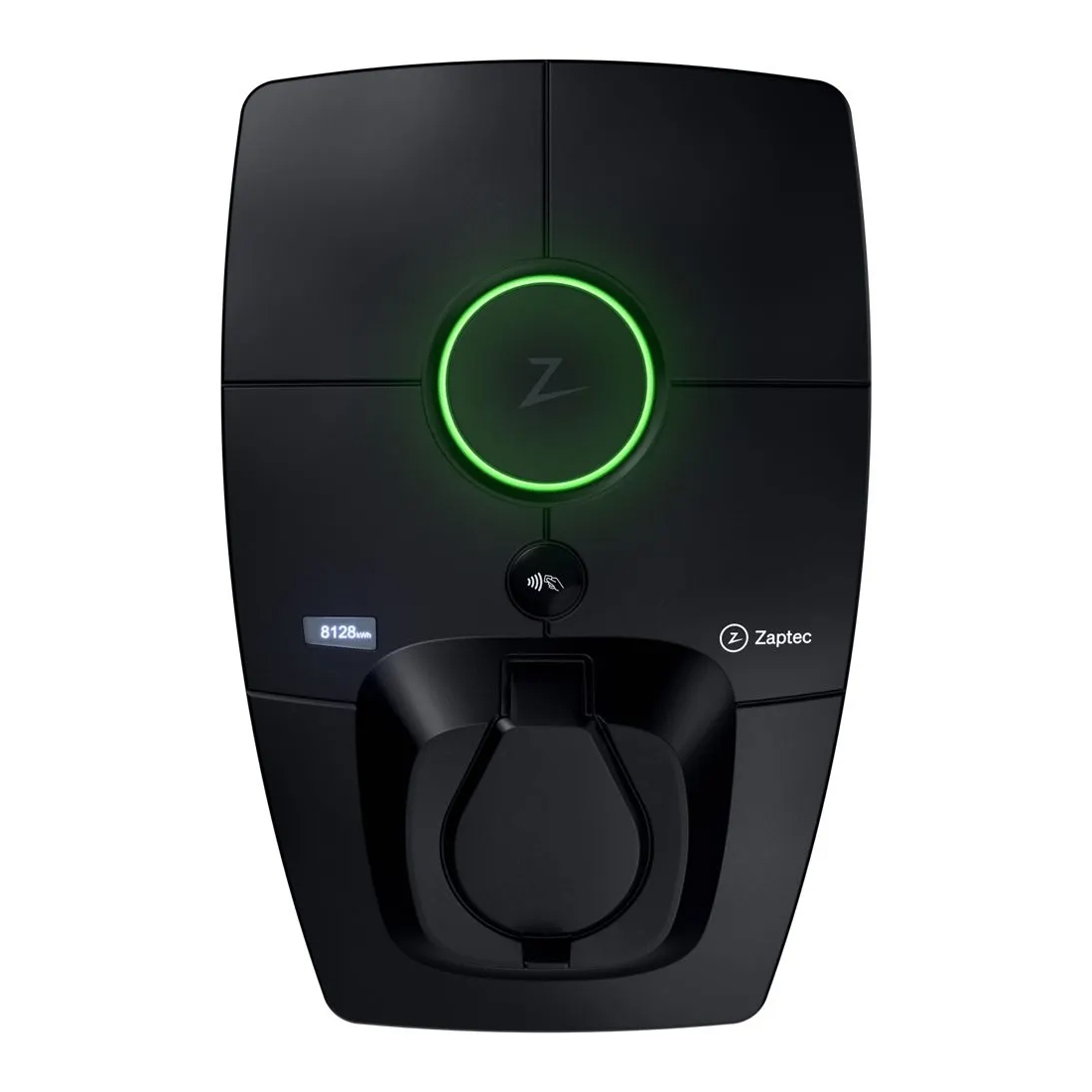

Zaptec 900-00021 Pro Multiphase 7kW/22kW 32A 1Ph/3Ph Untethered Type2 Smart EV Wall Charger With Wi-Fi + 4G & Integrated MID Meter IP54 Asphalt Black

Zaptec 900-00021 Description

The Zaptec Pro 900-00021 is a high-performance, MID-certified 22kW Multiphase intelligent untethered EV charger for commercial and public spaces. Equipped with smart connectivity (Wi-Fi, LTE-M, PLC) and full OCPP 1.6J support, it provides dynamic load and phase balancing, RFID access, and ISO 15118 “Plug & Charge” compatibility—making it a future-proof solution for scalable EV infrastructure.

Harnesses the power of a three-phase power supply to deliver a rapid charging rate of up to 22kW. The charger automatically adjusts power down to 7.4kW on a single-phase supply and between one-phase and three-phase charging for optimal efficiency.

The integrated, MID-certified energy meter ensures highly accurate and legally compliant energy tracking. This is an essential feature for transparent billing, easy reimbursement for company cars, and managing charging costs in a multi-user environment.

Patented Dynamic Load & Phase Balancing intelligently distributes power among all connected chargers (up to 1,000 units on a single circuit), ensuring efficient power use and preventing circuit overloads. Eliminates the need for expensive electrical upgrades, making it an incredibly cost-effective solution for large installations.

With a universal Type2 socket, the Zaptec Pro is compatible with all EVs and PHEVs. The innovative design also allows you to permanently lock a Type 2 cable into the unit for the convenience of a tethered charger.

Stay connected and in control with built-in Wi-Fi and a free lifetime 4G LTE-M eSIM. Manage your charging stations, track usage per user, and perform over-the-air firmware updates effortlessly through the free Zaptec Portal.

The Zaptec Pro boasts an IP54 weather rating and a high IK10 impact rating, making it resistant to dust, water, and vandalism.

The charger includes an integrated Type B RCD for earth fault protection, built-in 3x40A MCBs, and multiple temperature sensors, all of which work together to ensure the safest possible charging experience.

OCPP 1.6J Compliant- seamlessly integrates with any compliant management and payment system, making it the perfect choice for commercial "pay-to-charge" applications.

Zaptec 900-00021 Features

• Fast charging multiphase charging for varied user needs - 7.4kW on single-phase or 22kW on three-phase systems
• MID-Class B Energy Meter - built-in, certified meter ensures accurate energy usage tracking and compliant billing
• Patented Dynamic Load & Phase Management - Optimises power distribution across multiple chargers to prevent overloads and fuse trips
• Scalable and Modular Design - Built to manage anywhere from a single charger to hundreds, with centralized control via Zaptec Portal
• Full Smart Connectivity - Equipped with Wi-Fi, 4G LTE-M, and Powerline (PLC) communications for reliable updates and control
• Robust Safety & Compliance - Includes Type B RCD, fused protection, lockable Type2 socket, and secure front cover requiring a tool to remove
• Future-Proof Features - Enables RFID access, “Plug & Charge” via ISO 15118, and over-the-air updates to keep up with emerging EV technologies
• Rugged Build - Designed to withstand harsh environments: IP54 and IK10 rated, UV-resistant, and operational from –30°C to +40°C
• Backed by a 5-year parts and labour guarantee—ideal for long-term commercial use

Zaptec 900-00021 Benefits

• Fast multivehicle charging to reduce turnaround times
• Accurate billing & monitoring with certified meter and smart software
• Efficient power usage across installations with dynamic balancing
• Easily expandable infrastructure that supports growing demand
• Secure, future-ready charging with smart access and OTA updates
• Solid and weather-proof design for outdoor or heavy-duty use
• Long-term cost savings through durable engineering and extended warranty
