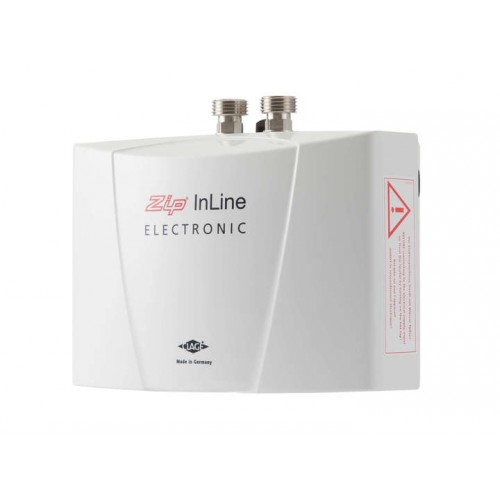

Zip ES6 White Plastic Electronic Instantaneous In Line Water Heater 5.5kW 240V
The Zip InLine ES6 compact electronic instantaneous water heater provides energy efficient hot water for handwashing to a single outlet in areas where space is limited. This innovatively designed appliance heats the water automatically as it flows through, without wasting energy in standby operation. Heating power is switched on automatically once the minimum flow rate is exceeded. The outlet temperature is factory set to 38°C but can be adjusted inside the unit at time of installation between 30°C and 45°C.
Order code: ES6
Manufacturer: Zip Water Heaters
GTIN: 5036764424115
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Zip ES6 Water Heaters Description
The Zip ES6 Instantaneous In Line Water Heater is designed to provide hot water for handwash in areas where space is limited. Its highly energy efficient bare-wire heating system provides an economic water supply to a single outlet. It has been innovatively designed to heat water automatically as it flows through, without wasting energy in standby operation.
The Zip ES6 has a smart and compact design and employs bare-wire heating technology, ensuring a rapid heat-up and swift temperature adjustment whenever you need it. It heats only the water drawn off, eliminating standing heat loss for maximum efficiency.
Equipped with sophisticated electronics, ZIP ES6 water heater adapts power application to compensate for variations in inlet pressure and temperature, guaranteeing a consistent performance. The outlet temperature comes factory-set at 38°C, providing a comfortable experience, and can be further adjusted by installers within the range of 30°C to 45°C. The double pole thermal cut-out protection adds an extra layer of safety, ensuring worry-free use.
For correct operation, it's essential to use the special tap nozzle supplied with the unit, specifically designed for M22/24 taps. The ZIP ES6 is complying with IP24 standards and suitable for installation in Zone 1. To minimise heat loss, the unit should be installed as close as possible to the outlet.
Zip InLine ES6 Features
- Power rating (kW): 5.5
- Voltage Rating (V): 230
- Dimensions (mm): W186 D87 H135
- Weight (KG): 2
- Colour: white
- Control: electronic
- Inlet pipe 1/2"bsp
- Heating system: Bare-wire heating system for fast response.
- IP rating - IP 24.
- Case: Impact resistant plastic.
- Approvals: WRAS, VDE, CE endorsed.
- Warranty: One-year on site parts and labour.
- Safe operation without the need for a thermostatic blending valve
- Double pole thermal cut-out protection
- Factory set flow rate 3 litres/min @ 38°C
- Temperature setting: Temperature and flow adjustable at time of installation.
Plumbing
• The appliance is intended for connection to the mains water supply.
• The appliance may be used as an unvented installation (as shown in the diagram below) or as a vented installation as described in the fitting instructions.
Electrical
• The appliance must be earthed and connected to the mains supply by means of permanent wiring through suitable isolation having a contact separation of 3mm in all poles and may only be operated if measures have been taken to protect against shock-hazard voltages.
• Installation must be installed in accordance with current IEE regulations
