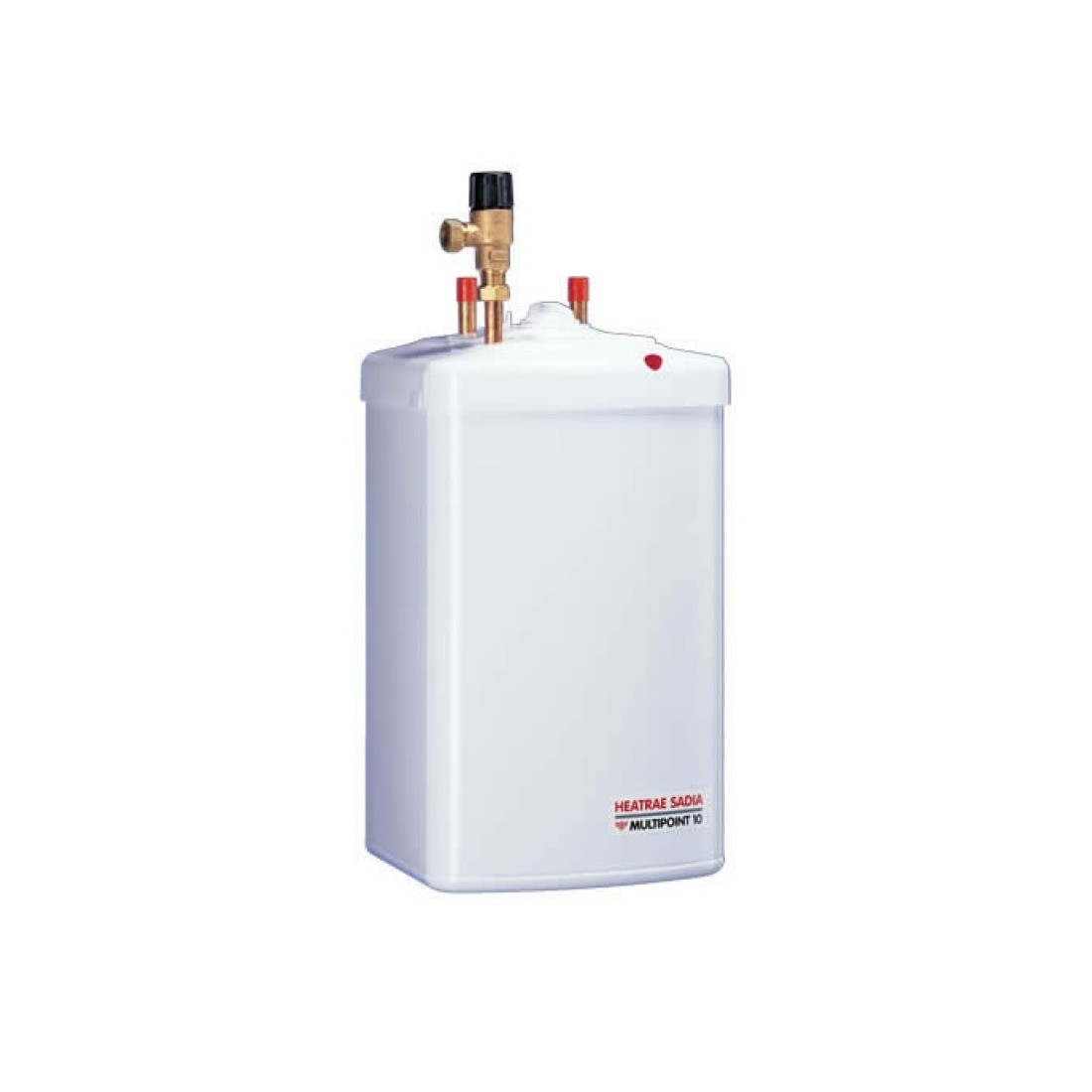

Heatrae Sadia Multipoint 10L 3kW Unvented Water Heater (95050143)
Heatrae Sadia Multipoint 10 litre 3kW version is a market-leading small unvented water heater which is ideal for any situation where a single heater is required to service the needs of multiple outlets. Supplied with a factory-fitted temperature and pressure relief valve and externally adjustable thermostat it is quick and easy to install.
Order code: 95050143
Manufacturer: Heatrae Sadia
GTIN: 5012496501430
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Heatrae Sadia Multipoint 10 Description
Heatrae Sadia Multipoint 10L is an unvented water heater suitable for serving multiple hot water outlets. It is quick and easy to install and is supplied with a factory-fitted temperature and pressure relief valve.
The heart of the Multipoint 10L lies in its replaceable, alloy-sheathed rod-type heating element, ensuring longevity and ease of maintenance. The outer casing is a white plastic top moulding with corrosion proof steel base and centre section, finished in white stove-enamel.
Underneath its robust exterior, the Heatrae Sadia 10 litre water heater features CFC/HCFC-free (ODP zero) flame-retardant expanded polystyrene insulation, guaranteeing energy efficiency while prioritising environmental sustainability. The replaceable heavy-gauge copper inner container is designed for a working pressure of 6 bar (87 psi) and type-tested to an impressive 20 bar (290 psi), ensuring durability and reliability.
Heatrae Sadia 95050143 Features
- Capacity (L): 10
- Power rating (kW): 3
- MPN: 95050143
- Voltage Rating (V): 230
- Dimensions (mm): W267 D252 H572
- Weight (KG): 6.9
- Colour: white
- Replaceable long-life allow sheathed element
- Externally adjustable thermostat from 10°C to 70°C
- No anode to check or replace
- IPX4 rated
- Outer Casing : White plastic top moulding with corrosion proof steel base and centre section, finished in white stove-enamel.
- Insulation : CFC/HCFC free (ODP zero) flame-retardant expanded polystyrene.
- Water Container : Replaceable heavy gauge copper inner container, designed for 6 bar (87psi) working pressure and type tested to 20 bar (290 psi).
- Heat Unit : Replaceable, alloy-sheathed rod-type element.
- Thermostat : Rod-type externally adjustable from 10°C to 70°C, lockable in hot or mid-range position.
- Safety : Factory-fitted temperature and pressure relief valve opens at 7 bar (100 psi) or 90°C. Resettable over-temperature cut-out.
- Approvals : BEAB and Kiwa approved to UK water supply regulations.
- Guarantee : 5 year copper inner container guarantee with on-site service support from date of purchase.
- Manufactured in the UK in a BS EN ISO 9001:2000 registered factory.
Fixing:
Must be mounted in the vertical position with inlet/outlet at the top. Floor or wall mounted (three screws/ keyhole slots).
Plumbing:
15mm copper tail ends. Minimum water pressure 0.8 bar (12 psi). For pressures above 4.1 bar (60 psi), Packs U1 and U2 must be used. NB: The temperature and pressure relief valve supplied must always be fitted.
Safety Valve Discharge
The temperature & pressure relief valve must be plumbed to discharge in a safe visible location.
Optional Thermostatic Blending Valve
Accessory Packs U3 and Pack U7 allow water to be stored at high temperature and blended with cold to a preset outlet temperature.
Electrical:
The unit must be permanently connected to the electrical supply through a double-pole linked switch with minimum breaking capacity of 13 Amps. Must conform to current IEE wiring regulations.
