  4. Danlers WAPIR Single Channel 2-Wire (No Neutral) 120° | 9m PIR Detector With Lux Level Sensing & 10sec - 40min Delay - Requires 1 Gang Mounting Box

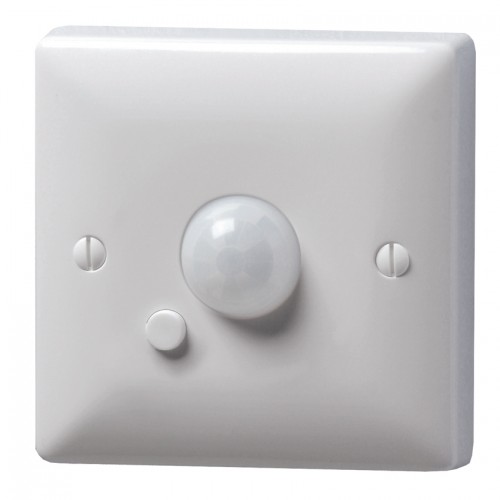

Danlers WAPIR White Wall Mounting Single Channel 2-Wire (No Neutral) 120° | 9m PIR Presence Detector With Lux Level Sensing & 10sec - 40min Time Delay Function - Requires 1 Gang Mounting Box IP20 6A 240V Height: 86mm | Width: 86mm | Depth: 22mm

Danlers WAPIR Single Channel 2-Wire (No Neutral) 120° | 9m PIR Detector With Lux Level Sensing & 10sec - 40min Delay - Requires 1 Gang Mounting Box
Order code: WAPIR
Manufacturer: Danlers
GTIN:

£ 71.30 incl. VAT
£ 59.42 excl. VAT

Trade Price: £ 66.13
You SAVE
£ 6.71 or 10%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Danlers WAPIR Description

Key Features

  • Designed to replace existing wall switch
  • Continuous monitoring to ensure lights stay on when area is occupied
  • Manual override off switch on front of the plate
  • Up to 6A (1500W) load (including fluorescent lights)
  • Photocell range: 100 to 1000 lux and inactive
  • Fits standard (16mm) pattress boxes
  • Time lag: 10 seconds to 40 minutes in 9 steps
  • Suitable for small offices, meeting rooms, turoring rooms, etc.

Specification
Detection zone: 120º
Time lag range: 10 seconds to 40 minutes in 9 steps
Photocell range: 100 to 1000 lux, and inactive
Maximum Loading: up to 6 amps (1500W) of any type of load
(including fluorescent lights and fans)
Minimum Loading: 40W resistive or 100W inductive, or for wiring in parallel 50W resistive or 120W inductive per WAPIR in the circuit.
Load capacitors (order code CAPLOAD) can be supplied to augment small loads.
Dimensions (mm): 86mm x 86mm x 22mm
Wall box depth 16mm
