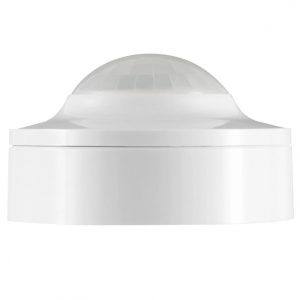

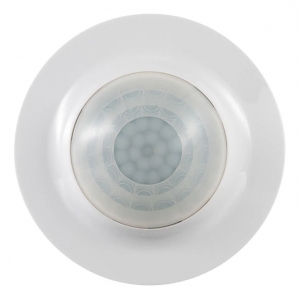

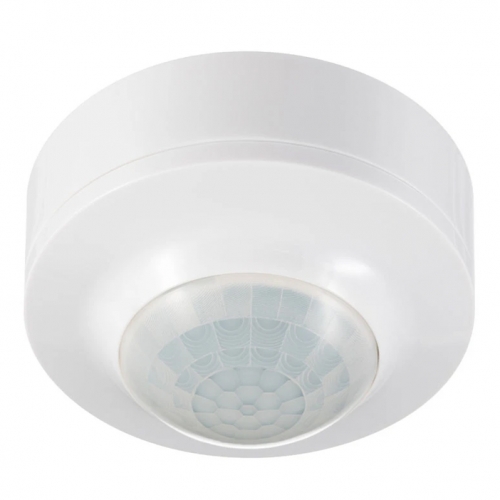

Timeguard STW360 Sureline White 1000W IP40 Round Surface Mounting 360° | 8m PIR Sensor

Timeguard STW360 Description

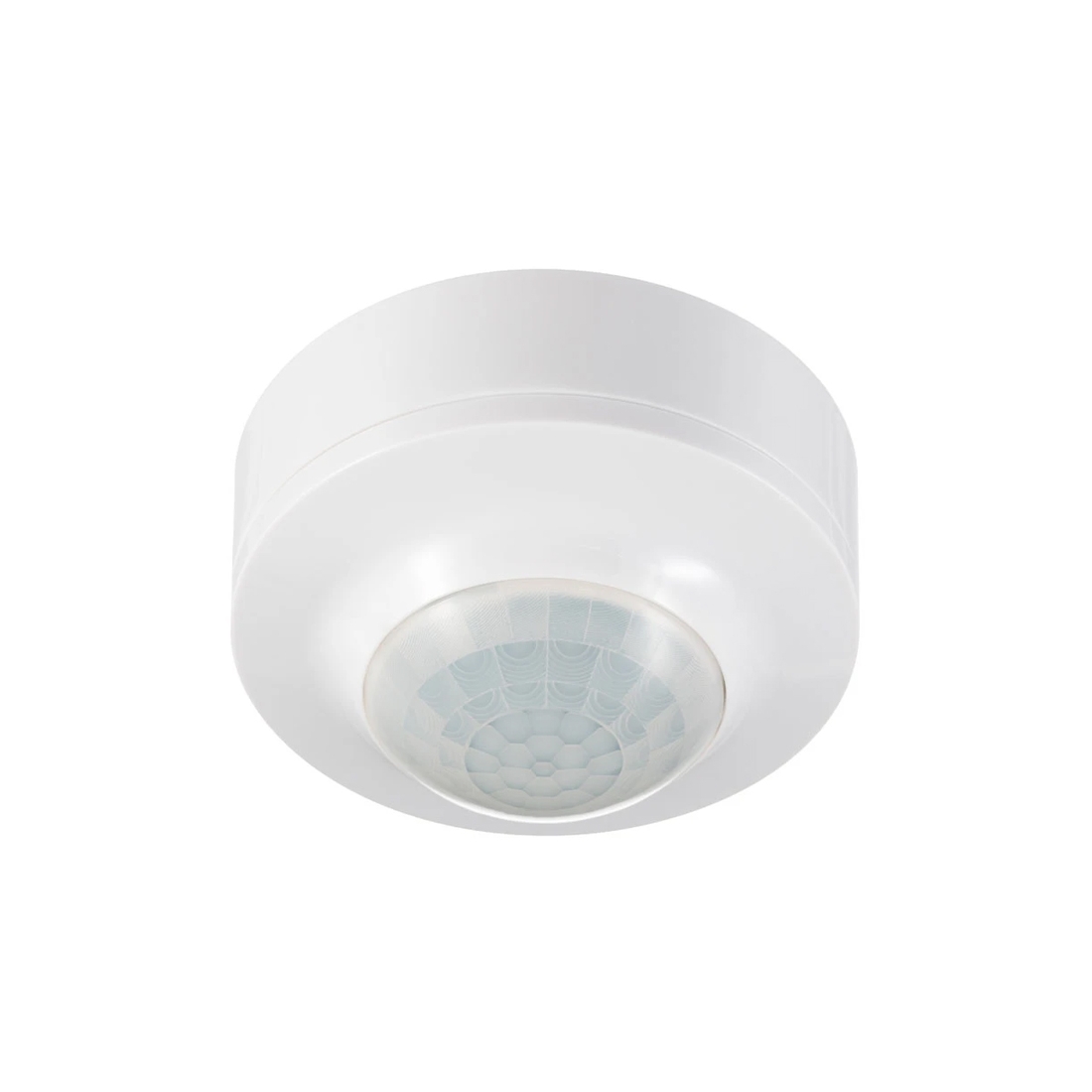

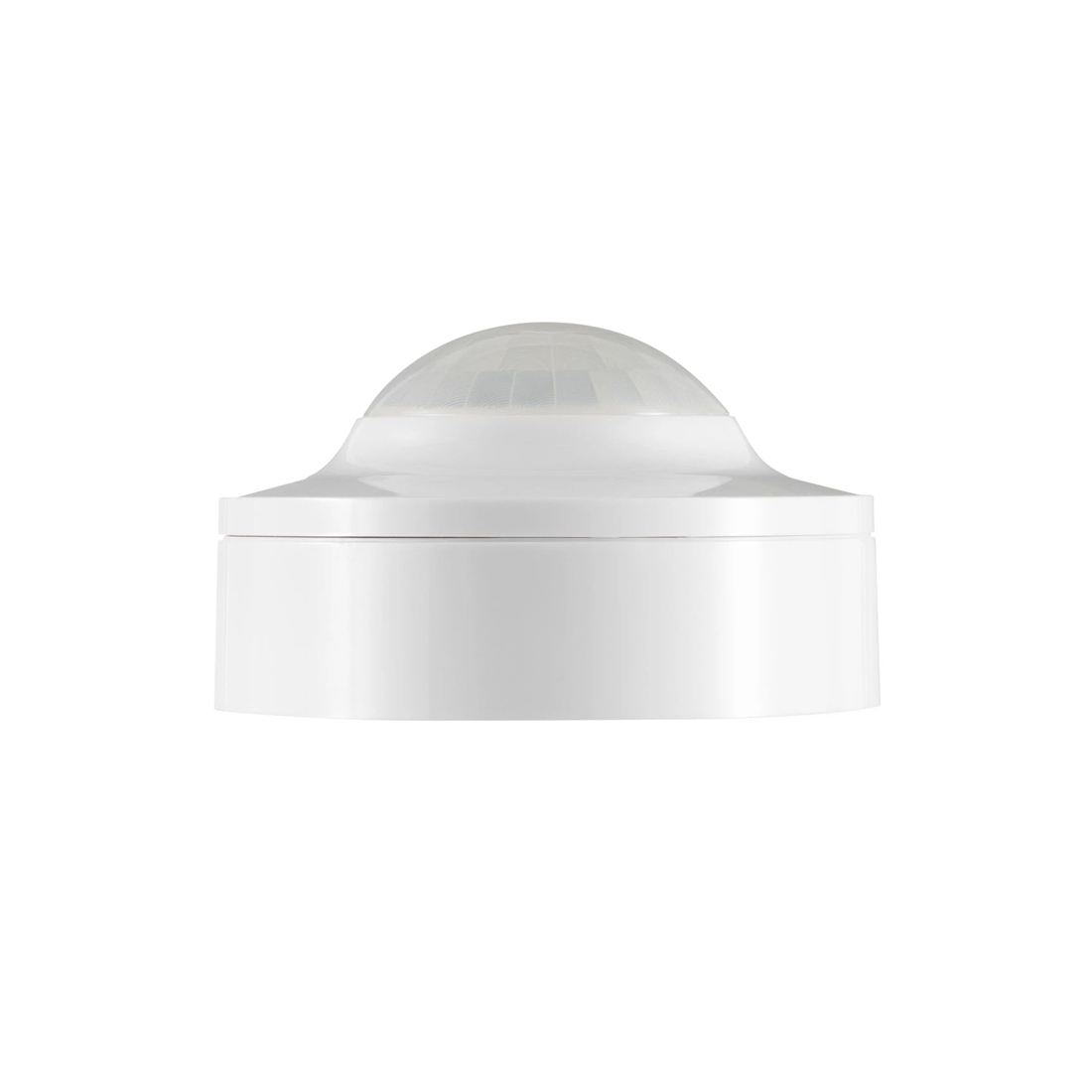

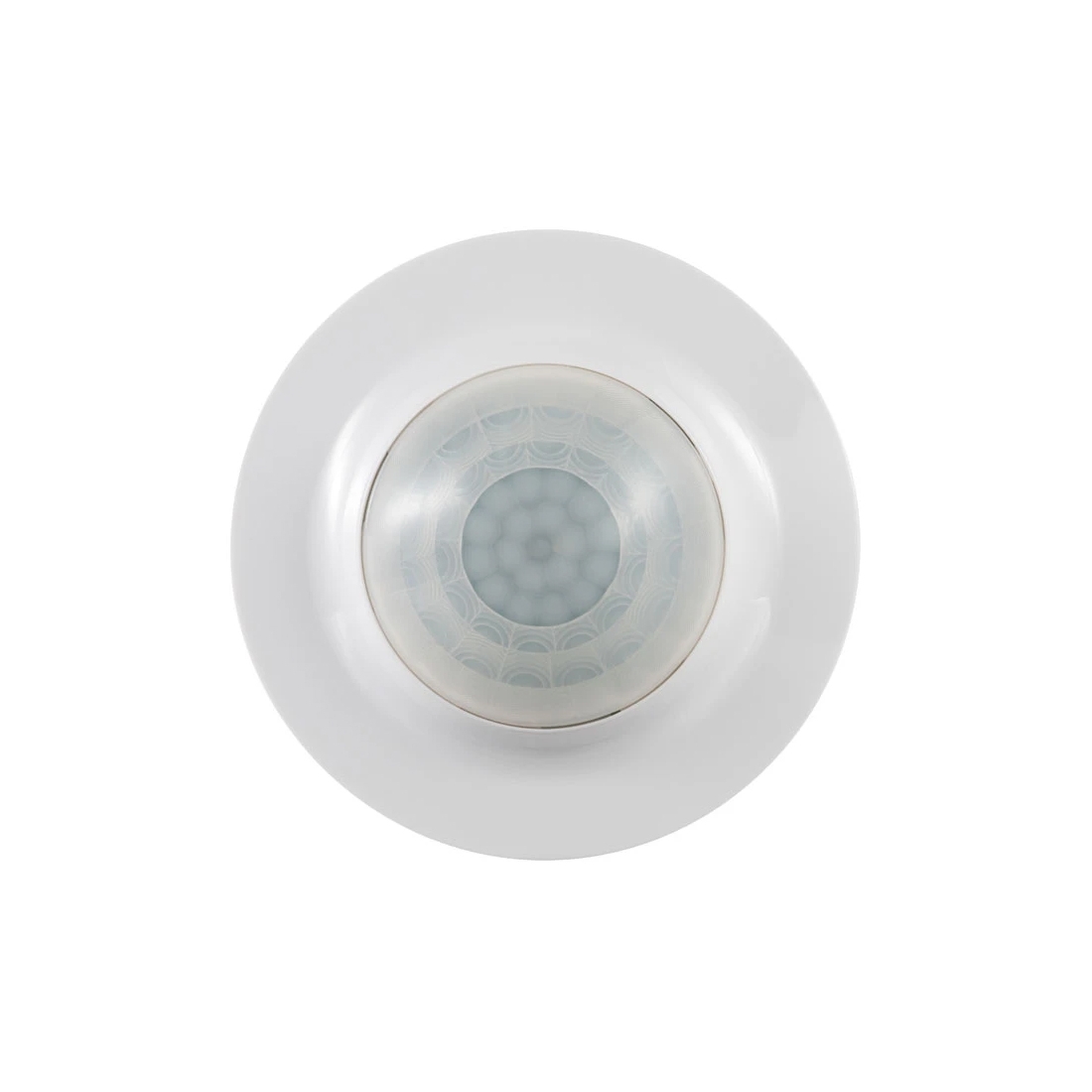

The Timeguard STW360 Suretime Surface Mount 360° PIR Sensor provides reliable motion-activated lighting control for a wide range of indoor applications including rooms, corridors, halls and utility spaces. Its full 360° detection angle allows the sensor to sense movement all around the unit, making it ideal for ceiling or surface installations where broad coverage is essential.

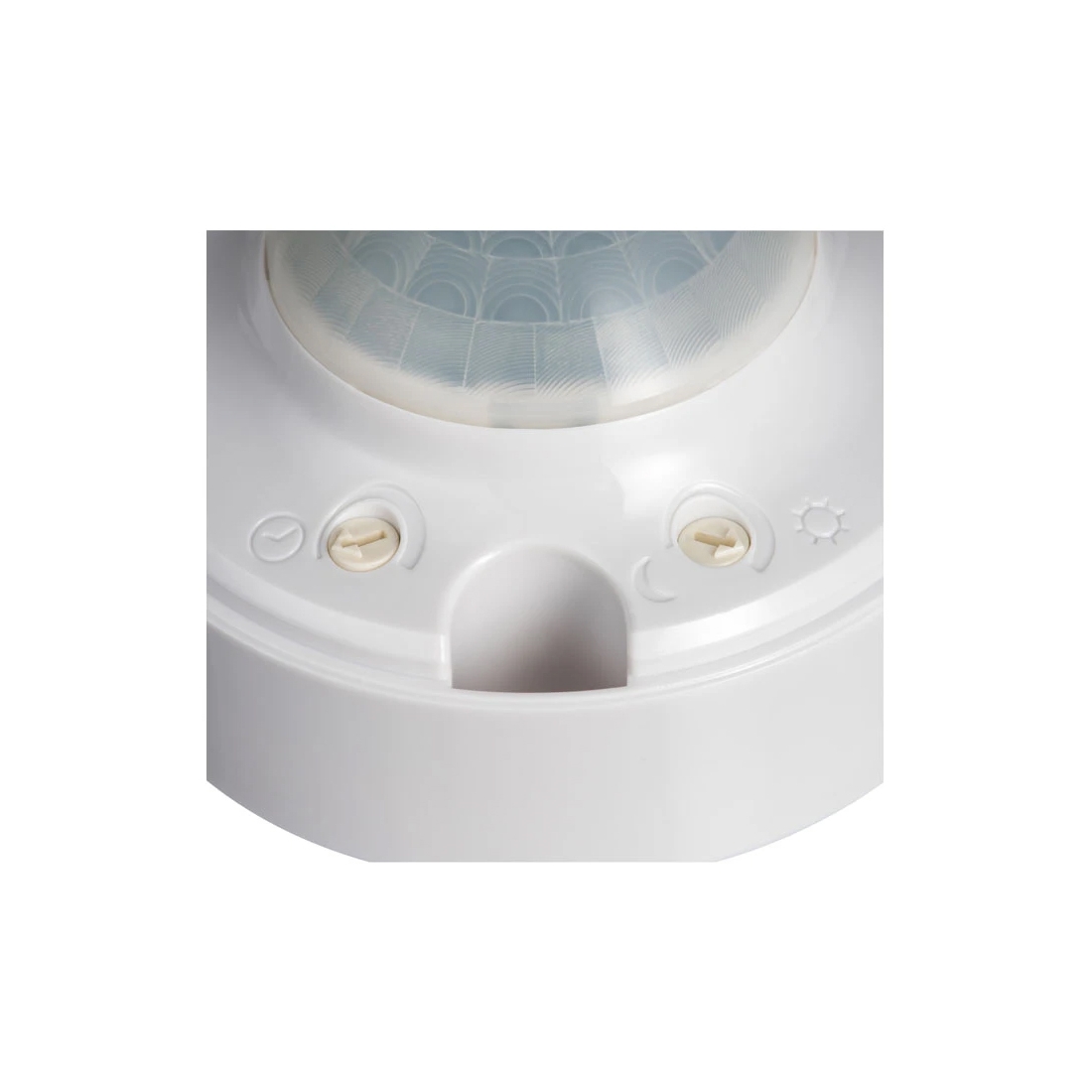

With an adjustable time-on setting from approximately 3 seconds up to 18 minutes and a flexible light-level (lux) control (from about 10 – 1000 lux), you can easily tailor when and how long lights stay on after motion is detected — helping improve convenience and reduce energy usage. A manual override (Pulse) feature lets lights remain on continuously when required.

This surface-mount PIR switches lighting loads up to 1000 W resistive (e.g., halogen/incandescent) and 200 W for fluorescent/LED applications, making it suitable for controlling standard interior lighting circuits. Its compact design and reliable performance make the STW360 a cost-effective choice for automated lighting control in many settings.

Timeguard STW360 Features

• 360° motion detection angle for all-around coverage.
• Up to ~6–8 m detection range at approx. 3 m mounting height.

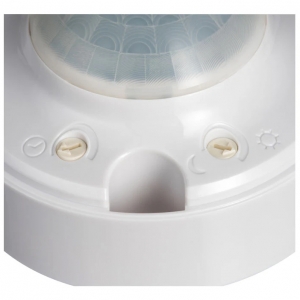

• Adjustable time-on control: ~3 s to ~18 min.
• Adjustable lux (light-level) setting: ~10–1000 lux.
• Manual override (Pulse) — temporary continuous ON mode.
• Surface mount installation — easy fitting to ceilings and walls.
• Suitable switching loads: up to 1000 W resistive, 200 W fluorescent/LED.
• 230 V AC mains compatible — Standard UK electrical supply.
• IP40 weather protection — suitable for indoor use.

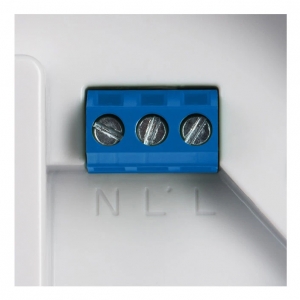

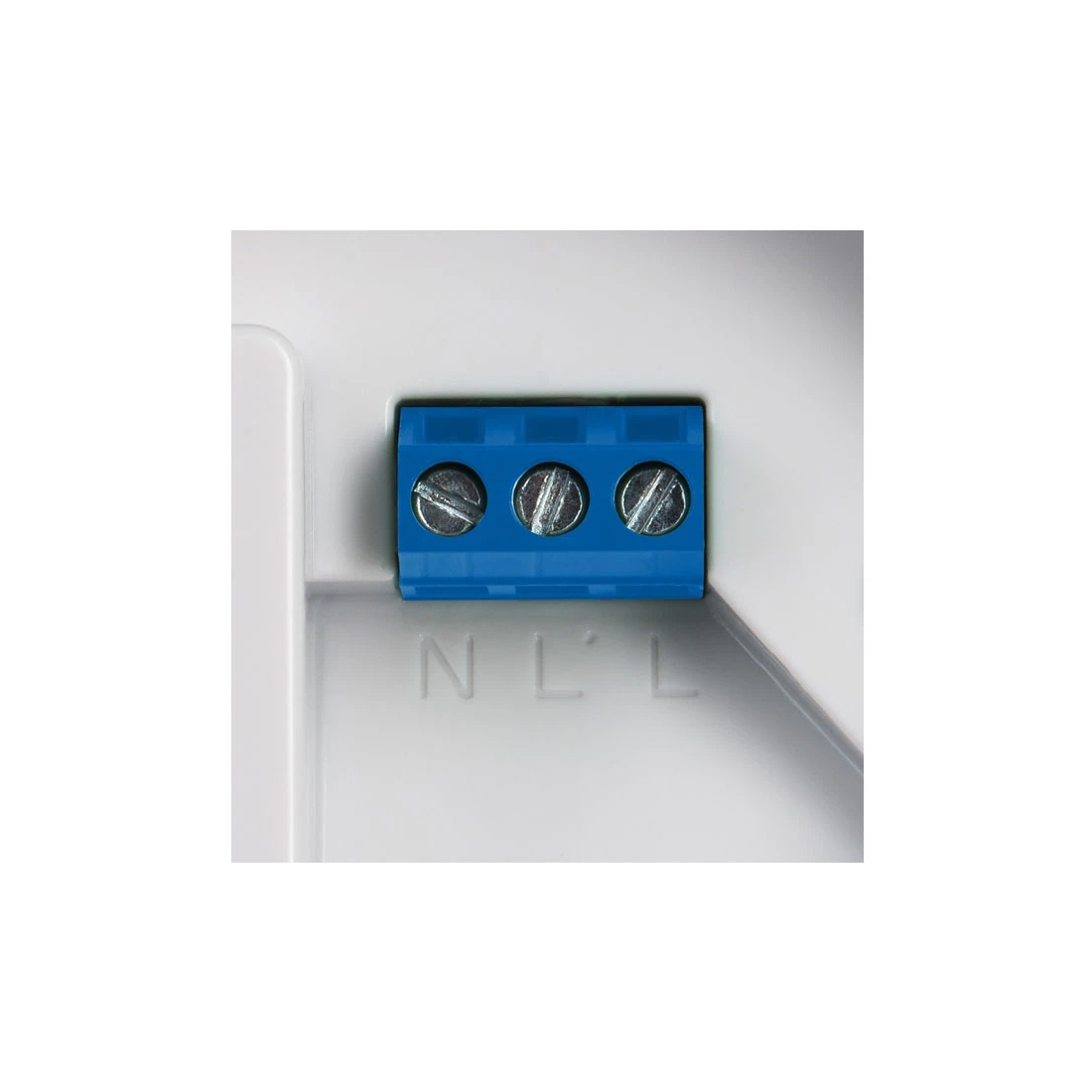

• Large mains terminal connections — secure and simple wiring.
• Class II double-insulated construction — no earth required.
• Compact design: approx. 88 × 88 × 50 mm.
• 2-year manufacturer guarantee — reassurance and reliability.
