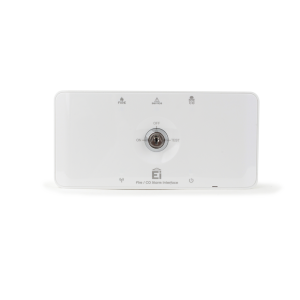

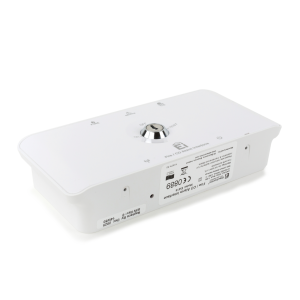

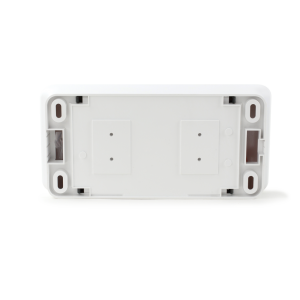

Aico EI414 RadioLINK+ White Wireless Enabled Fire & Carbon Monoxide Alarm Panel Interface 230V
within 1-2 working days
Aico EI414 Description
The Ei414 fire and carbon monoxide alarm interface provides either a wireless interface via RF between a RadioLINK™, RadioLINK+™ and SmartLINK™ alarm system. As well as a physical (hard-wired) interface via a link cable between warden call / telecare systems.
The Ei414 decodes RF fire and/or carbon monoxide signals from the P & RP devices and activates the relevant onboard relays. The relays must be wired to the (universal) RF transmitters or via a special link cable to the Warden Call Systems. The Warden Call System in turn is programmed to perform the desired function, on receipt of these signals.
The Ei414 can deliver a pulse signal or a continuous switched signal via the relays to the universal transmitters. The specific signal type will be determined by the requirement of the OEM universal sensor.
The Ei414 contains x 3 mains rated relays (rated up to 250V AC / 5 Amps). The relay contacts operate on mains power or on battery back-up cells in the event of a mains failure.
The Ei414 has a ket switch with 3 positions:
ON - sends a signal from an Aico alarm but not a controller
TEST - sends a signal from an Aico alarm and controller
OFF - no signal sent from an Aico alarm or controller
The Ei414 uses RadioLINK™ multi-repeater, multi-path technology to deliver very robust and reliable RF signal coverage. While designed primarily to interface with a Warden Call or similar Telecare system, the verstility of the Ei414's electrically isolated contacts means it can be used to switch many other OEM devices.
Aico EI414 Features
- Connect your smoke/heat and carbon monoxide alarm system to external devices e.g. warden call and other telecare systems
- Powered by either mains 240V AC or 10V-30V DC external source
- Rechargeable lithium cell battery back-up
- Volt free contacts output (NO & NC) for Alarm (fire and carbon monoxide) messages and fault messages
- Clear indicator LED's
- 3 position key switch for:
ON - normal operation
TEST - check alarms and communications
OFF - communications null - Contains RadioLINK™ for wireless communication with RadioLINK™, RadioLINK+™ and SmartLINK™
Brand : | Aico |
Part No : | EI414 |
GTIN : | 5099383005066 |
Height : | 90mm |
Width : | 185mm |
Guarantee : | 5 Years |
Depth : | 37mm |
