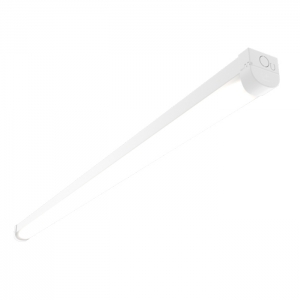

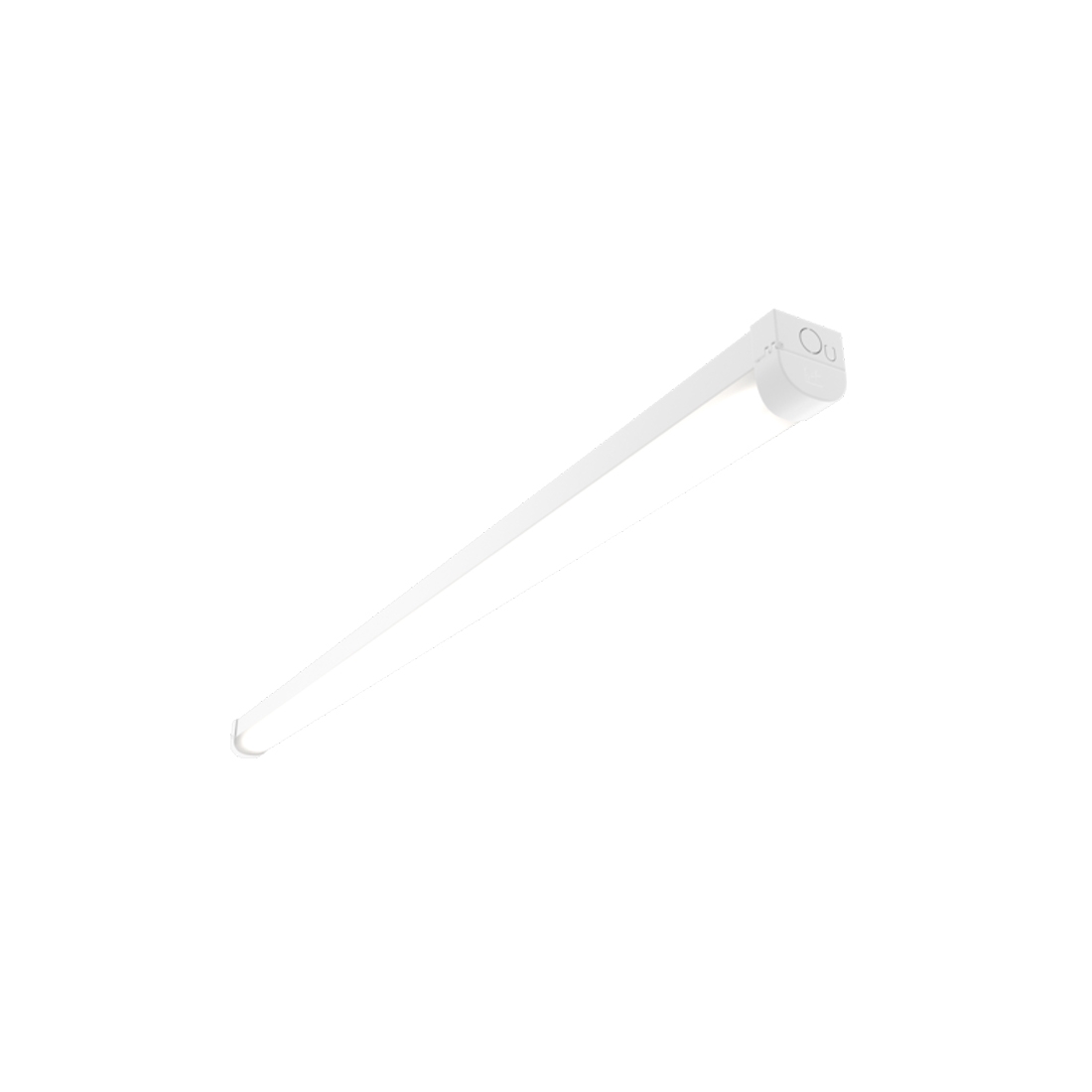

Ansell Lighting ANOU5/3/SM3 NouLine White Self-Test Emergency IP20 5ft 25-45W 3600-6900Lm Wattage & 3CCT Selectable LED Batten With Opal Diffuser

Ansell Lighting ANOU5/3/SM3 Description

The Ansell Lighting ANOU5/3/SM3 NouLine LED Batten is a high-performance commercial lighting solution that combines energy efficiency, flexibility, and emergency safety in a single luminaire. Designed for offices, schools, healthcare facilities, warehouses, retail spaces, and public buildings, this 5ft LED batten offers exceptional versatility with adjustable light output and colour temperature settings.

Featuring wattage selectable technology, the ANOU5/3/SM3 allows installers to choose between 25W, 35W, and 45W power settings, delivering a flexible light output from 3600 to 6900 lumens. The integrated 3CCT selectable function enables easy switching between 3000K Warm White, 4000K Cool White, and 5700K Daylight, making it simple to customise the lighting environment without changing fittings.

The high-performance opal diffuser provides smooth, uniform illumination with reduced glare, creating comfortable lighting conditions in working and learning environments. Integrated self-test emergency functionality automatically monitors and tests the emergency lighting system, ensuring ongoing compliance while significantly reducing manual maintenance requirements. In the event of a mains power failure, the fitting provides reliable emergency illumination to support occupant safety.

Designed with modern installation requirements in mind, the NouLine range offers a slim, contemporary appearance and straightforward installation. Combining long-life LED technology with low energy consumption and reduced maintenance costs, the ANOU5/3/SM3 is an ideal choice for professional lighting projects requiring both standard and emergency lighting performance.

Ansell Lighting ANOU5/3/SM3 Features

• Range: NouLine
• Colour/finish: White
• Length: 5ft (1500mm)
• Wattage selectable: 25W / 35W / 45W
• Light output: 3600 – 6900 lumens
• 3CCT selectable: 3000K / 4000K / 5700K
• Integrated self-test emergency function
• Automatic emergency testing and status monitoring
• Provides emergency illumination during power failure
• IP20 rated – suitable for indoor applications
• High-transmission opal diffuser for uniform light distribution
• Wide beam angle for excellent coverage
• Energy-efficient integrated LED technology
• Long operational lifespan with reduced maintenance requirements
• Slim, contemporary batten design
• Suitable for offices, schools, healthcare facilities, warehouses, retail spaces, and commercial buildings
• Ideal replacement for traditional fluorescent battens
• Low glare lighting performance
• Colour Rendering Index: CRI >80
• 220-240V mains operation
• Quick and easy installation
• Dimensions: L 1500 x H 64 x W 64mm
