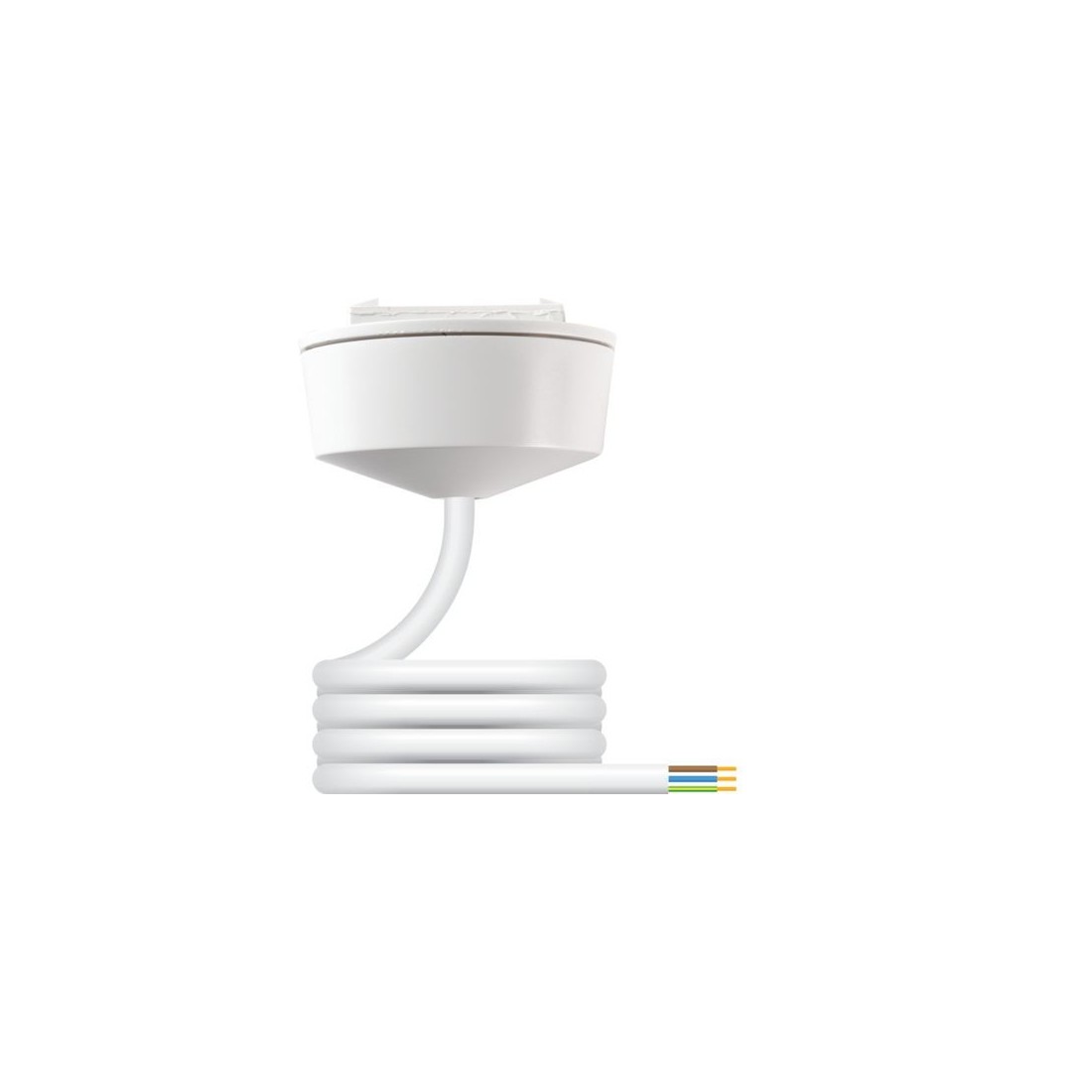

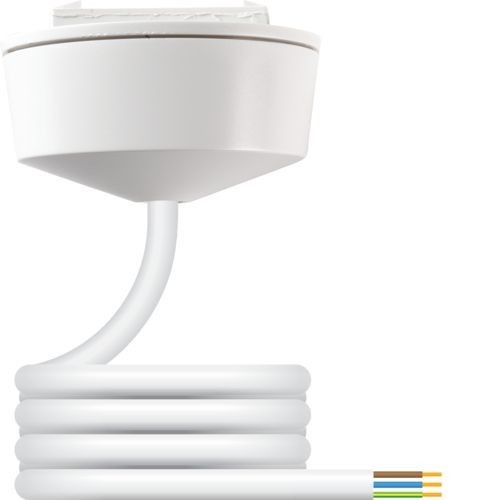

Hager PCR2000/1.0LSF/2 Klik White 3 Pin Pre-Wired Plug-In Ceiling Rose With 2m x 1.0mm² Low Smoke LSZH Flexible Lead 6A

Hager PCR2000/1.0LSF/2 Description

The Hager PCR2000/1.0LSF/2 Klik is a white pre-wired 3 pin 6A plug-in ceiling rose with 2m of 1.0mm² low smoke LSZH flexible cable that is used to offer a pluggable connection for luminaires.

The luminaire can be connected and disconnected under load for replacement or repair at ground level.

Mechanical and electrical connection is made in one "click-in" action providing a simple time saving and safe installation. Its designed for an on load isolation which allows individual light fittings to be removed for maintenance without affecting other fittings on the circuit.

PCR2000/1.0LSF/2 is supplied pre-wired with 2 metre of 1.0mm² low smoke LSZH flexible cable to reduce on-site installation time and costs. All leads have crimped prepared ends to eliminate breakage, and minimise on-site cable preparation.

Ideal for use in commercial properties, hospitals, schools and leisure facilities where smoke and acid gas emission from fire affected cables would be hazardous to people and equipment.

Hager PCR2000/1.0LSF/2 Features

• Klik PCR2000/1.0LSF/2 white LSZH pre-wired 3 pin 6A plug in ceiling rose and cover
• 6 Amp 230V ac
• White finish
• Pre-wired with 2m of 1.0mm² low smoke LSZH flexible cable
• Suitable where smoke and acid gas emission from fire affected cables would be hazardous to people and equipment
• PCR2000 Ceiling Rose consists of P22 Plug, S27 Socket and A1 Cover
• All leads have prepared barrel crimped ends
• Sockets have 4 terminations: live, neutral, earth and loop-in
• Plugs have 3 terminations: live, neutral and earth
• Mechanical and electrical connection made in one "click-in" action
• Reduces on-site installation time and cost
• Provides loop-in terminal bank wiring within integral surface mounting socket base
• Base terminals accepts 2x4mm² conductor
• Fixing: 50.8mm standard Diagonal (BESA)
• Static loading 5kg when load suspended by the flexible cord
• Inflammability: UL 94 V0
• Complies with BS 6972 and BS 5733:2010
• Dimensions: Diameter Ø: 75mm | Depth 44mm | Cable Length: 2m
