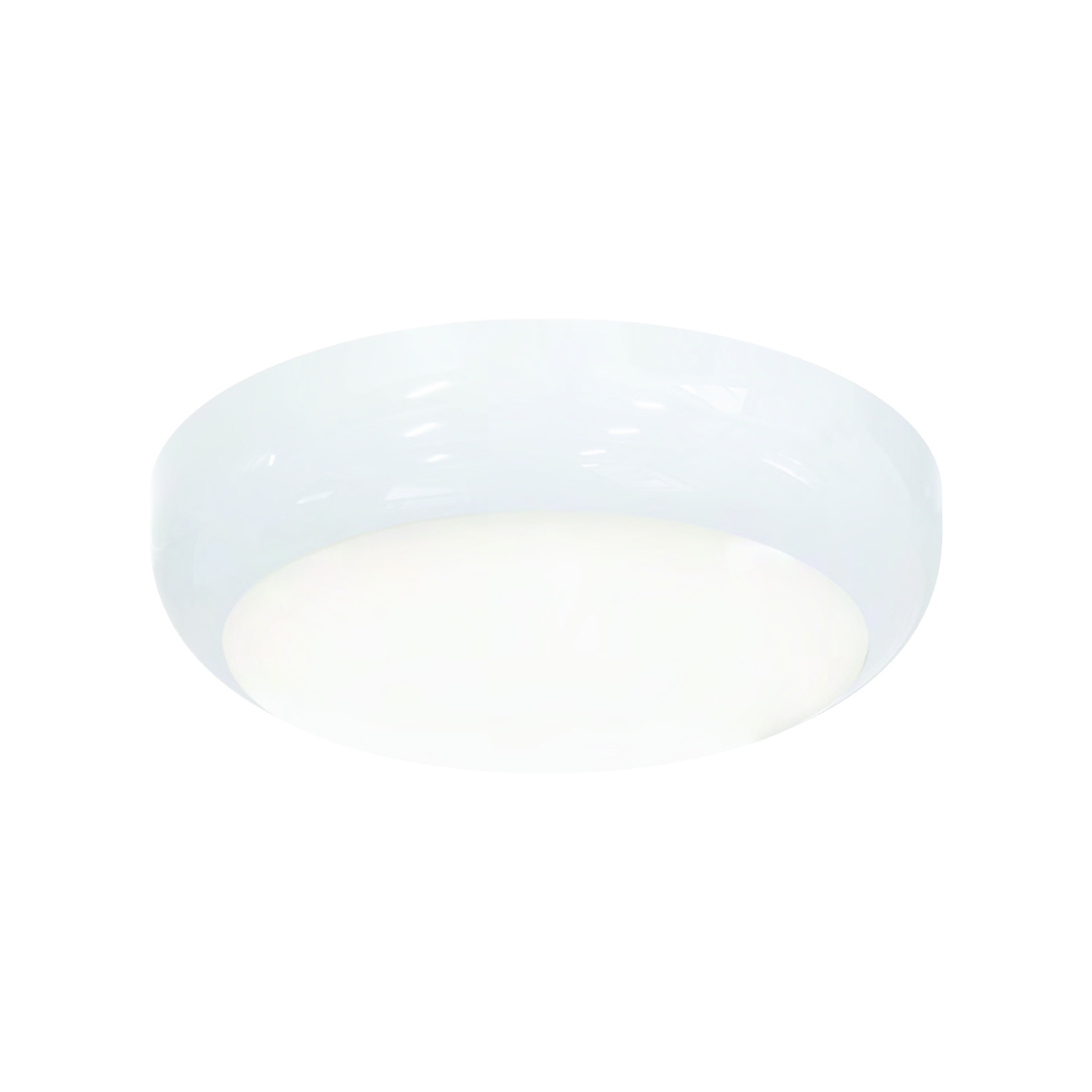

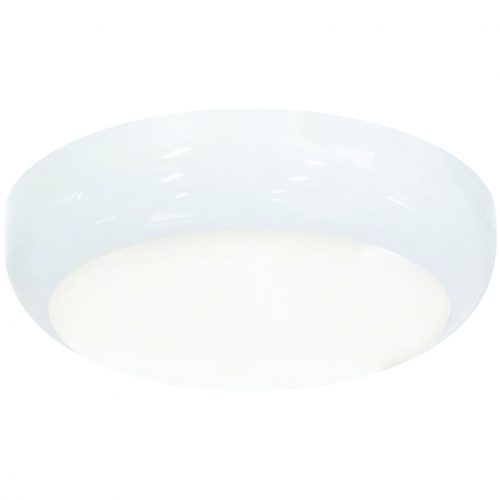

Ansell Lighting ADIS1/1/SM3 Disco Evo White All Polycarbonate Self-Test Emergency Wattage Selectable CCT LED Bulkhead With 3 Colour Selectable LEDs & Opal Diffuser IP65 4W/7W 480-950Lm 240V DiaØ: 275mm | Proj: 80mm

Ansell ADIS1/1/SM3 Description

The Ansell Lighting Disco Evo ADIS1/1/SM3 is a white self-test emergency wattage and colour selectable non-dimmable LED bulkhead suitable for residential, commercial and industrial applications as well as ancillary areas.

Slim modern all polycarbonate construction with opal diffuser and white trim ring that offers instant light output and unlimited switching. Optional chrome, satin chrome or black trim ring accessories

Wattage selectable between 4W and 7W delivering between 480Lm and 950Lm when cool white (4000K) is selected.

Colour selectable options include warm white (3000K), cool white (4000K) and daylight white (6500K) via the internal switch that is selectable at the time of installation.

Delivers 3 hour emergency operation in the event of power failure.

IP65 rated suitable for both internal and external use. Supplied with projected life expectancy of L80 35,000 hours.

The gear tray is located on the bezel, allowing the base to be installed and then the bezel connected, this coupled with 4x 20mm conduit entry points on base ensure a quick and simple installation

Whether you install the Disco in an office building, school, shopping centre, or block of flats, it is sure to complement its surroundings.

Ansell ADIS1/1/SM3 Description

• Ansell Lighting ADIS1/1/SM3 LED bulkhead
• IP65 rated suitable for both internal and external use
• White all polycarbonate construction with opal diffuser and white trim ring
• 3 hour emergency operation in the event of power failure
• Suitable for wall or ceiling mounting
• Slim modern design that is both safe and secure
• Rating: Wattage selectable either 4W or 7W 240V~
• LEDs: Colour selectable warm white (3000K) | cool white (4000K) | daylight white (6500K) LED colour via internal switch
• Lumens: 4W 480Lm | 7W 950Lm when cool white (4000K) is selected
• LED Lifetime: L80 35,000 hours
• Non-dimmable
• Gear tray located on the bezel, allowing the base to be installed and then the bezel connected
• 4x 20mm conduit entry points on base ensure a quick and simple installation
• Optional chrome, satin chrome or black trim ring accessories
• Delivers instant light output and unlimited switching
• Suitable for residential, commercial and industrial applications as well as ancillary areas
• Dimensions: Dia Ø: 275mm | Proj: 80mm
