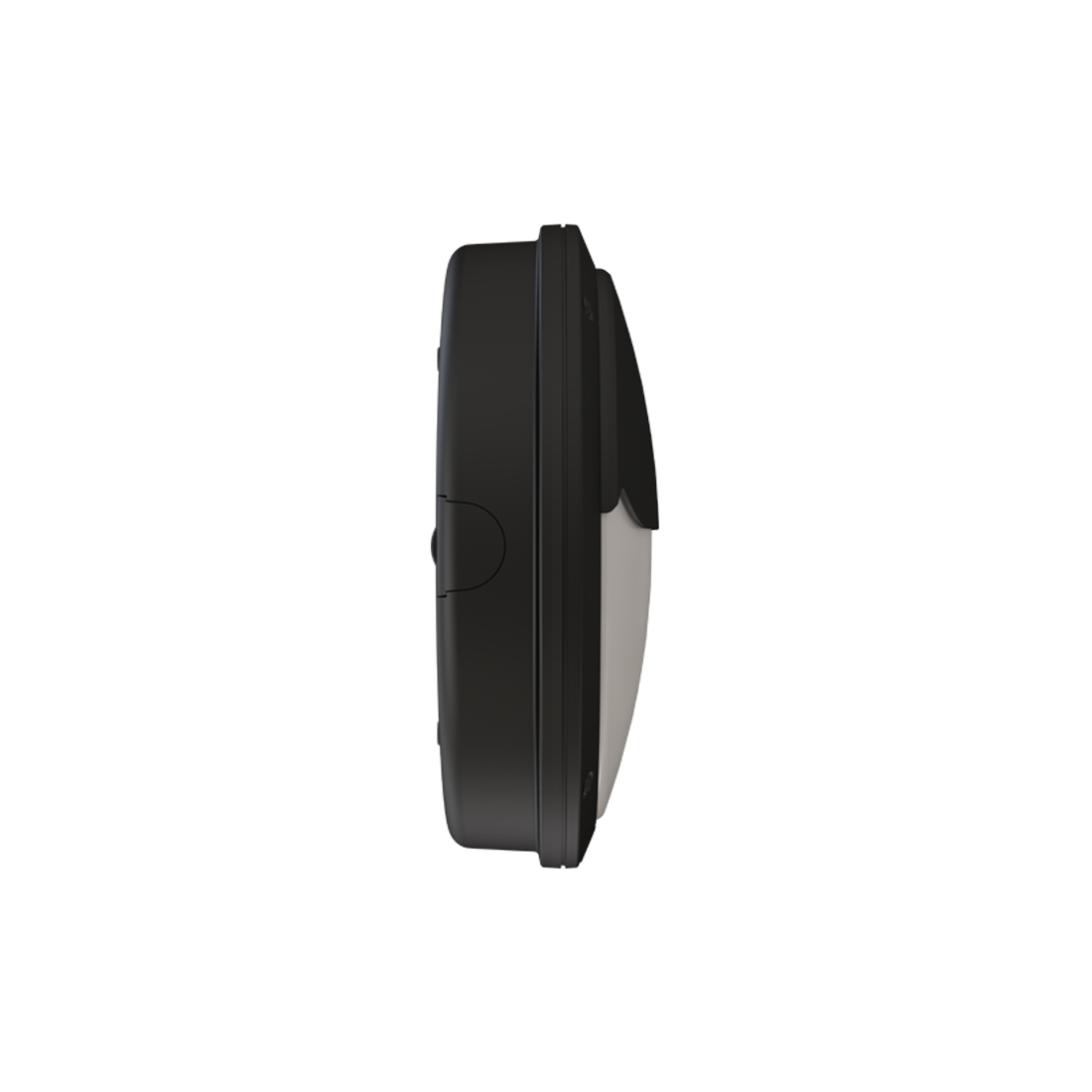

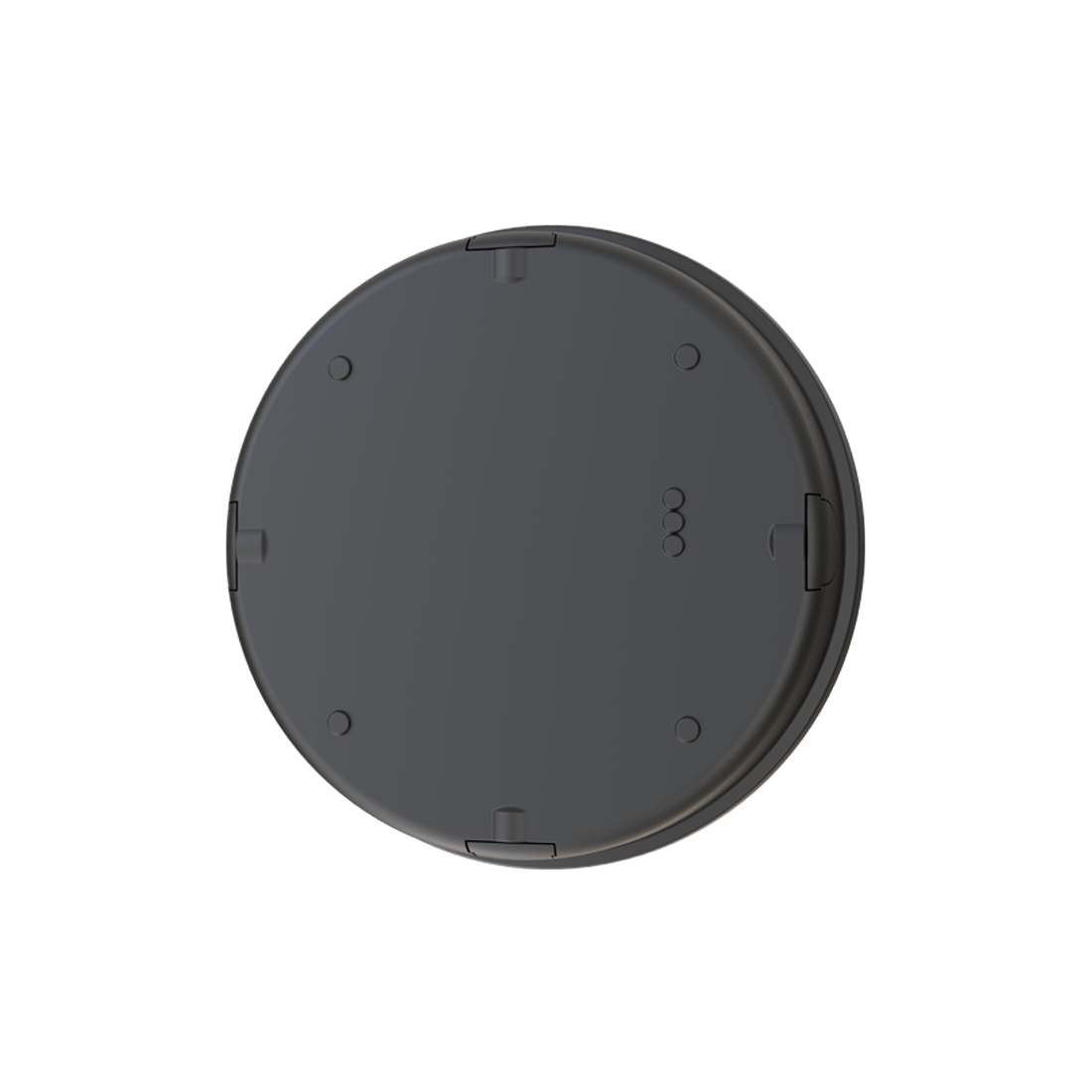

Ansell Lighting ALUP/1/B Luppa CCT Black IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead

Ansell Lighting ALUP/1/B Description

The Ansell Lighting ALUP/1/B Luppa CCT Multi Wattage LED Bulkhead is a high-performance surface-mounted wall light designed for reliable indoor and outdoor illumination. Its IP66-rated die-cast aluminium construction and opal polycarbonate diffuser provide a durable solution for commercial, education and industrial environments, while the 298mm round black design offers a smart, professional appearance.

Installer-selectable 16W-23W power settings and outputs from 2100 to 3200 lumens provide flexibility to tailor the light level and energy consumption to the application. The fitting is also CCT selectable between 3000K Warm White and 4000K Cool White, allowing the required colour appearance to be selected during installation.

Ansell has engineered the Luppa with installation efficiency in mind. The gear tray is located on the diffuser, allowing the base to be installed first before connecting the diffuser, while removable conduit entries simplify cable routing and tamper-proof stainless steel Allen key screws provide additional security.

The Luppa also features an integrated switch that allows the LED section behind the compatible eyelid trim to be deactivated, helping reduce unnecessary energy consumption when the trim is fitted. With IP66 weather protection, IK08 impact resistance, an L80 72,000-hour LED lifetime and a 7-year Ansell warranty, the ALUP/1/B is a durable and adaptable LED bulkhead for demanding professional lighting installations.

Ansell Lighting ALUP/1/B Features

• Ansell Luppa CCT Multi Wattage LED bulkhead
• Contemporary black finish
• 16W-23W selectable wattage
• 2100-3200 lumens light output
• CCT selectable: 3000K / 4000K
• 3000K Warm White or 4000K Cool White
• 298mm round design
• Durable die-cast aluminium construction
• Opal polycarbonate diffuser for diffused illumination
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• 220-240V input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Gear tray positioned on the diffuser for quick and straightforward installation
• Removable conduit entries help simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind the compatible eyelid trim to be deactivated for improved energy efficiency
• Compatible with XPRESS emergency and microwave sensor upgrades
• Suitable for education, commercial and industrial applications
• Dimensions: Ø298mm × 95mm (Diameter × Depth)
