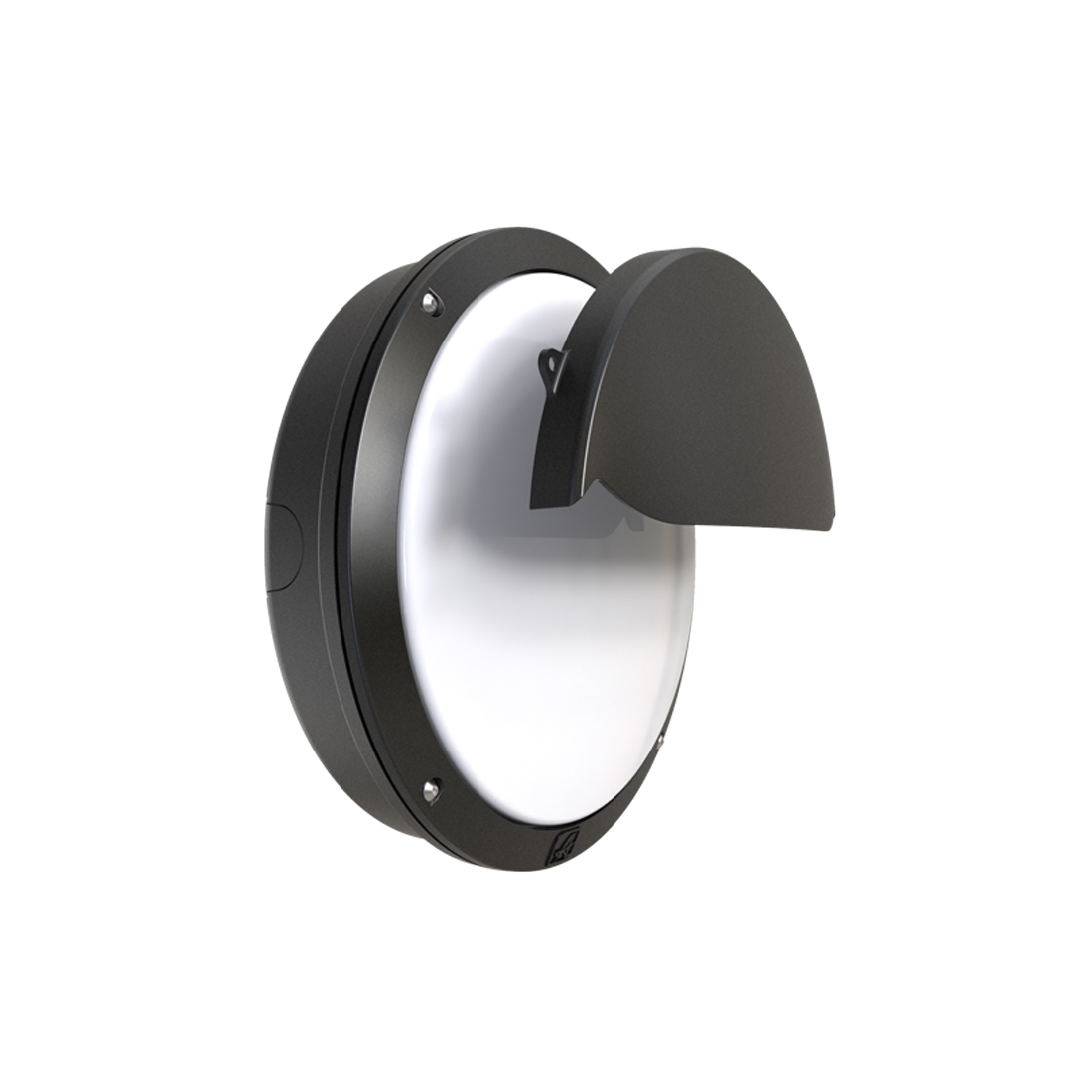

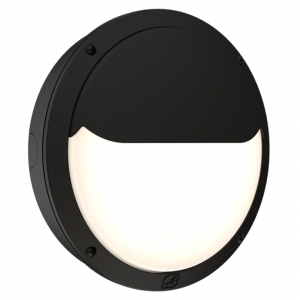

Ansell Lighting ALUP/1/B/MWS Luppa CCT Black IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Microwave Sensor

Ansell Lighting ALUP/1/B/MWS Description

The Ansell Lighting ALUP/1/B/MWS Luppa CCT LED Bulkhead is a versatile surface-mounted luminaire combining powerful LED performance with microwave presence detection for automatic lighting control. Its durable black die-cast aluminium body and opal polycarbonate diffuser are backed by IP66 weather protection and IK08 impact resistance, making the fitting suitable for demanding indoor and outdoor commercial applications.

Installer-selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, allowing the performance and energy consumption to be tailored to the installation. 2CCT selection between 3000K Warm White and 4000K Cool White provides additional flexibility from a single luminaire, reducing the number of different product variants installers need to stock.

The integrated microwave sensor provides presence-based lighting control, automatically activating the bulkhead when movement is detected within its configured detection area. This makes the ALUP/1/B/MWS particularly useful for corridors, communal areas, entrances, stairwells and other locations where lighting is only required when the area is occupied, helping reduce unnecessary energy consumption.

Ansell has also designed the Luppa for efficient installation, positioning the gear tray on the diffuser so the base can be fitted first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support a secure, installer-friendly installation, while an L80 72,000-hour LED lifetime and 7-year warranty make the Luppa a dependable choice for long-term professional lighting projects.

Ansell Lighting ALUP/1/B/MWS Features

• Ansell Luppa CCT Multi Wattage LED bulkhead
• Integrated microwave sensor for automatic presence-based lighting control
• Contemporary black finish
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding indoor and outdoor installations
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated
• Suitable for education, commercial and industrial applications
• Ideal for corridors, communal areas, entrances and other intermittently occupied spaces
