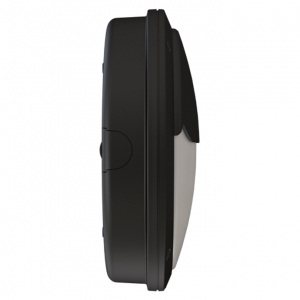

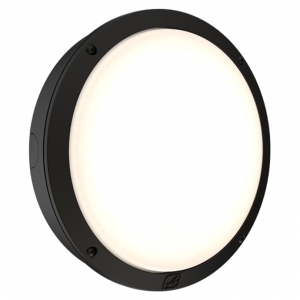

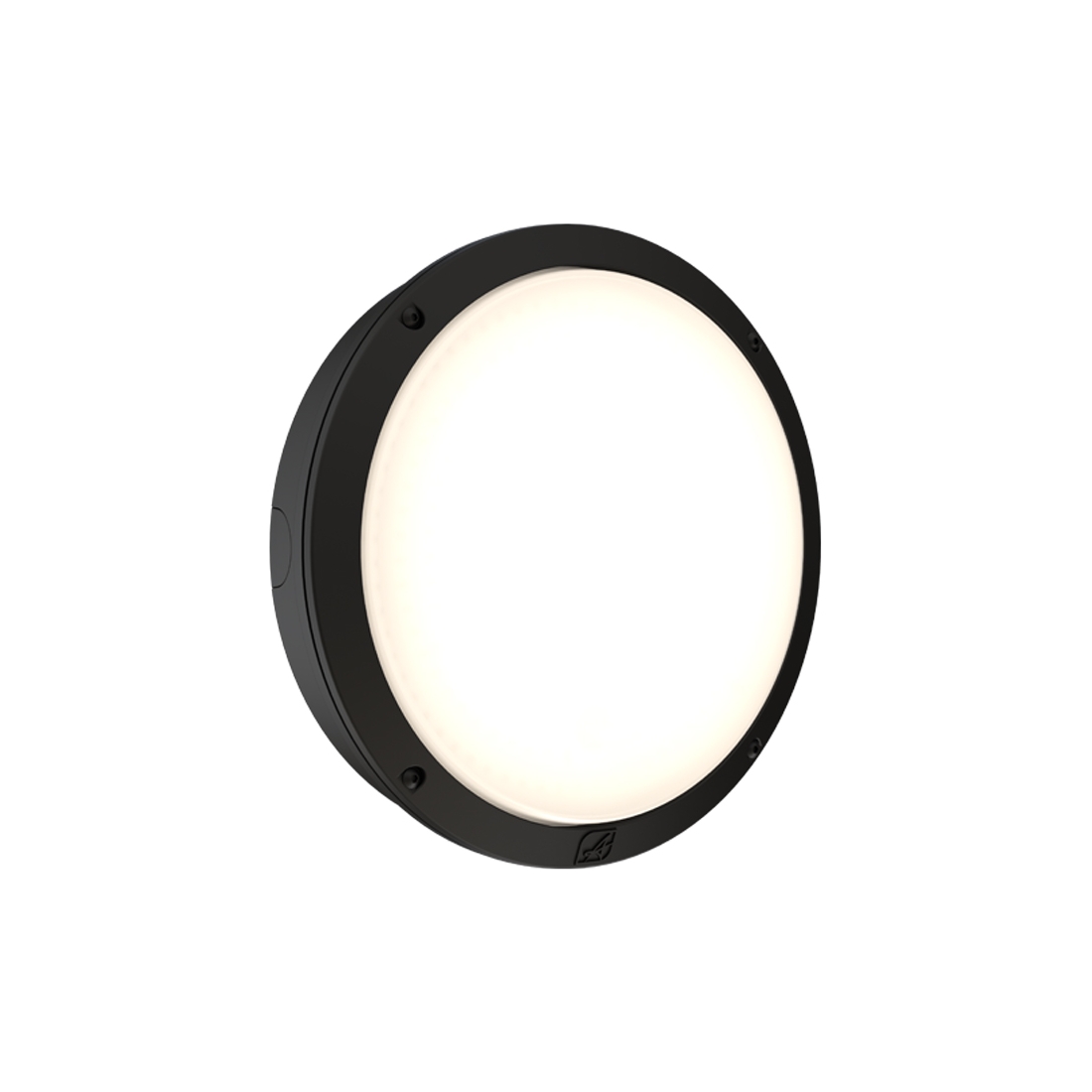

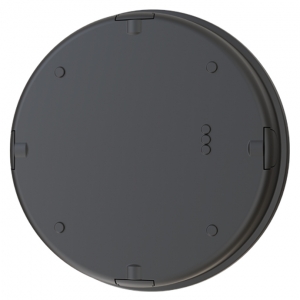

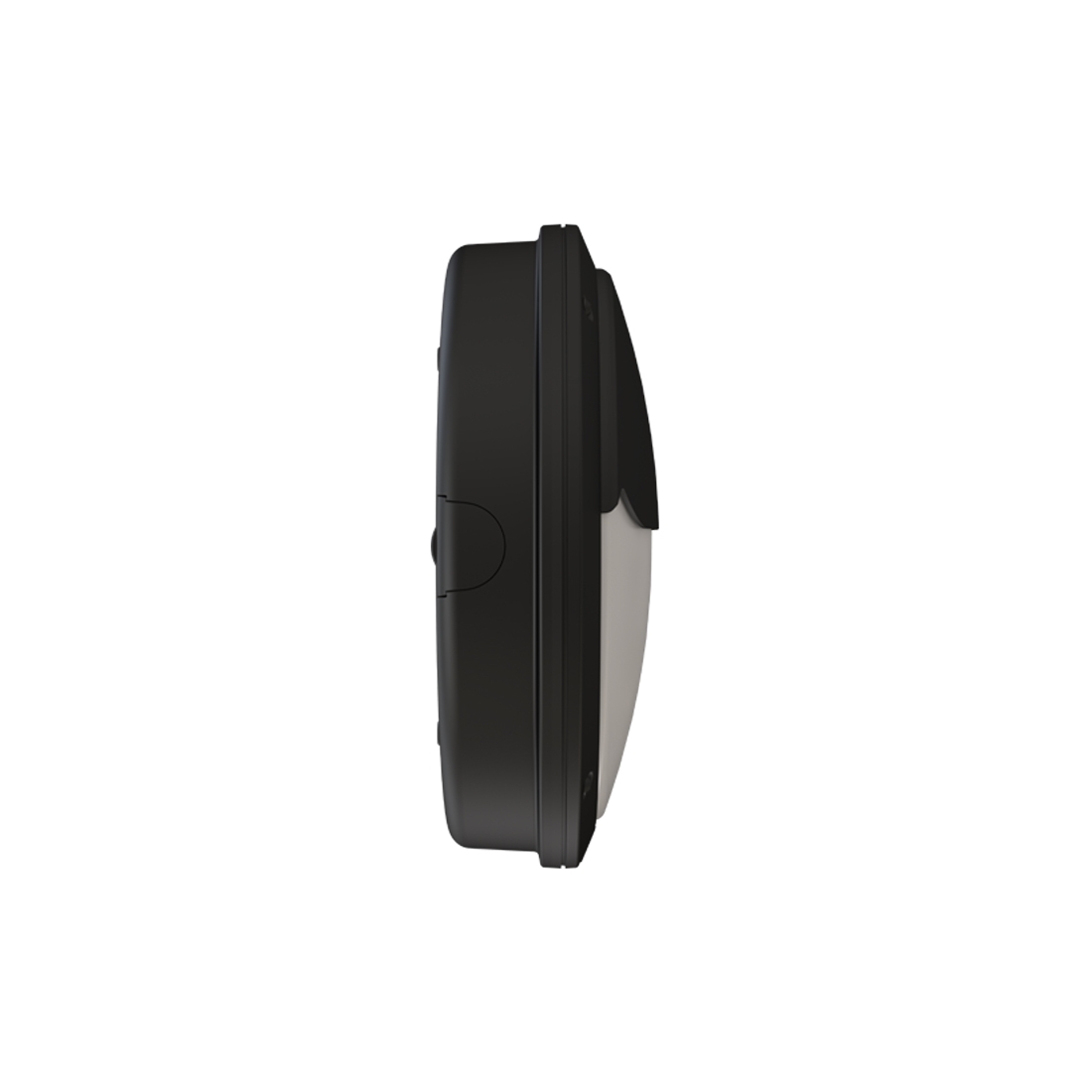

Ansell Lighting ALUP/1/B/PC Luppa CCT Black IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Photocell

Ansell Lighting ALUP/1/B/PC Description

The Ansell Lighting ALUP/1/B/PC Luppa CCT LED Bulkhead is a versatile commercial-grade luminaire combining powerful LED illumination with an integrated photocell for automatic dusk-to-dawn lighting control. Its robust black die-cast aluminium body and opal polycarbonate diffuser provide a durable lighting solution for education, commercial and industrial environments, with IP66 weather protection and IK08 impact resistance supporting installation in demanding locations.

Selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, allowing installers to tailor performance and energy consumption to the application. The Luppa also provides 2CCT selection between 3000K Warm White and 4000K Cool White, giving installers additional flexibility from a single bulkhead.

The photocell automatically responds to ambient light levels, providing automatic lighting operation without relying on manual switching. This makes the ALUP/1/B/PC particularly useful for entrances, building perimeters, external walkways and other applications where illumination is required during hours of darkness.

Installation is simplified by the Luppa's gear tray located on the diffuser, allowing the base to be installed first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support a quick and secure installation, while an L80 72,000-hour LED lifetime provides dependable long-term performance.

Ansell Lighting ALUP/1/B/PC Features

• Ansell Luppa CCT Multi Wattage LED bulkhead
• Contemporary black finish
• Integrated photocell for automatic lighting control
• Photocell responds automatically to ambient light levels
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• 298mm round design
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated
• Suitable for education, commercial and industrial applications
• Ideal for entrances, external walkways, building perimeters and other automatically controlled lighting applications
