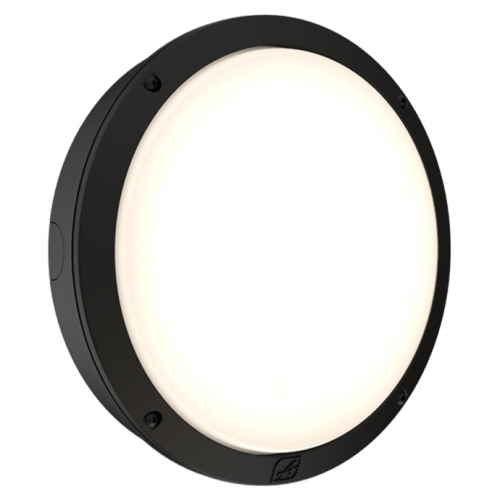

Ansell Lighting ALUP/1/B/SM3 Luppa CCT Black Self-Test Emergency IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead

Ansell Lighting ALUP/1/B/SM3 Description

The Ansell Lighting ALUP/1/B/SM3 Luppa CCT Self-Test Emergency LED Bulkhead combines versatile general illumination with integrated emergency lighting functionality for demanding commercial environments. Its robust black die-cast aluminium body and opal polycarbonate diffuser provide excellent durability, while IP66 weather protection and IK08 impact resistance make it suitable for challenging indoor and outdoor locations.

Selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, enabling installers to configure the light level and energy consumption to suit the application. The fitting also provides 2CCT selection between 3000K Warm White and 4000K Cool White, giving greater flexibility from a single bulkhead and reducing the number of different variants required for a project.

The integrated self-test emergency functionality adds an important safety benefit by incorporating automatic emergency lighting testing rather than relying solely on routine manual testing. This makes the ALUP/1/B/SM3 particularly suited to commercial buildings, education facilities, communal areas, corridors and other installations requiring dependable emergency illumination.

Installation is simplified by Ansell's Luppa design, with the gear tray positioned on the diffuser so the base can be installed first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support efficient, secure installation, while the L80 72,000-hour LED lifetime and 7-year Ansell warranty provide excellent long-term reliability.

Ansell Lighting ALUP/1/B/SM3 Features

• Ansell Luppa CCT LED bulkhead
• Self-test emergency version
• Contemporary black finish
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable standard light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C

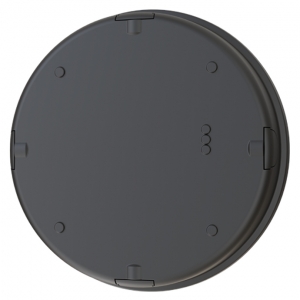

• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated
• Suitable for education, commercial and industrial applications
• Ideal for corridors, communal areas, entrances and emergency lighting installations
