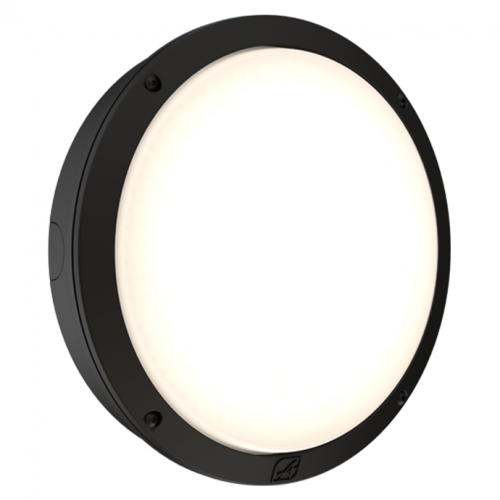

Ansell Lighting ALUP/1/B/SM3/PC Luppa CCT Black Self-Test Emergency IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Photocell

Ansell Lighting ALUP/1/B/SM3/PC Description

The Ansell Lighting ALUP/1/B/SM3/PC Luppa CCT LED Bulkhead combines versatile general illumination, self-test emergency functionality and photocell control within one robust surface-mounted fitting. Its durable black die-cast aluminium construction and opal polycarbonate diffuser provide a professional solution for education, commercial and industrial environments, with IP66 weather protection and IK08 impact resistance supporting demanding internal and external installations.

Selectable 16W or 23W power settings provide corresponding standard outputs of 2100 or 3200 lumens, allowing installers to tailor performance and energy consumption to the application. The Luppa is also 2CCT selectable between 3000K Warm White and 4000K Cool White, providing greater specification flexibility from a single luminaire.

The integrated photocell provides automatic lighting control in response to ambient light conditions, making this version particularly suitable for locations where illumination is required during hours of darkness. Combined with self-test emergency operation, the ALUP/1/B/SM3/PC provides both automatic everyday lighting control and emergency functionality, making it an excellent choice for entrances, external walkways, communal areas and commercial building perimeters.

Ansell has engineered the Luppa for efficient installation, with the gear tray positioned on the diffuser so the base can be fitted first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support quick, secure installation, while an L80 72,000-hour LED lifetime and long Ansell warranty provide dependable performance for professional lighting projects.

Ansell Lighting ALUP/1/B/SM3/PC Features

• Ansell Luppa CCT LED bulkhead
• Contemporary black finish
• Integrated self-test emergency functionality
• Integrated photocell for automatic lighting control
• Photocell operation responds to ambient light conditions
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable standard light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding internal and external applications
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws

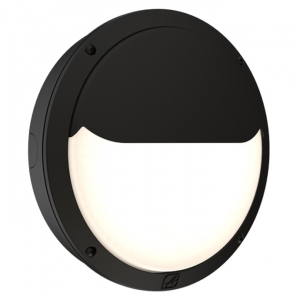

• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated for improved energy efficiency
• Suitable for education, commercial and industrial applications
• Ideal for entrances, external walkways, communal areas and building perimeters
