Ansell Lighting ALUP/1/G Luppa CCT Grey IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead

Ansell Lighting ALUP/1/G Description

The Ansell Lighting ALUP/1/G Luppa CCT Multi Wattage LED Bulkhead is a durable, versatile surface-mounted luminaire designed for education, commercial and industrial lighting applications. Its die-cast aluminium body, grey finish and opal polycarbonate diffuser combine a professional appearance with robust construction suitable for demanding indoor and outdoor environments.

Selectable 16W or 23W power settings provide corresponding light outputs of 2100 or 3200 lumens, allowing installers to configure the performance of a single fitting to suit different locations. The Luppa is also 2CCT selectable between 3000K Warm White and 4000K Cool White, providing additional flexibility to choose the preferred lighting appearance during installation.

Ansell has designed the Luppa for efficient installation, with the gear tray located on the diffuser so the base can be installed first before connecting the diffuser. Removable conduit entries further simplify cable installation, while tamper-proof stainless steel Allen key screws help provide a secure finished installation.

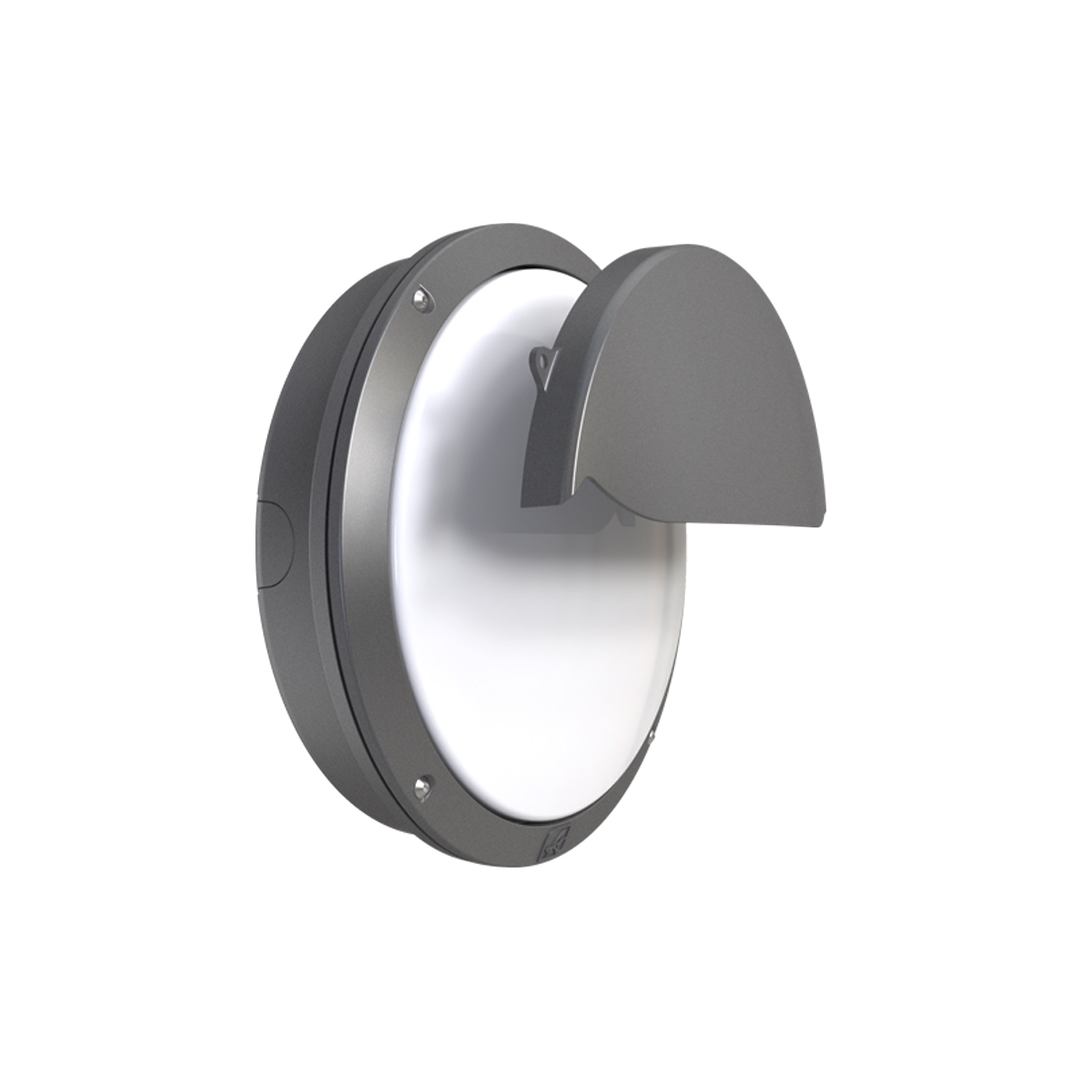

The Luppa also incorporates an LED-board switch that allows the section positioned behind a compatible eyelid trim to be deactivated, helping avoid wasted light and improve energy efficiency when the trim is installed. With IP66 weather protection, IK08 impact resistance and an L80 72,000-hour LED lifetime, the ALUP/1/G provides a dependable, adaptable and installer-friendly LED bulkhead for professional lighting projects.

Ansell Lighting ALUP/1/G Features

• Ansell Luppa CCT Multi Wattage LED bulkhead
• Contemporary grey finish
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable light output
• 2CCT selectable: 3000K / 4000K
• Choose between 3000K Warm White and 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for wall or ceiling surface mounting
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• 220-240V input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Gear tray positioned on diffuser for quick and simple installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch can deactivate the section behind a compatible eyelid trim to improve energy efficiency
• Compatible with XPRESS emergency and microwave sensor upgrades
• Suitable for education, commercial and industrial applications
