Ansell Lighting ALUP/1/G/MWS/SM3 Luppa CCT Grey Self-Test Emergency IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Microwave Sensor

Ansell Lighting ALUP/1/G/MWS/SM3 Description

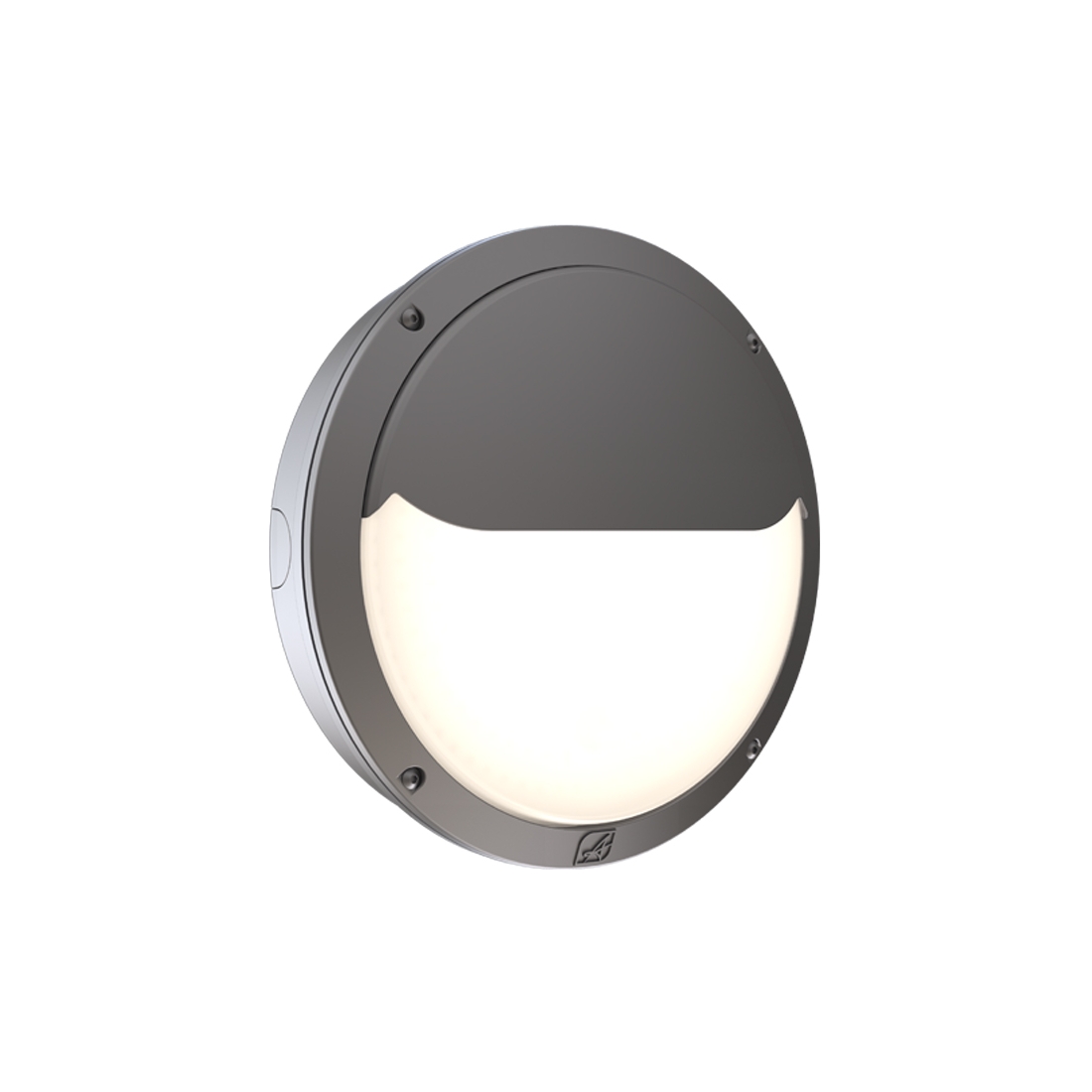

The Ansell Lighting ALUP/1/G/MWS/SM3 Luppa CCT LED Bulkhead combines powerful general illumination, automatic microwave sensor control and self-test emergency functionality within one robust surface-mounted fitting. Its durable grey die-cast aluminium body and opal polycarbonate diffuser provide a professional lighting solution for demanding internal and external environments, supported by IP66 weather protection and IK08 impact resistance.

Selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, allowing installers to configure the fitting to suit different lighting requirements without changing the luminaire. 2CCT selection between 3000K Warm White and 4000K Cool White adds further flexibility, making it easier to standardise on one Luppa bulkhead across different areas of a project.

The integrated microwave sensor provides automatic presence-responsive lighting control, helping reduce unnecessary operating hours in intermittently occupied areas. Combined with self-test emergency functionality, this makes the ALUP/1/G/MWS/SM3 particularly well suited to corridors, stairwells, communal areas, entrances and circulation spaces where automatic everyday lighting and dependable emergency provision are required.

Ansell has also engineered the Luppa for efficient installation, with the gear tray positioned on the diffuser so the base can be installed first before connecting the diffuser. Removable conduit entries and tamper-proof stainless steel Allen key screws further support quick, secure installation, while an L80 72,000-hour LED lifetime provides dependable long-term performance.

Ansell Lighting ALUP/1/G/MWS/SM3 Features

• Ansell Luppa CCT LED bulkhead
• Contemporary grey finish
• Integrated microwave sensor
• Self-test emergency functionality
• Automatic presence-responsive lighting control
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable standard light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding internal and external applications
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated for improved energy efficiency
• Suitable for education, commercial and industrial applications
• Ideal for corridors, stairwells, communal areas, entrances and circulation spaces
