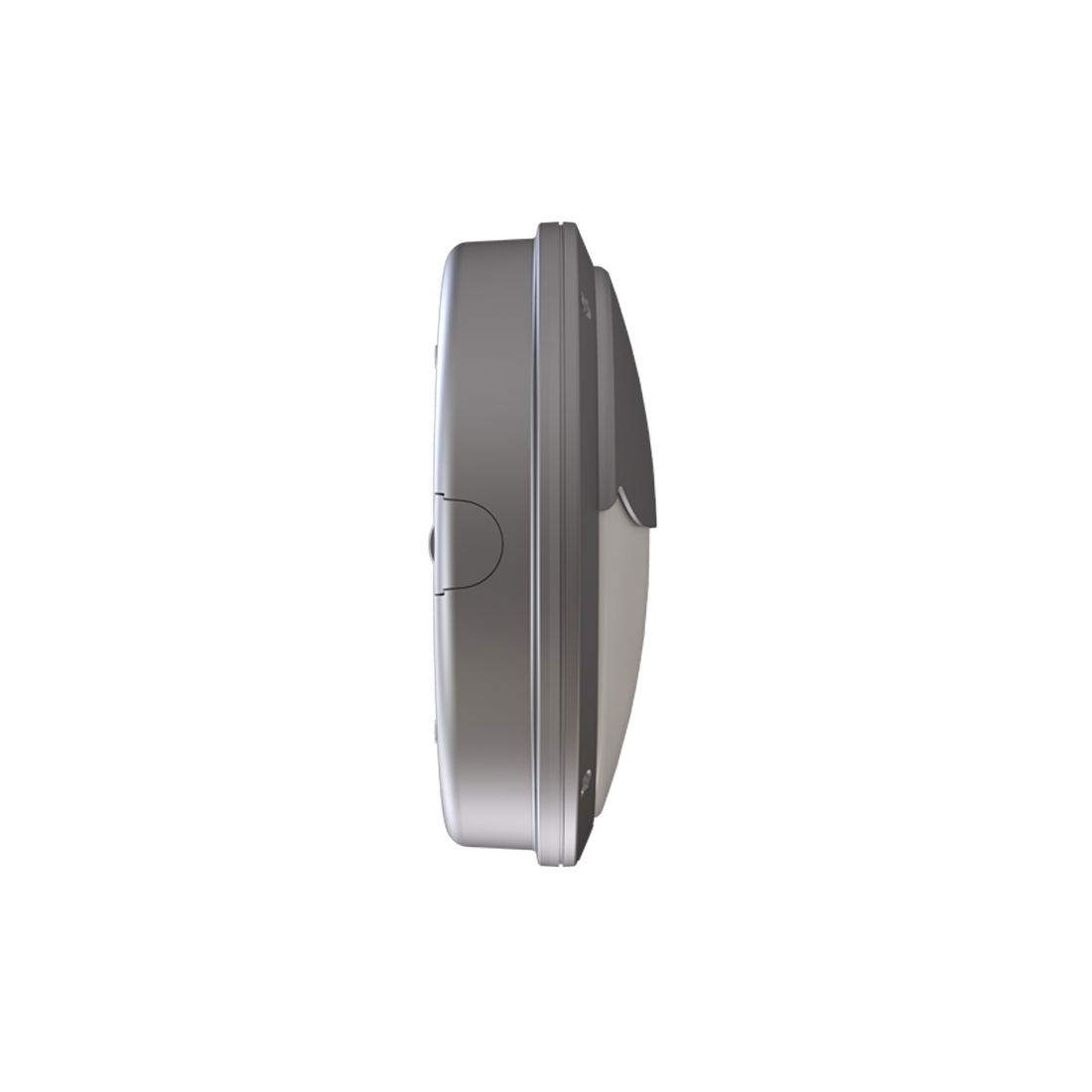

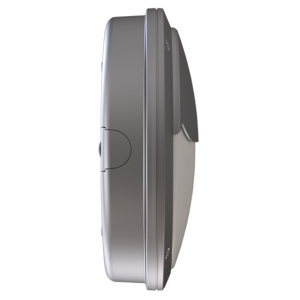

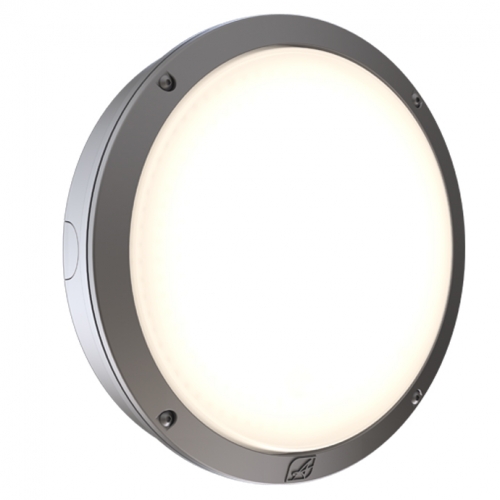

Ansell Lighting ALUP/1/G/PC Luppa CCT Grey IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Photocell

Ansell Lighting ALUP/1/G/PC Description

The Ansell Lighting ALUP/1/G/PC Luppa CCT LED Bulkhead is a versatile surface-mounted luminaire designed for demanding education, commercial and industrial lighting applications. Its robust die-cast aluminium construction, contemporary grey finish and opal polycarbonate diffuser combine durability with a professional appearance, while IP66 weather protection and IK08 impact resistance make it suitable for challenging indoor and outdoor environments.

Selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, enabling installers to tailor performance and energy consumption to the requirements of each project. The fitting is also 2CCT selectable between 3000K Warm White and 4000K Cool White, providing greater flexibility from a single LED bulkhead and helping reduce the number of variants required on site.

The integrated photocell provides automatic lighting control according to ambient light levels, making this Luppa particularly suitable for external areas and locations where illumination is required during hours of darkness. This automatic operation can reduce reliance on manual switching while helping ensure areas such as entrances, walkways and building perimeters are illuminated when required.

Ansell has also engineered the Luppa for efficient installation, positioning the gear tray on the diffuser so the base can be installed first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further simplify and secure installation, while the L80 72,000-hour LED lifetime and 7-year Ansell warranty support dependable long-term performance.

Ansell Lighting ALUP/1/G/PC Features

• Ansell Luppa CCT Multi Wattage LED bulkhead
• Contemporary grey finish
• Integrated photocell for automatic lighting control
• Photocell responds to changing ambient light levels
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C

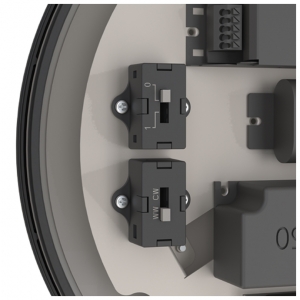

• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated for improved energy efficiency
• Suitable for education, commercial and industrial applications
• Ideal for entrances, external walkways, communal areas and building perimeters
