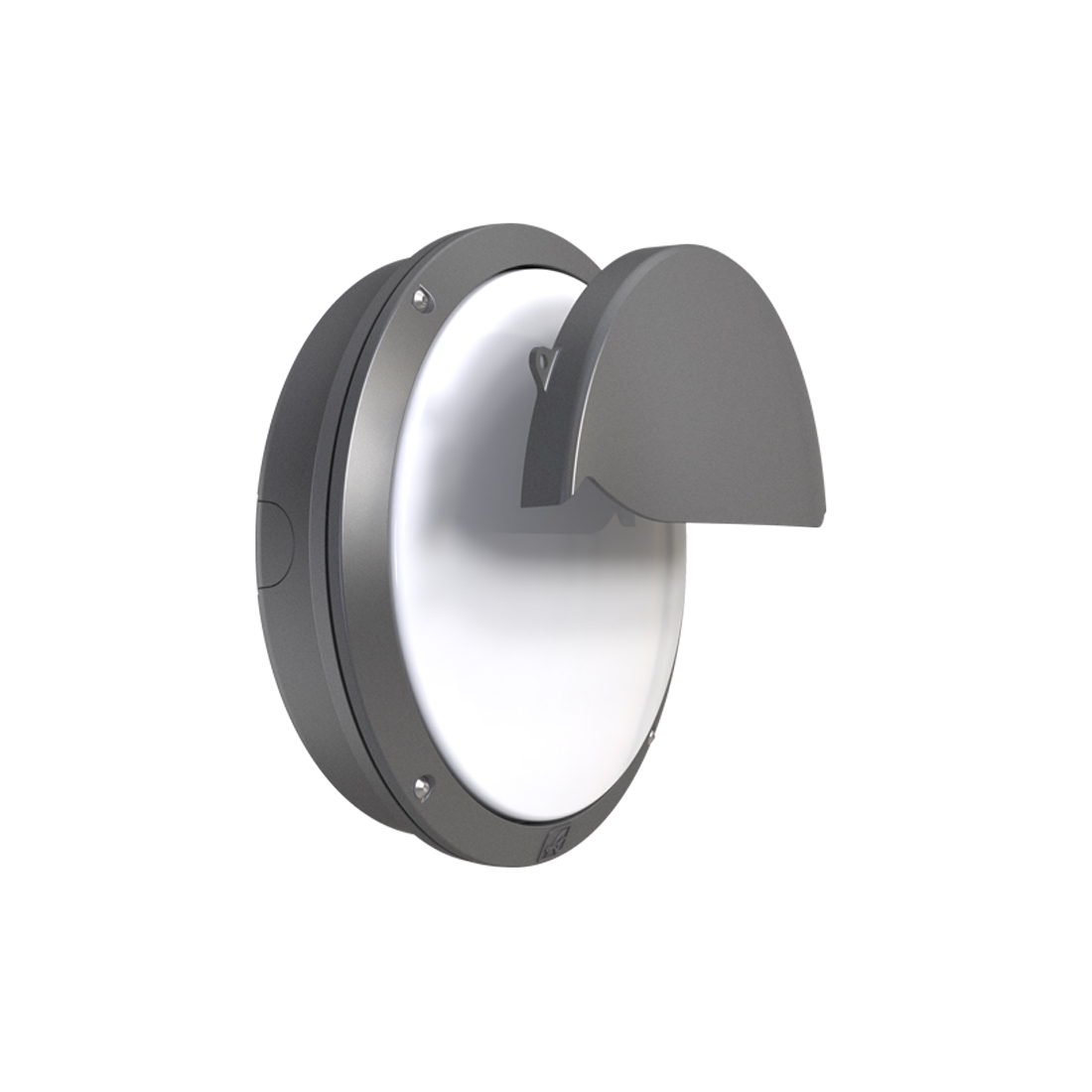

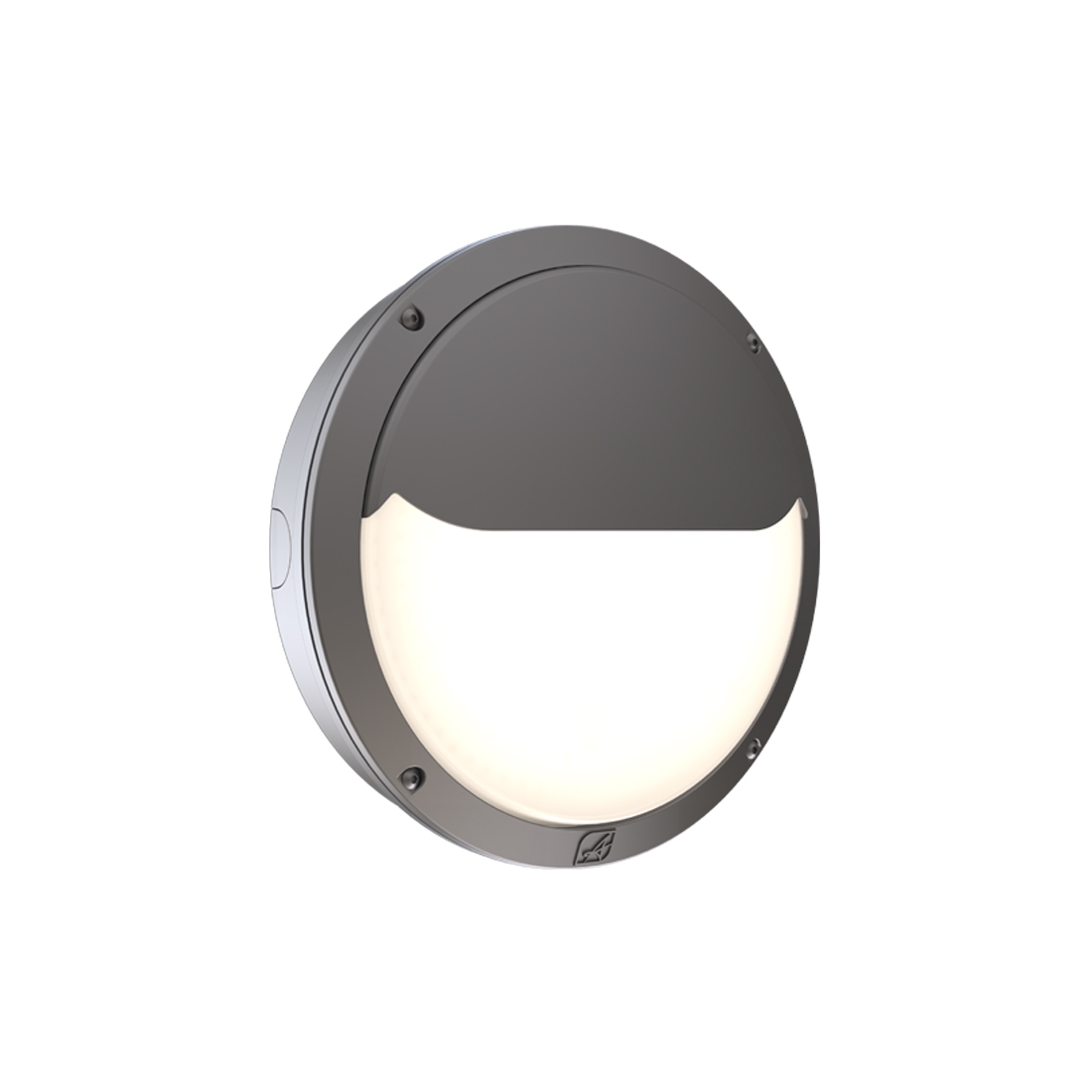

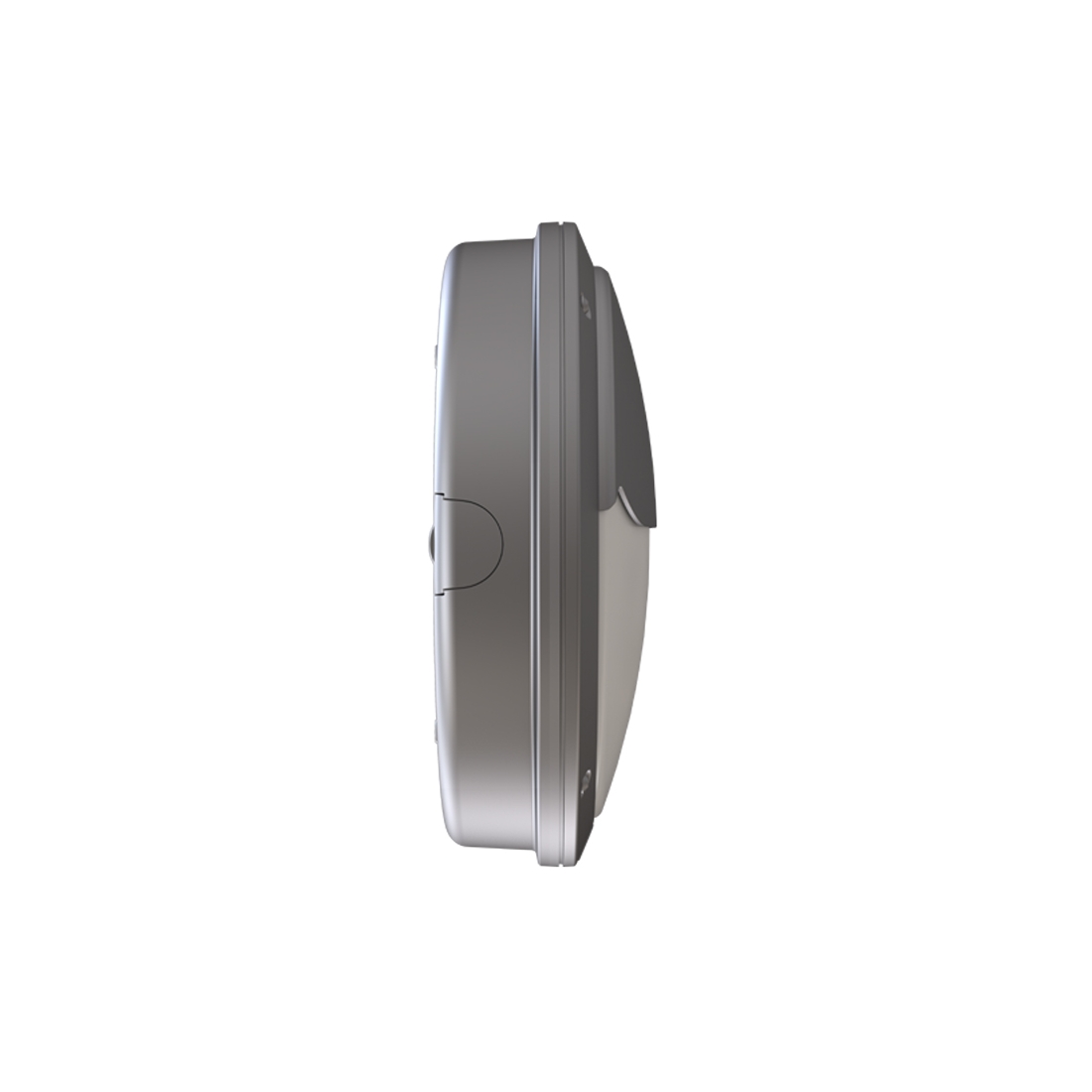

Ansell Lighting ALUP/1/G/SM3 Luppa CCT Grey Self-Test Emergency IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead

Ansell Lighting ALUP/1/G/SM3 Description

The Ansell Lighting ALUP/1/G/SM3 Luppa CCT Self-Test Emergency LED Bulkhead is a versatile, heavy-duty luminaire designed for education, commercial and industrial lighting installations. Its grey die-cast aluminium body and opal polycarbonate diffuser provide a durable construction for demanding locations, supported by IP66 weather protection and IK08 impact resistance.

Selectable 16W or 23W power settings provide corresponding outputs of 2100 or 3200 lumens, allowing installers to tailor light output and energy consumption to the application from a single fitting. The Luppa also offers 2CCT selection between 3000K Warm White and 4000K Cool White, providing further flexibility when specifying lighting for different areas of a project.

Integrated self-test emergency functionality adds essential backup lighting capability while automating routine emergency testing. This makes the ALUP/1/G/SM3 particularly suitable for commercial buildings, schools, communal areas, corridors and other locations where reliable general and emergency lighting are required from one robust luminaire.

Ansell has engineered the Luppa with installers in mind, positioning the gear tray on the diffuser so the base can be fitted first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support quick, secure installation, while the L80 72,000-hour LED lifetime and 7-year Ansell warranty make this grey Luppa bulkhead a strong choice for long-term professional lighting projects.

Ansell Lighting ALUP/1/G/SM3 Features

• Ansell Luppa CCT Self-Test Emergency LED Bulkhead
• Contemporary grey finish
• Integrated self-test emergency functionality
• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable standard light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• 298mm round bulkhead design
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding internal and external applications
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Operating temperature: -20°C to +40°C for standard operation
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries simplify cable installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated, improving energy efficiency
• Suitable for education, commercial and industrial applications
• Ideal for corridors, communal areas, entrances and general/emergency lighting installations
