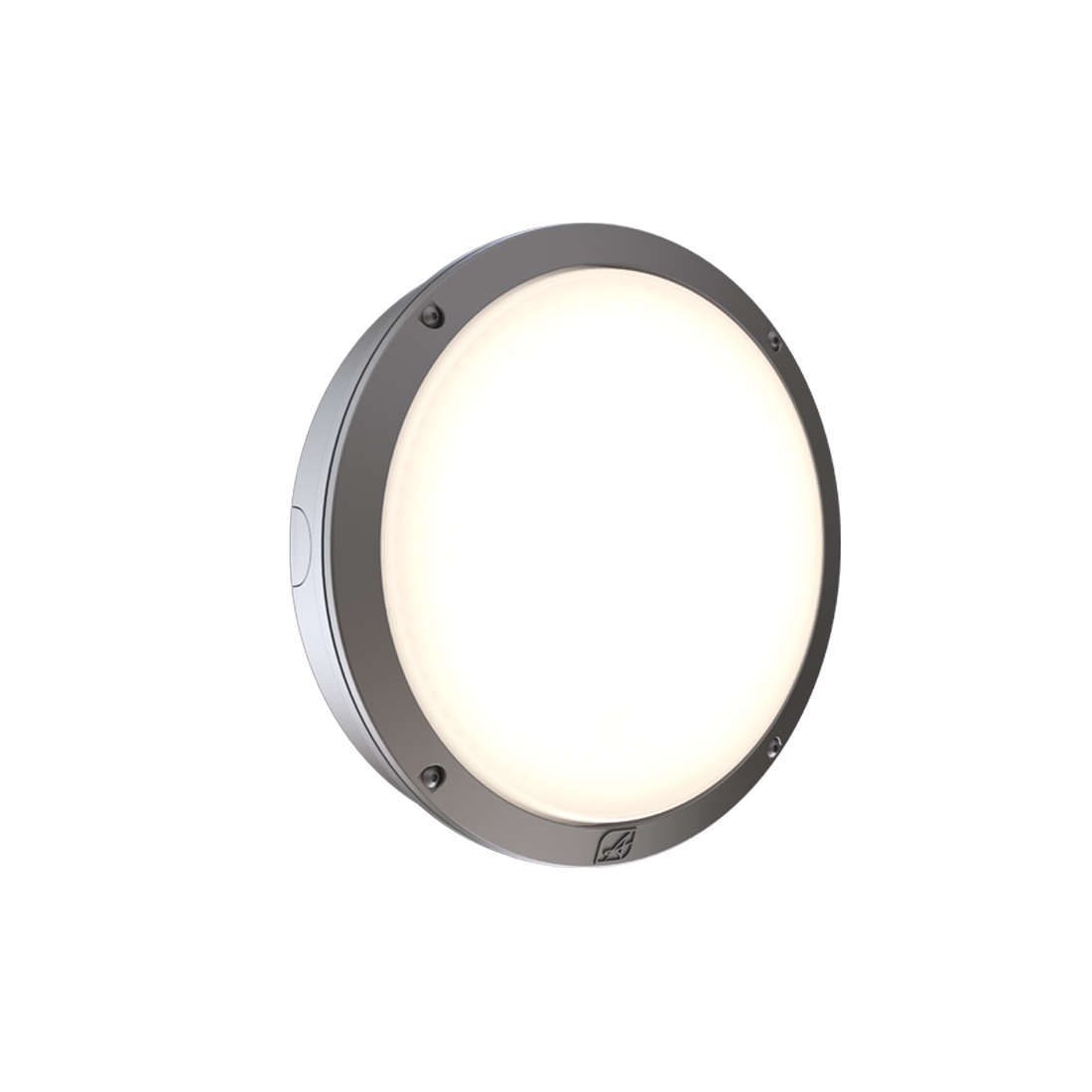

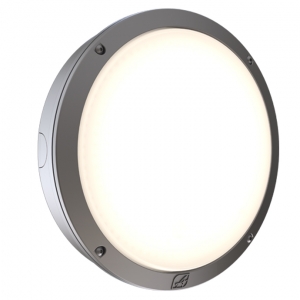

Ansell Lighting ALUP/1/G/SM3/PC Luppa CCT Grey Self-Test Emergency IP66 16W-23W 2100-3200Lm 298mm Round Multi Wattage & 2CCT Selectable LED Bulkhead With Photocell

Ansell Lighting ALUP/1/G/SM3/PC Description

The Ansell Lighting ALUP/1/G/SM3/PC Luppa CCT LED Bulkhead combines dependable general illumination, self-test emergency functionality and photocell control within one robust surface-mounted fitting. Its durable grey die-cast aluminium construction and opal polycarbonate diffuser provide excellent resilience, while IP66 weather protection and IK08 impact resistance make it suitable for demanding internal and external commercial environments.

Selectable 16W or 23W power settings provide corresponding standard light outputs of 2100 or 3200 lumens, allowing installers to tailor performance and energy consumption to the requirements of the installation. The Luppa also offers 2CCT selection between 3000K Warm White and 4000K Cool White, providing useful flexibility from a single luminaire and helping simplify product selection across larger projects.

The integrated photocell provides automatic light-responsive control, making this version particularly useful for entrances, external walkways, building perimeters and other locations requiring automatic operation according to ambient light conditions. Combined with self-test emergency functionality, the ALUP/1/G/SM3/PC provides an efficient solution where both automatic everyday lighting control and dependable emergency provision are required.

Ansell has also designed the Luppa around straightforward installation, positioning the gear tray on the diffuser so the base can be fitted first before the diffuser is connected. Removable conduit entries and tamper-proof stainless steel Allen key screws further support secure, installer-friendly fitting, while its L80 72,000-hour LED lifetime provides dependable long-term performance.

Ansell Lighting ALUP/1/G/SM3/PC Features

• Ansell Luppa CCT LED bulkhead
• Contemporary grey finish
• Integrated self-test emergency functionality
• Integrated photocell for automatic light-responsive operation

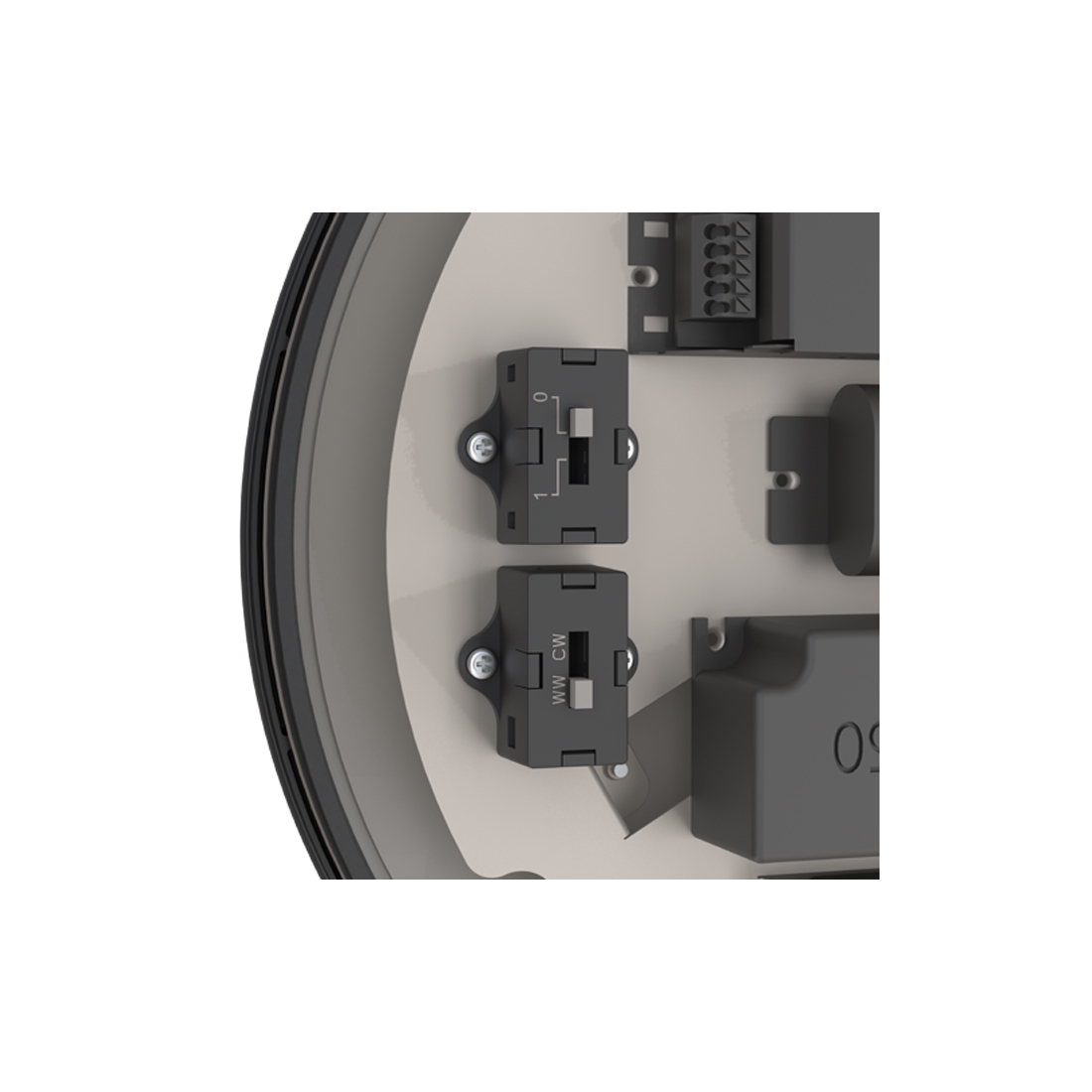

• 16W / 23W selectable wattage
• 2100 / 3200 lumens selectable standard light output
• 2CCT selectable: 3000K / 4000K
• Choice of 3000K Warm White or 4000K Cool White
• Dimensions: Ø298mm × 95mm depth
• Robust die-cast aluminium construction
• Opal polycarbonate diffuser
• Suitable for surface wall or ceiling mounting
• IP66 rated for demanding internal and external applications
• IK08 impact resistance
• 220-240V AC input
• 50/60Hz
• CRI 80
• SDCM 3
• 107° beam angle
• Class I construction
• L80 72,000-hour LED lifetime
• Gear tray located on diffuser for quick and straightforward installation
• Removable conduit entries help simplify installation
• Tamper-proof stainless steel Allen key screws
• Integrated LED-board switch allows the section behind a compatible eyelid trim to be deactivated for improved energy efficiency
• Suitable for education, commercial and industrial applications
• Ideal for entrances, external walkways, communal areas and building perimeters
