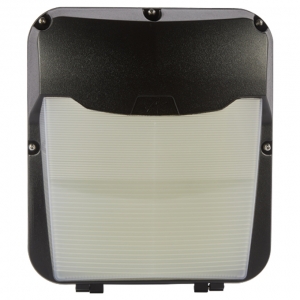

Ansell Lighting ALWP/1/M3 Lynx Black Emergency IP65 17-26W 1400-2200Lm Wattage & 2CCT Selectable LED Wallpack Style Bulkhead With Opal Diffuser
The Ansell Lighting ALWP/1/M3 Lynx Emergency LED Wallpack combines selectable wattage and colour temperature with integral maintained emergency operation. Its robust black IP65 and IK08 construction delivers up to 2200 lumens, with a dedicated downward emergency light distribution.
Order code: ALWP/1/M3
Manufacturer: Ansell Lighting
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Ansell Lighting ALWP/1/M3 Description
The Ansell ALWP/1/M3 Lynx Emergency LED Wallpack is a robust wall-mounted luminaire designed for commercial, education and industrial applications requiring both general illumination and emergency lighting provision. Selectable power and colour temperature provide 17W or 26W output and 3000K or 4000K illumination, with up to 2200 lumens delivered from a single versatile fitting. The integral maintained emergency function provides dedicated downward illumination with a 60° emergency beam, helping make the fitting particularly suitable for circulation areas, entrances and other locations requiring emergency lighting. A durable black die-cast aluminium body combines with a vandal-resistant polycarbonate Fresnel lens diffuser, tamper-proof fixings and IP65/IK08 protection for demanding environments. Multiple conduit entries and BESA box fixing points further enhance the flexibility of this versatile Ansell Lynx emergency wallpack.
Ansell Lighting ALWP/1/M3 Features
- Product type: LED emergency wallpack / wall-mounted bulkhead
- Emergency function: Integral maintained emergency
- Dedicated emergency operation provides downward illumination
- Emergency beam angle: 60°
- Finish: Black
- Wattage selectable: 17W / 26W
- Light output: 1400–2200 lumens
- 2CCT selectable: 3000K warm white / 4000K cool white
- Two wattage and two colour temperature options within a single luminaire
- IP rating: IP65
- Impact rating: IK08
- CRI: Ra 80
- Standard beam angle: 70°
- LED lifetime: L80 54,000 hours
- Input voltage: 220–240V
- Frequency: 50/60Hz
- Electrical class: Class I
- Robust die-cast aluminium body
- Vandal-resistant polycarbonate Fresnel lens diffuser
- Tamper-proof Allen key screws supplied as standard
- Multiple conduit entry points
- BESA box fixing points
- Dimensions: 300mm (H) x 264mm (W) x 120mm (D)
- Designed for wall-mounted commercial and industrial lighting applications
- Photocell, microwave sensor, dimming and smart-control variants available within the wider Lynx range
- Manufacturer warranty: 5 years
