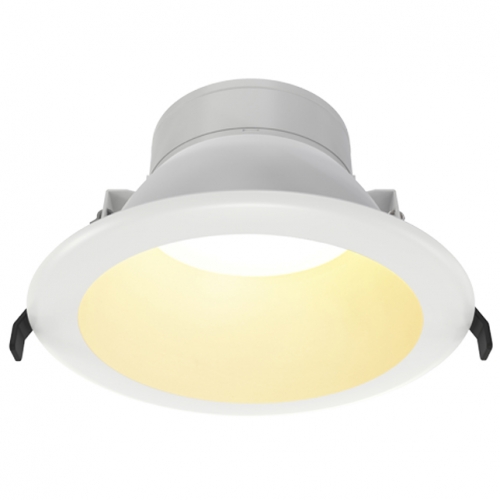

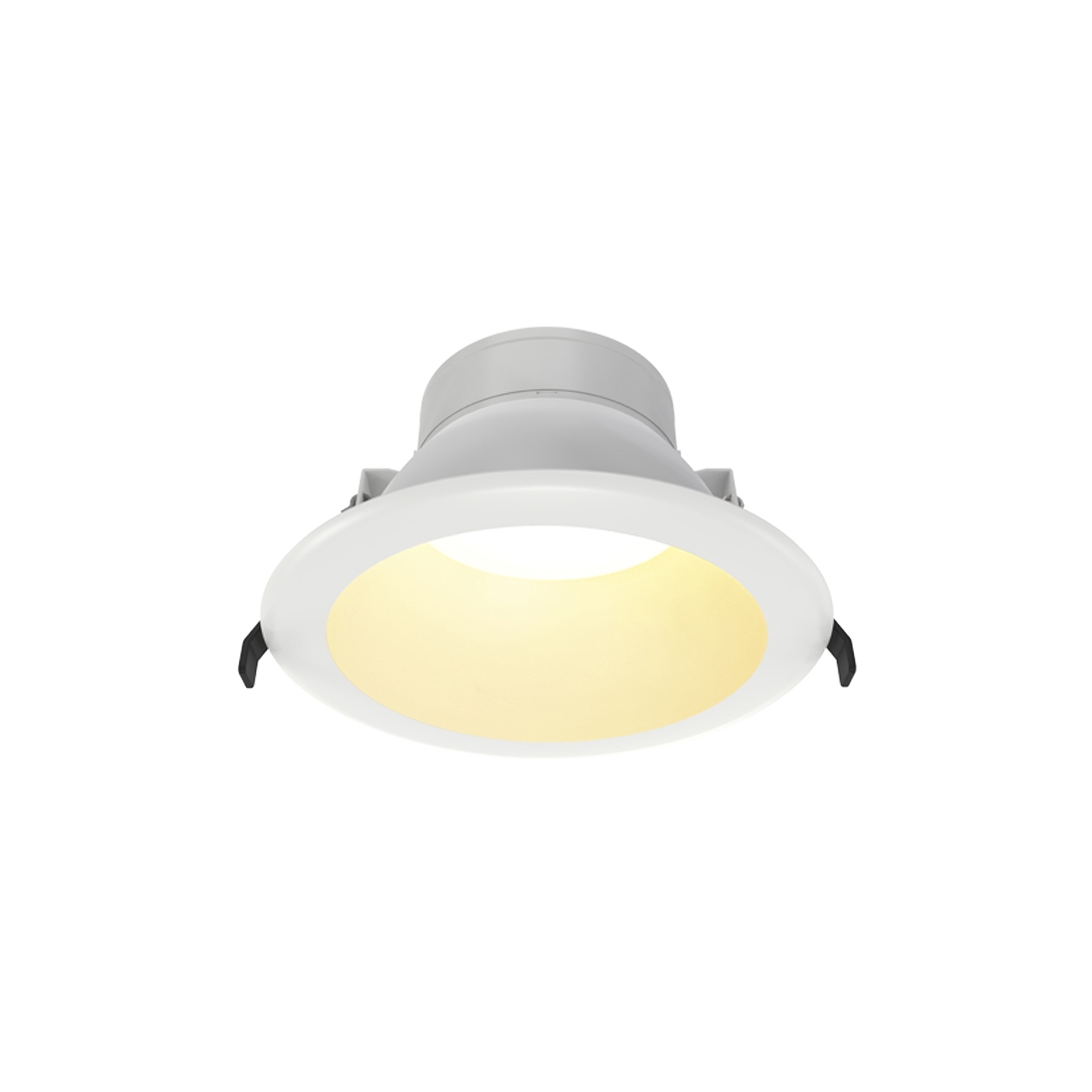

Ansell Lighting AVAN4/1 Vantage CCT 4 White IP20 24W-27W 3000-3500Lm 230mm Round Wattage & 3CCT Selectable LED Commercial Downlight
The Ansell Lighting AVAN4/1 Vantage CCT 4 is a powerful wattage and 3CCT selectable LED commercial downlight, delivering 3000-3500 lumens with selectable 24W or 27W output. Designed for larger commercial spaces, it combines UGR<19 glare control, flexible on-site configuration and high-efficiency LED performance.
Order code: AVAN4/1
Manufacturer: Ansell Lighting
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Ansell Lighting AVAN4/1 Description
The Ansell Lighting AVAN4/1 Vantage CCT 4 White LED Commercial Downlight has been engineered to provide high-output, energy-efficient illumination for offices, educational facilities, healthcare environments, retail premises and other commercial interiors. Featuring selectable 24W or 27W power settings alongside three selectable colour temperatures (3000K Warm White, 4000K Cool White and 6500K Daylight), the fitting can be configured during installation to meet the exact lighting requirements of each project while reducing product variation and simplifying stock management. Its deep recessed reflector delivers UGR<19 compliant performance, minimising glare and creating a comfortable working environment without compromising light output. Designed to fit existing 210mm ceiling cut-outs, the Vantage CCT 4 is an excellent choice for both refurbishment and new-build applications. Supplied with a remote plug-and-play LED driver, compatible with dimming and Ansell OCTO Casambi wireless lighting control, and featuring a 100,000-hour L80 LED lifetime, it provides a dependable, future-ready commercial lighting solution with reduced maintenance costs.
Ansell Lighting AVAN4/1 Features
- Ansell Lighting AVAN4/1 Vantage CCT 4 LED commercial downlight
- Selectable wattage: 24W or 27W
- Light output from 3000 to 3500 lumens
- 3CCT selectable: 3000K Warm White, 4000K Cool White or 6500K Daylight
- UGR<19 compliant for reduced glare and improved visual comfort
- Deep recessed reflector for controlled, comfortable illumination
- High efficacy of up to 130 lumens per watt
- White architectural finish
- IP20 rated for indoor commercial applications
- CRI 80 colour rendering
- 36° beam angle
- 230mm diameter
- Designed to fit 210mm ceiling cut-outs, making it ideal for refurbishment and new installations
- Class II construction
- 220-240V AC, 50/60Hz
- Operating temperature: -20°C to +40°C
- Remote plug-and-play LED driver supplied
- Compatible with dimming and Ansell OCTO Casambi wireless lighting control
- L80 100,000-hour LED lifetime for reduced maintenance and lower operating costs
- Ideal for offices, schools, healthcare facilities, retail stores, reception areas, corridors and large commercial interiors
