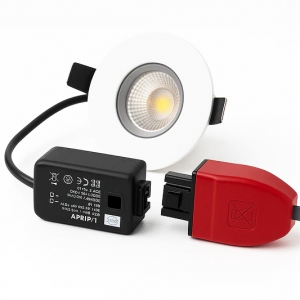

Ansell Lighting APRIP/1/MP1 Pack of 10 Prism Pro IP65 Fire Rated Downlight Dimmable LED in Matt White

The Ansell Lighting APRIP/1 Prism Pro is an IP65 Fire Rated Downlight with Dimmable LED in Matt White. It is CCT selectable between 2700K, 3000K, 4000K and 6000K and recommended for residential and hospitality applications. Iit features a matt white bezel to complement all interiors, a wide 65° beam angle for optimal light distribution, and a 5/7W LED for ambient illumination. This IP65 dimmable fire-rated downlight boasts an integral driver with loop-in and loop-out terminals for easy installation and meets Part B, Part C, Part E and Part L of Building Regulations.

Order code: APRIP/1/MP1
Manufacturer: Ansell Lighting
GTIN:

£ 89.39 incl. VAT
£ 74.49 excl. VAT

Trade Price: £ 493.00
You SAVE
£ 418.51 or 85%
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Ansell Lighting APRIP/1/MP1 Description

The Ansell Lighting APRIP/1/MP1 is a pack of 10 Prism ProIP65 rated dimmable 5/7W wattage selectable fixed integrated LED downlight with colour selectable LEDs and matt white bezel that offers maximum flexibility when installing in domestic or commercial installations.

This new generation fire-rated downlight has a low profile design with remote driver allowing installation into shallow ceiling voids.

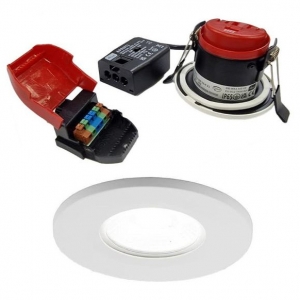

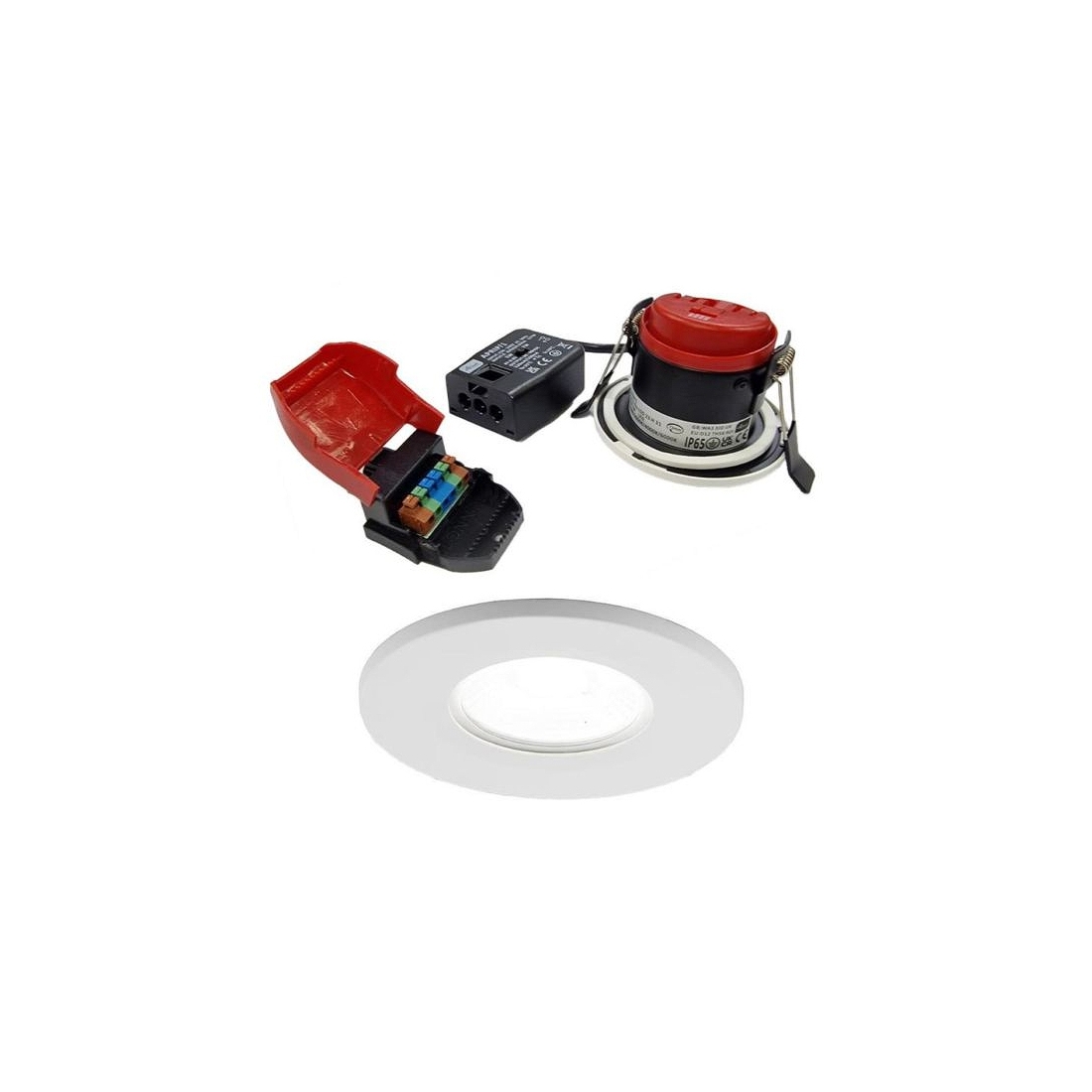

New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation.

Supplied with a remote detachable LED driver with 2x1.5mm² + CPC push-fit loop-in, loop-out colour coded push-fit piano terminals provide an easy and efficient installation.

Includes the matt white aluminium twist and lock bezel with polished chrome, matt black and satin chrome alternatives available to order separately.

Energy-efficient with colour selectable LEDs using the integral switch which allows the choice extra warm white 2700K, warm white 3000K, cool white 4000K and Daylight White 6000K coloured LEDs. Delivers 560Lm - 740Lm when cool white (4000K) is selected.

The wide 65 degree beam angle offers increased light distribution. It has a quoted L70 LED lifespan of 60,000 hours under normal use.

Fully tested for 30, 60, and 90 minute ceiling types to meet Part B of Building Regulations. Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations.

The APRIP/1/MP1's IP65 rating ensures that it is both dust tight and water jet resistant allowing this downlight to be fitted anywhere in the home - including the bathroom.

Ansell Lighting APRIP/1/MP1

  • Ansell Lighting APRIP/1/MP1 5/7W integrated fixed LED fire rated downlight pack

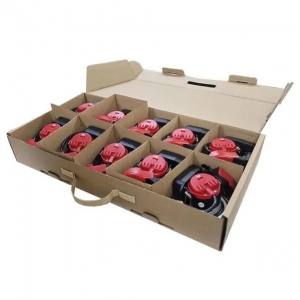

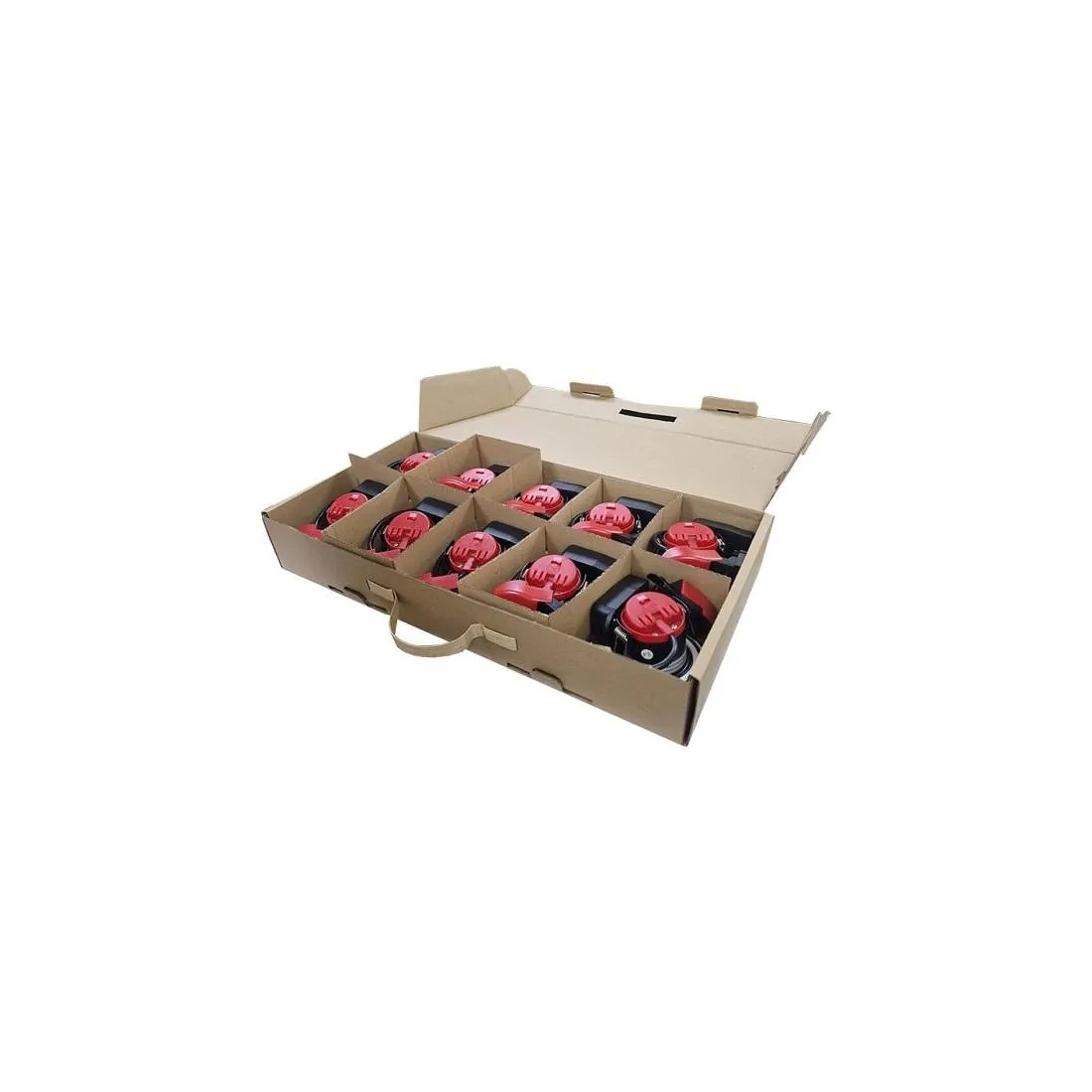

  • Sold as a pack of 10 downlights
  • Supplied with bezel finished in matt white as standard
  • Manufactured using high quality aluminium for a durable and reliable design
  • IP65 rated allowing safe installation in a range of interior applications
  • Wattage selectable between 5W and 7W output
  • CCT Colour temperature selectable LEDs via integrated switch
  • Colour temperatures: extra warm white (2700K), warm white (3000K), cool white (4000K), daylight white (6000K)
  • Delivers 560Lm - 740Lm when cool white (4000K) is selected
  • LED lifespan: L70 60,000 hours
  • Benefits from low power consumption and high light output
  • Dimmable as standard
  • 65 degree beam angle offers increased light distribution
  • Low profile design and remote driver allow installation into shallow ceiling voids
  • 2 part detachable connector design ensuring a quick and simple installation
  • Detachable remote driver with 2x1.5mm² + CPC push-fit loop-in, loop-out colour coded push-fit piano terminals provide an easy and efficient installation
  • Matt black, polished chrome and satin chrome bezels available to order separately
  • Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
  • Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
  • Dimensions: Diameter Ø: 90mm | Cut-Out: 73mm | Recess Depth: 62mm
