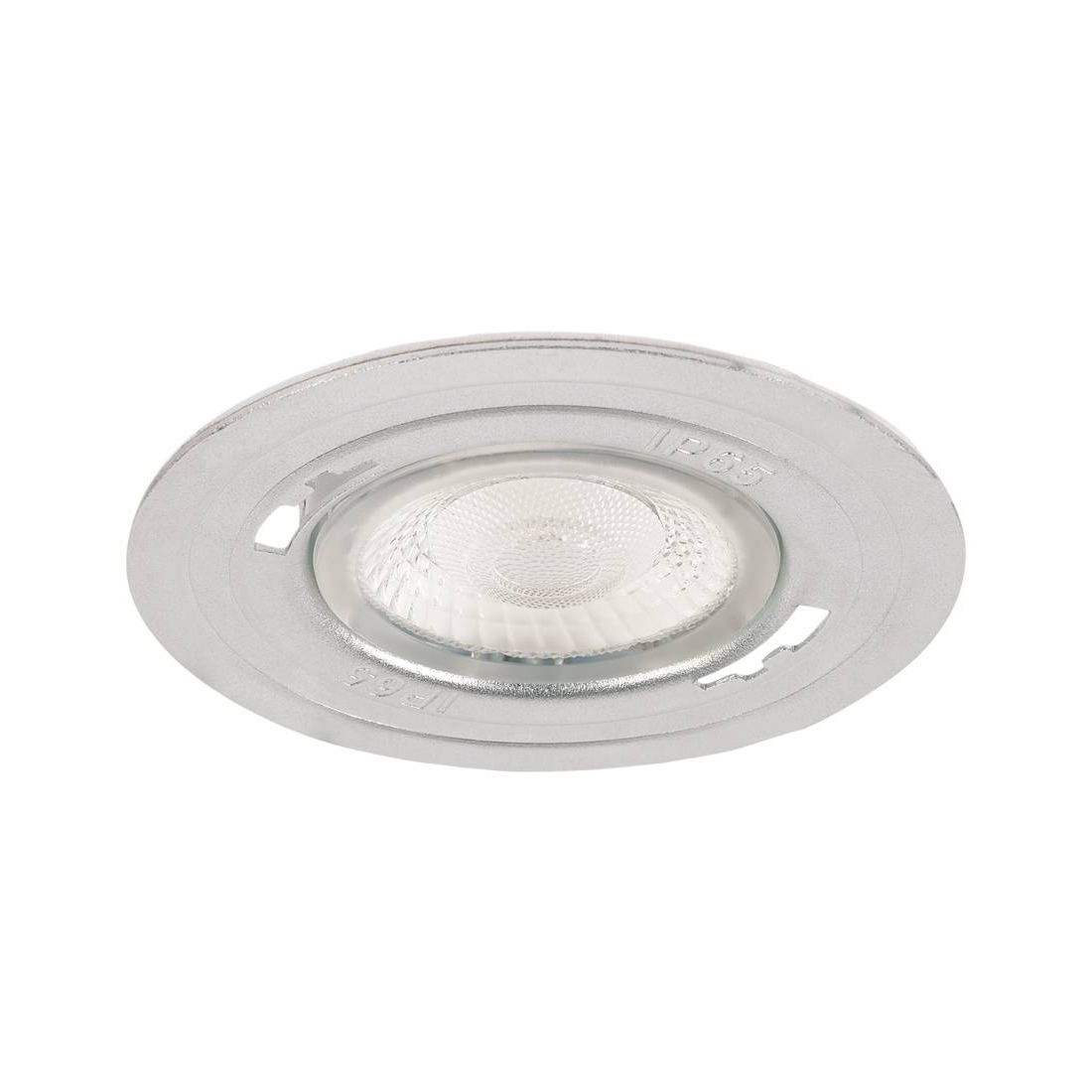

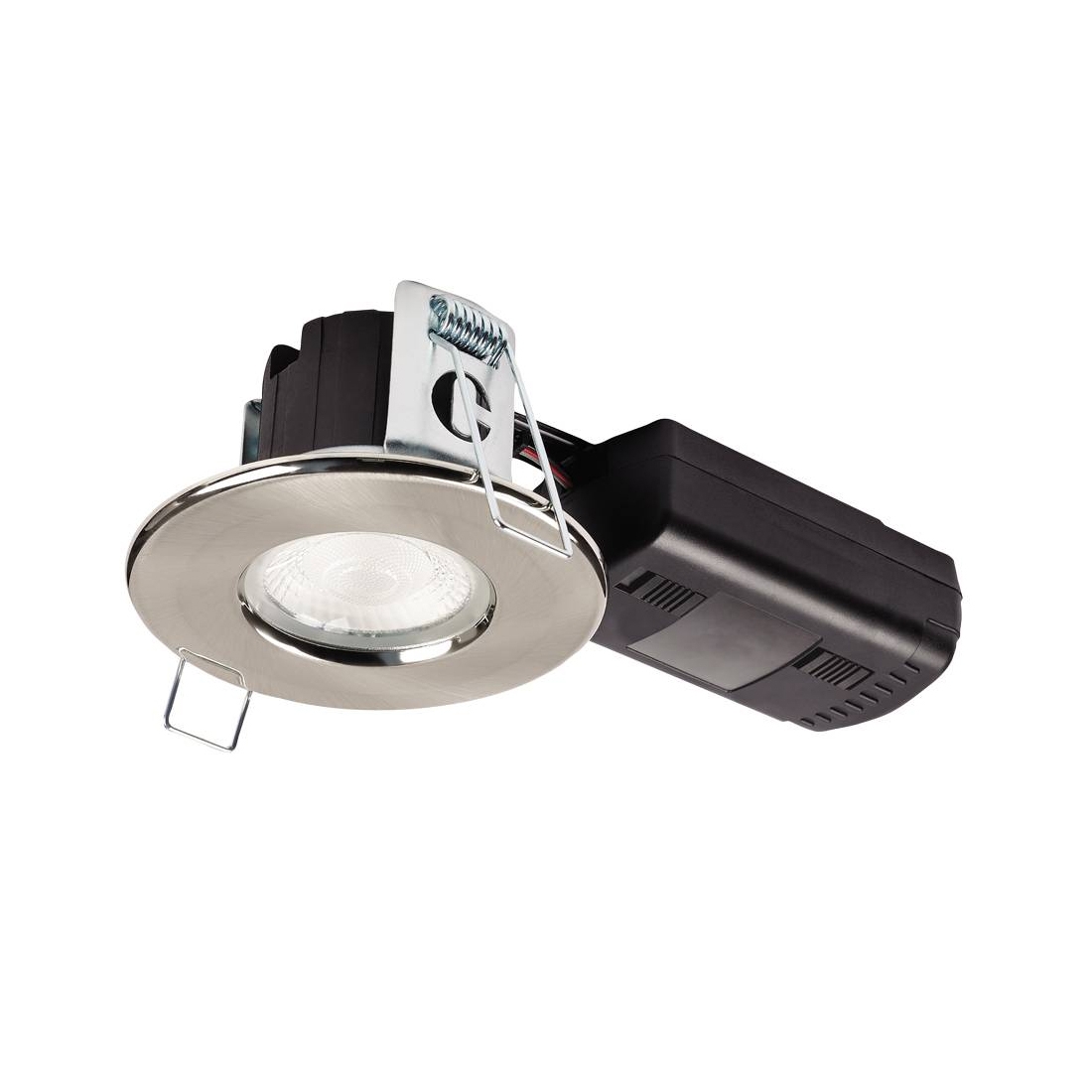

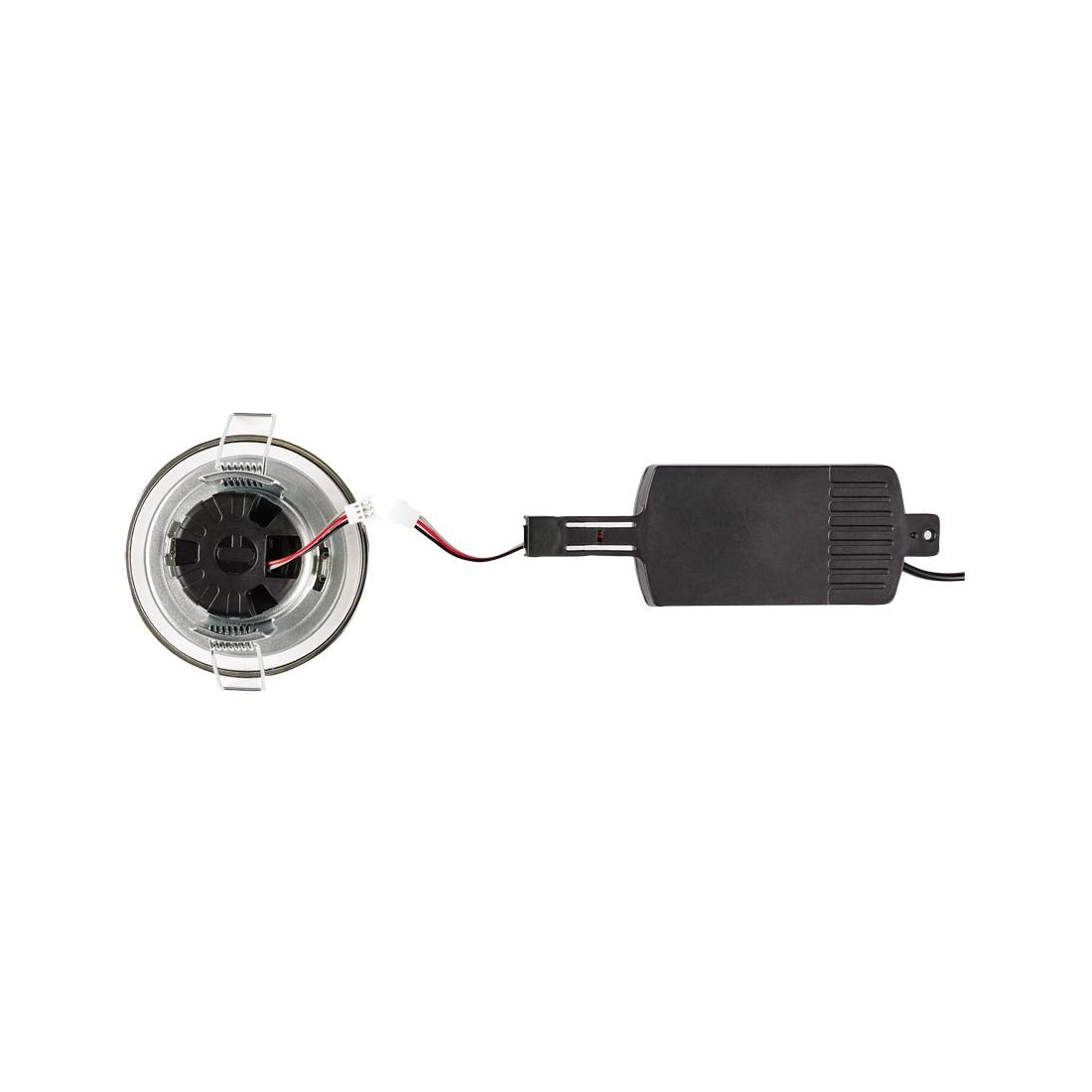

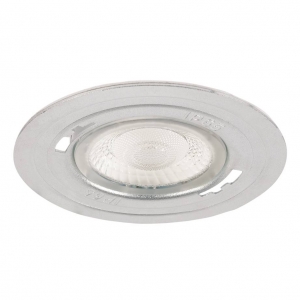

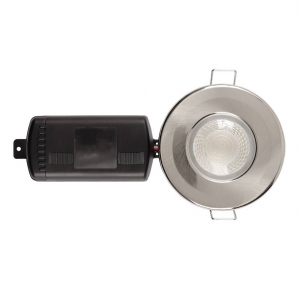

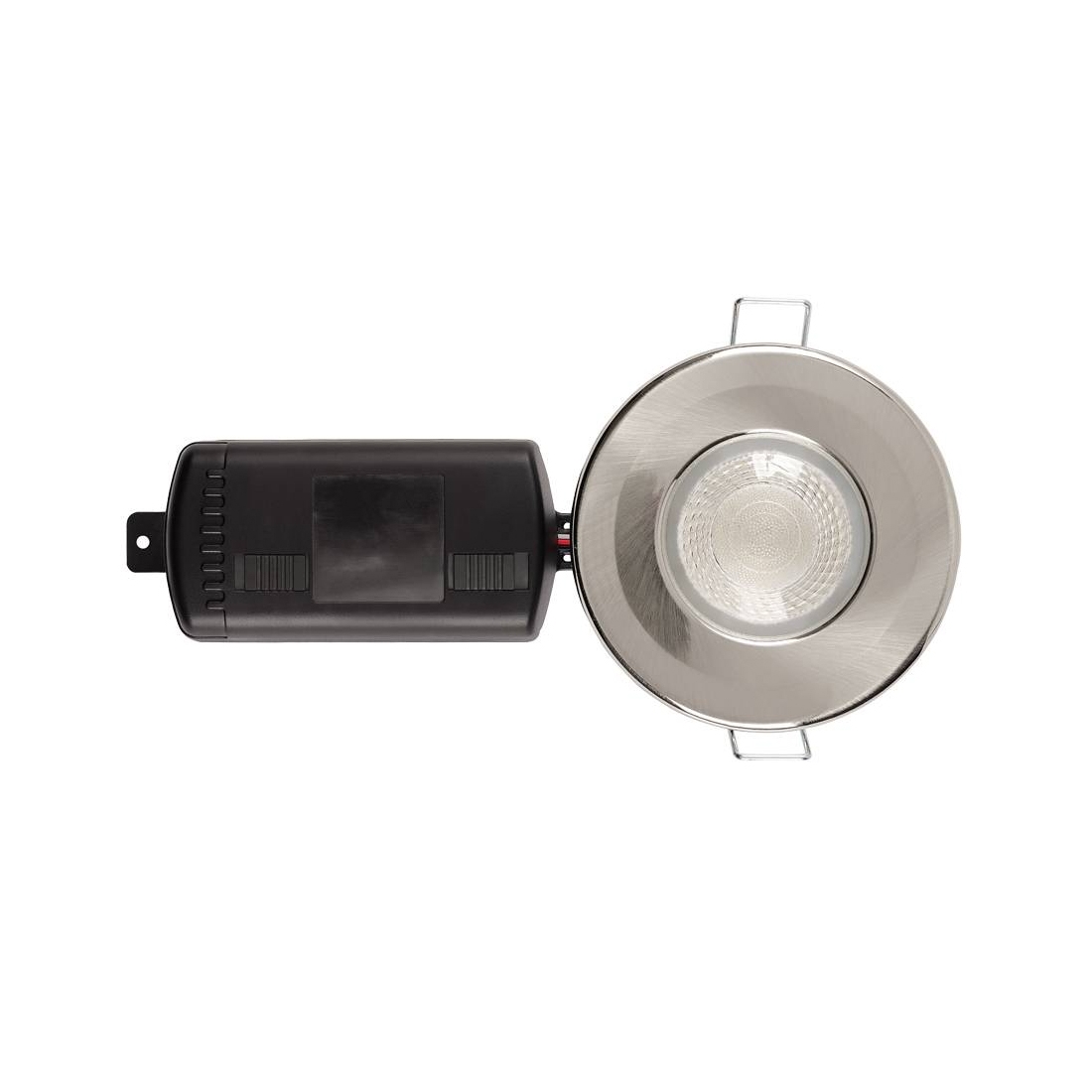

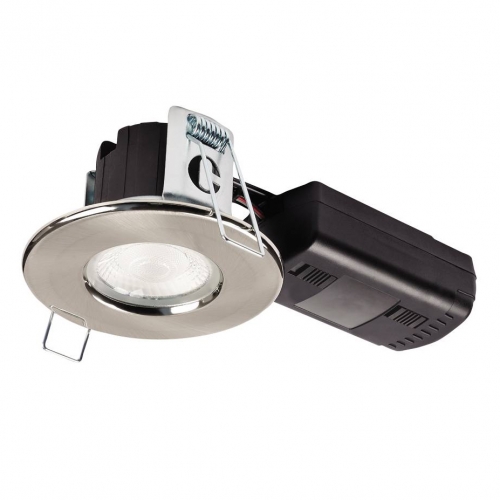

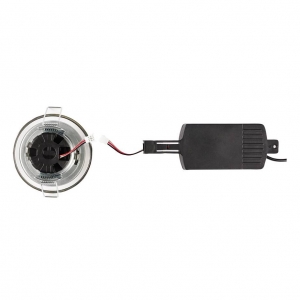

Collingwood Lighting DLE5245500 H2 Pro IP65 5-7W 550-850Lm Fixed Wattage + 3CCT Selectable LED Fire Rated Downlight - Requires Bezel

Collingwood DLE5245500 Description

The Collingwood Lighting DLE5245500 H2 Pro is a highly adaptable LED downlight designed to meet the demands of modern residential and commercial lighting installations. Combining wattage selection with 3CCT colour temperature control, this advanced fitting allows installers to tailor both brightness and light tone on-site—reducing stock requirements and increasing flexibility.

With selectable power output between 5W and 7W, the H2 Pro delivers between 550 and 850 lumens, offering excellent energy efficiency while providing the option for brighter illumination where needed. The 3CCT functionality (typically 2700K, 3000K, and 4000K) allows users to switch between warm, neutral, and cool white light, making it suitable for a wide range of environments from residential living spaces to commercial applications.

Engineered for durability and compliance, the DLE5245500 features an IP65 rating, making it ideal for bathroom zones and areas exposed to moisture. It is also fully fire-rated for 30, 60, and 90-minute ceilings, helping to maintain ceiling integrity and meet UK building regulations.

Designed with ease of installation in mind, the fitting includes Collingwood’s Easy-Fit connector and a compact profile suitable for shallow voids. Supplied without a bezel, it offers full flexibility to choose a compatible finish to match your interior design.

Collingwood DLE5245500 Features

• Range: H2 Pro
• Wattage: Selectable 5W / 7W
• Lumen Output: 550–850lm (depending on wattage selection)
• CCT Selectable: 2700K / 3000K / 4000K
• Fixed (non-adjustable)
• IP Rating: IP65 – suitable for bathrooms (Zone 1)
• Fire Rating: 30, 60 & 90 minutes fire-rated
• Dimmable: Mains dimmable (leading & trailing edge compatible)
• Beam Angle: Typically ~55°–60° for general lighting
• Cut-Out: 64–72mm
• Shallow profile for tight ceiling voids
• Voltage: 220–240V AC
• Easy-Fit connector for quick installation
• Bezel: Requires separate twist & lock bezel (sold separately)
• Insulation Coverable: Yes
• CRI: ≥80 for accurate colour rendering
• LED Lifetime: Up to 70,000 hours
• Ideal for kitchens, bathrooms, hallways, and commercial spaces
• Meets UK building regulations (Parts B, C, E & P)
