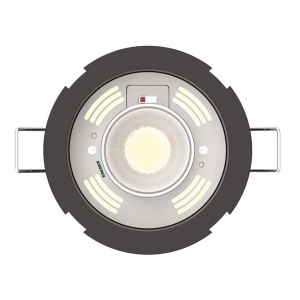

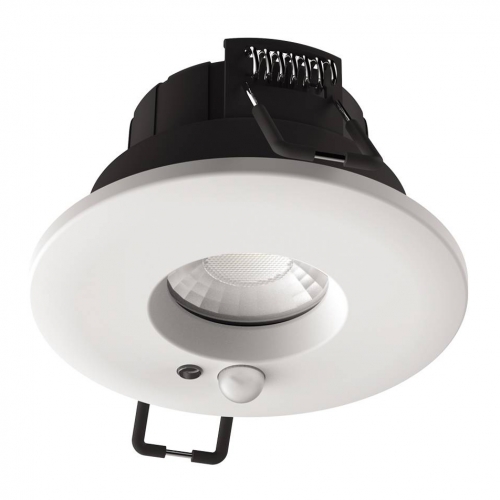

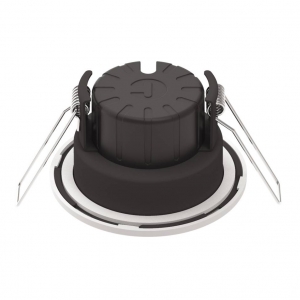

Collingwood Lighting DLSENSE H2 Sense 6W 600-675Lm IP65 Fixed 3CCT Selectable LED Fire-Rated Downlight With Integral PIR & Switched Live Out - Requires Bezel

Collingwood Lighting DLSENSE Description

The Collingwood Lighting DLSENSE H2 Sense is an advanced fire-rated LED downlight with integral PIR motion sensor, designed to combine high-quality illumination with smart occupancy control. Delivering between 600 and 675 lumens from just 6W, this compact fitting provides efficient lighting while automatically activating when movement is detected.

Featuring 3CCT selectable colour temperature (3000K / 4000K / 6000K), the H2 Sense allows installers to choose the ideal light tone on-site, reducing stock complexity and improving flexibility across projects. The integrated PIR sensor enhances energy efficiency by ensuring lighting is only active when required, making it ideal for hallways, landings, bathrooms, utility areas, and commercial spaces.

With an IP65 rating from below, the DLSENSE is suitable for bathroom installations (Zones 1 & 2 when installed correctly). Its fire-rated construction maintains ceiling integrity for up to 30, 60, and 90 minutes (subject to ceiling type), supporting compliance with building regulations.

The fitting also includes a switched live output, enabling multiple luminaires to be triggered from one sensor. Please note: this unit requires a compatible H2 Lite bezel, which is sold separately, allowing finish customisation to suit the interior design.

Collingwood Lighting DLSENSE Features

• Collingwood DLSENSE H2 Sense LED downlight
• 6W LED output delivering 600–675 lumens
• Integrated PIR motion sensor for automatic lighting control
• Includes switched live output for linking additional fittings
• 3CCT selectable: 3000K / 4000K / 6000K
• IP65 rated (from below) – suitable for bathrooms and damp areas
• Fire-rated for 30, 60 & 90 minute ceilings (subject to installation type)
• Fixed downlight design for clean, modern appearance
• Requires compatible H2 Lite bezel (sold separately)
• Cut-out size: 64–72mm
• Recess depth: approx. 50mm
• Beam angle: approx. 38°
• CRI >80 for accurate colour rendering
• LED lifetime: up to 50,000 hours
• Ideal for residential, hospitality and light commercial applications
