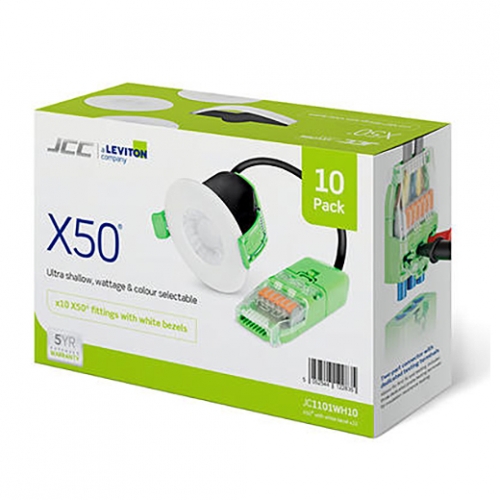

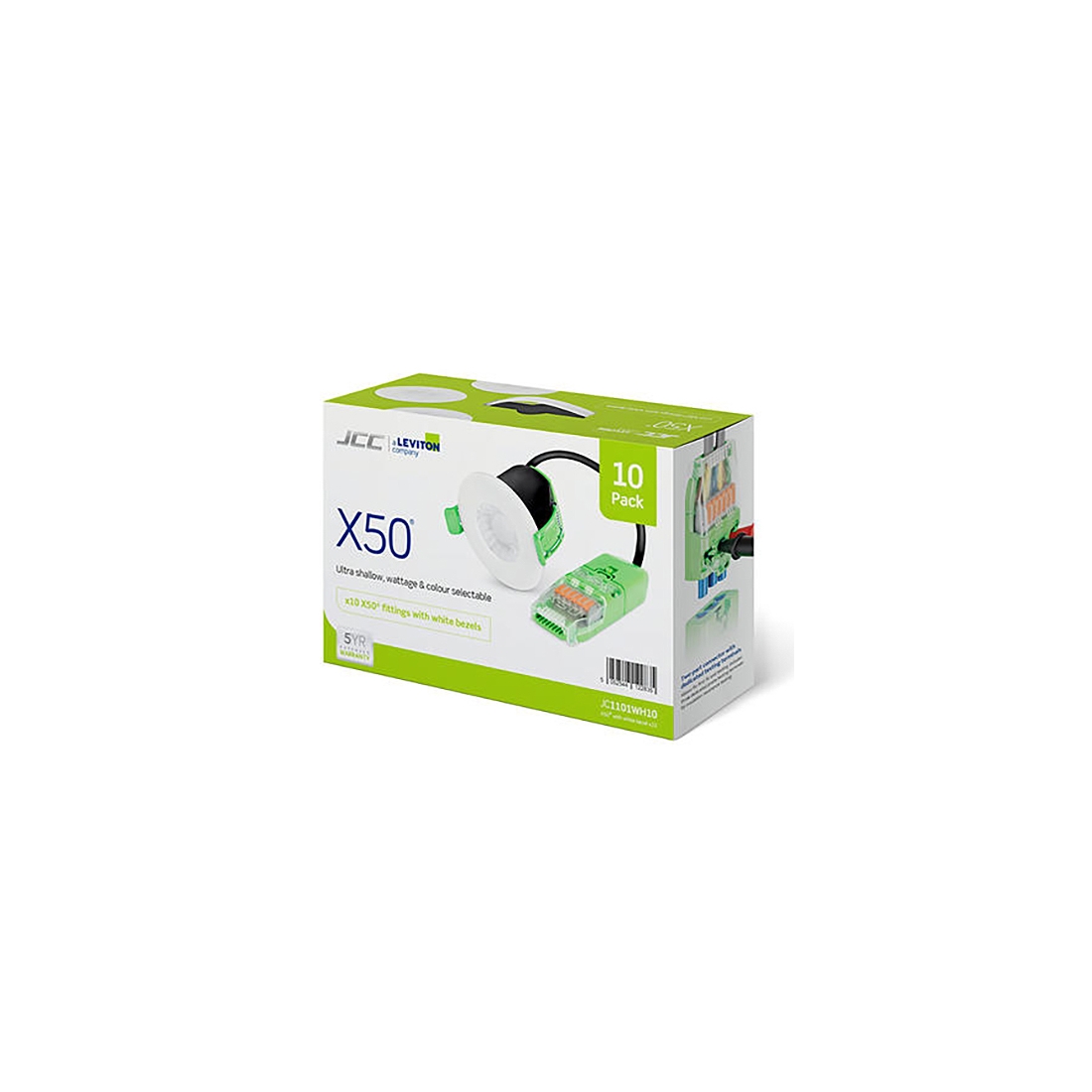

JCC Lighting JC1101/WH10 X50 White (Pack Of 10) IP65 3.5W/5W Wattage Selectable Fixed CCT LED Fire Rated Downlights

JCC Lighting JC1101/WH10 Description

The JCC Lighting X50 JC1101/WH10 is a pack of 10x IP65 wattage and colour selectable dimmable fixed integrated LED fire-rated downlight supplied with white twist-and-lock bezel that is the natural successor to the hugely successful V50 series downlights.

With its ultra-low profile, it is suitable for shallow 50mm ceiling voids. IP65 rated, ideal for use in living areas, kitchens and bathrooms (internal use only) - perfect for all domestic and commercial applications.

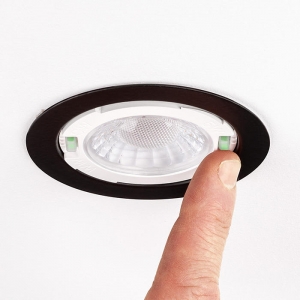

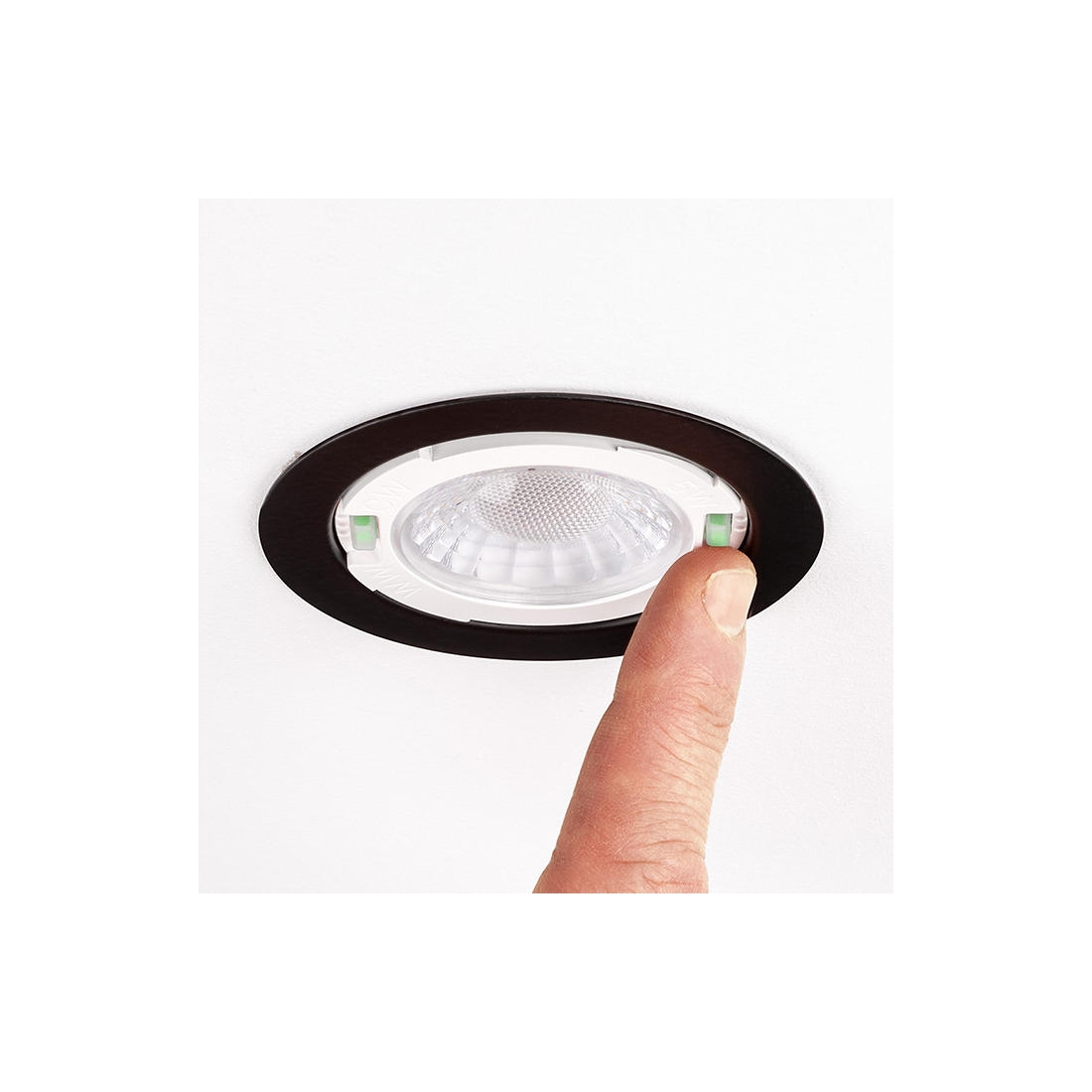

Features simple 2-way switches that allows users to adjust the wattage and LED colour temperature from below the ceiling. The switches are covered by a silicone gasket that ensures IP65 protection is maintained. Choose between 3.5W or 5W and between warm white (3000K), cool white (4000K) and neutral white (5700K) colour temperatures. Energy-efficient and super bright delivering 480Lm (3.5W) or 700Lm when 5W is selected.

The wide 60 degree beam angle helps to spread light out more evenly across a wider surface area. Projected LED lifespan of over 60,000 hours in normal use conditions.

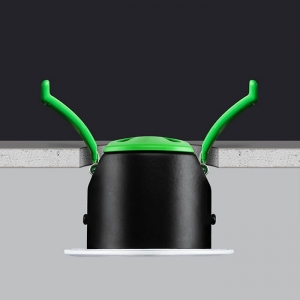

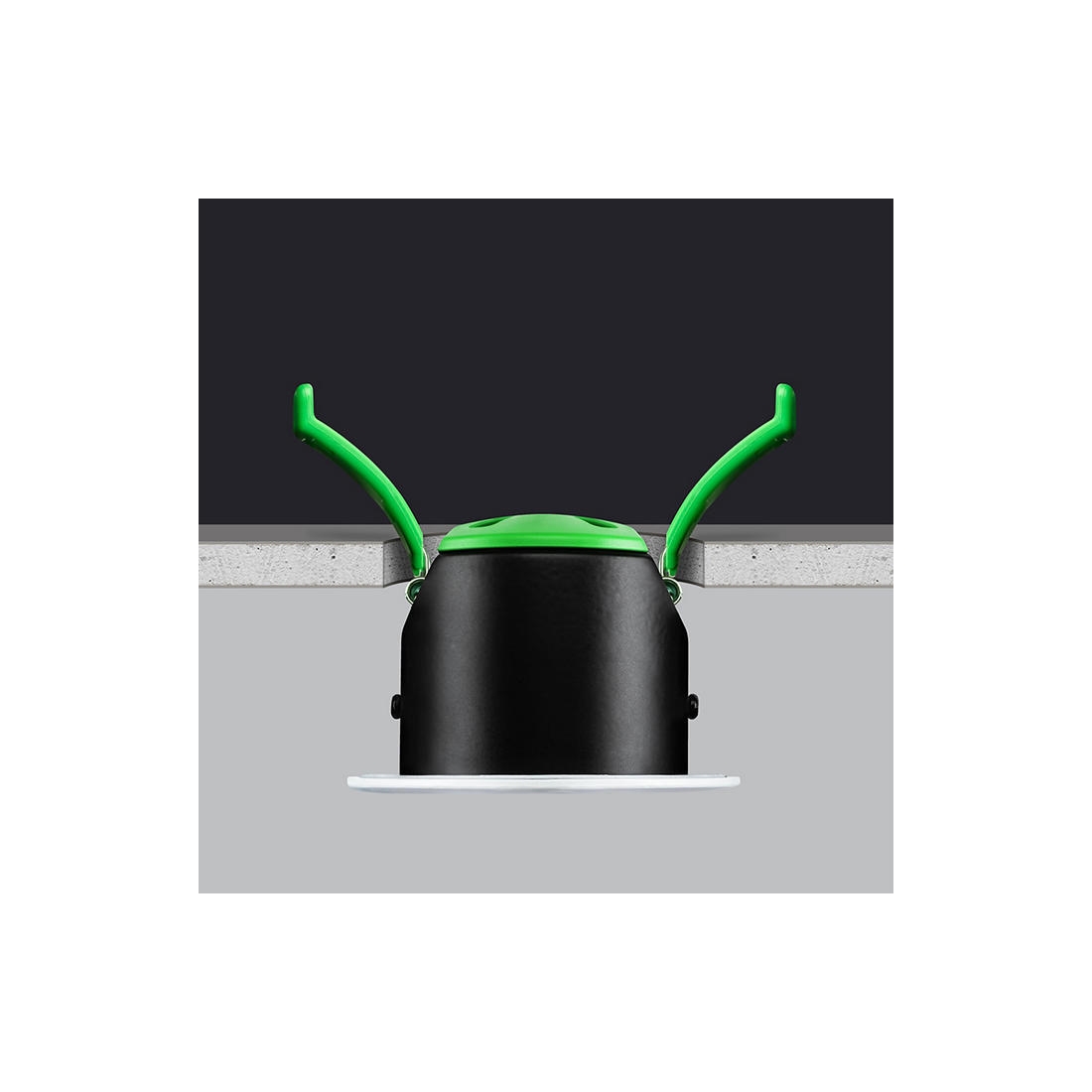

The easy glide protective clips on X50 are designed to reduce ceiling damage and allow for simple ceiling access. These strong spring clips ensures that the body of the fitting remains securely fixed in place. Low profile design enables the fitting to be installed in applications that have a shallow 50mm ceiling void.

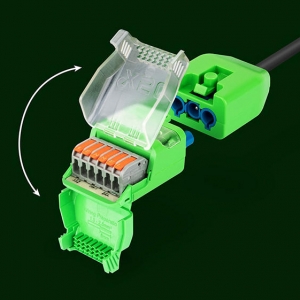

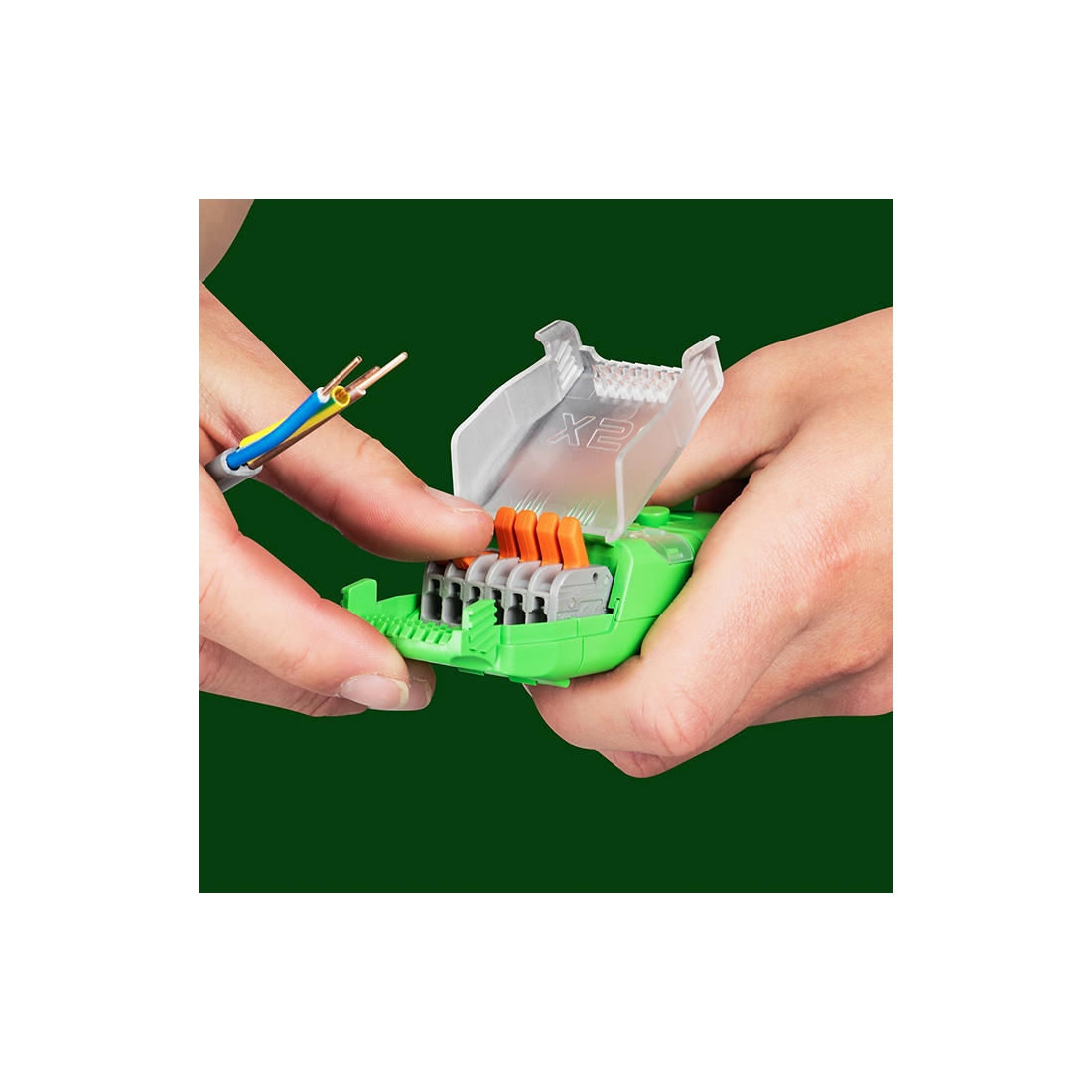

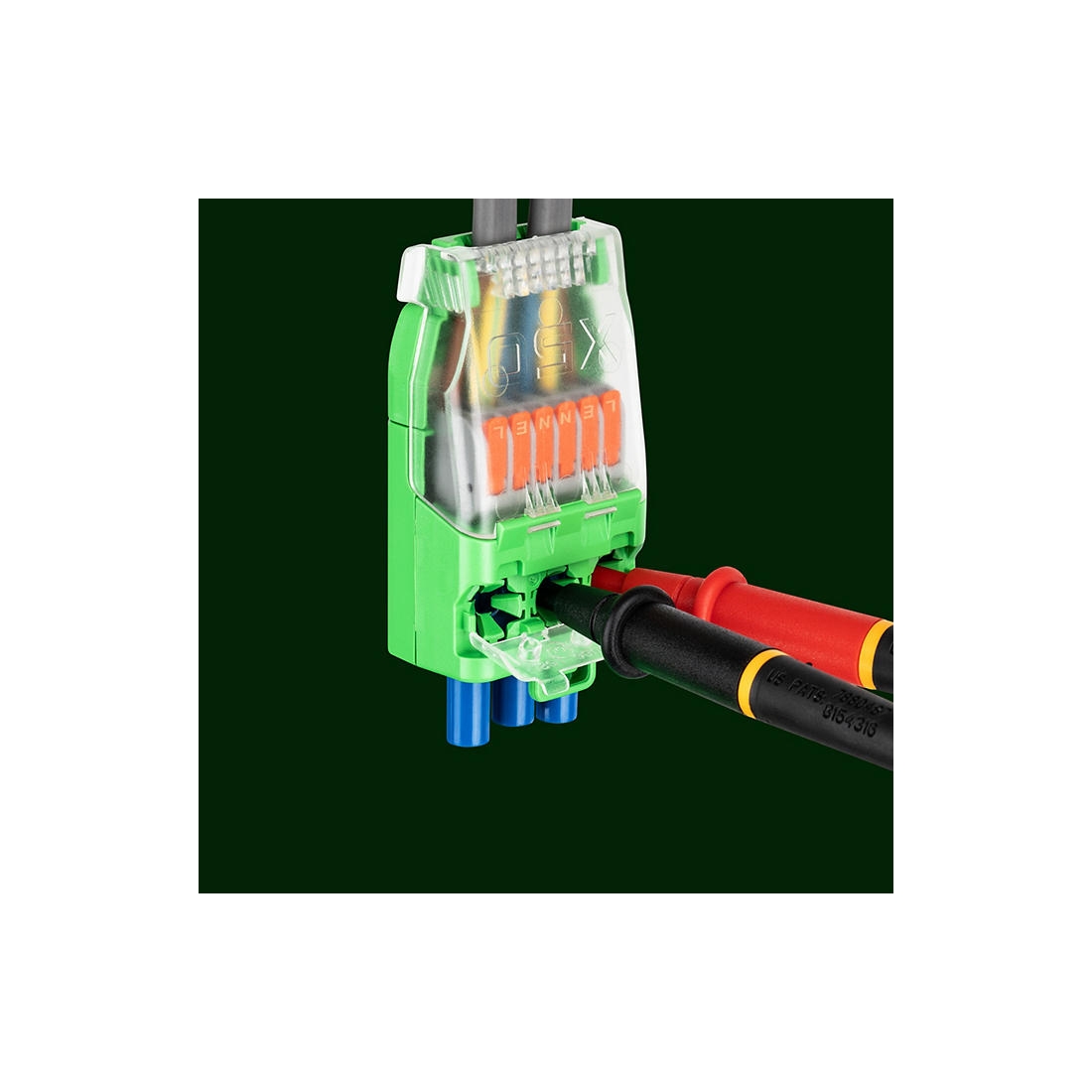

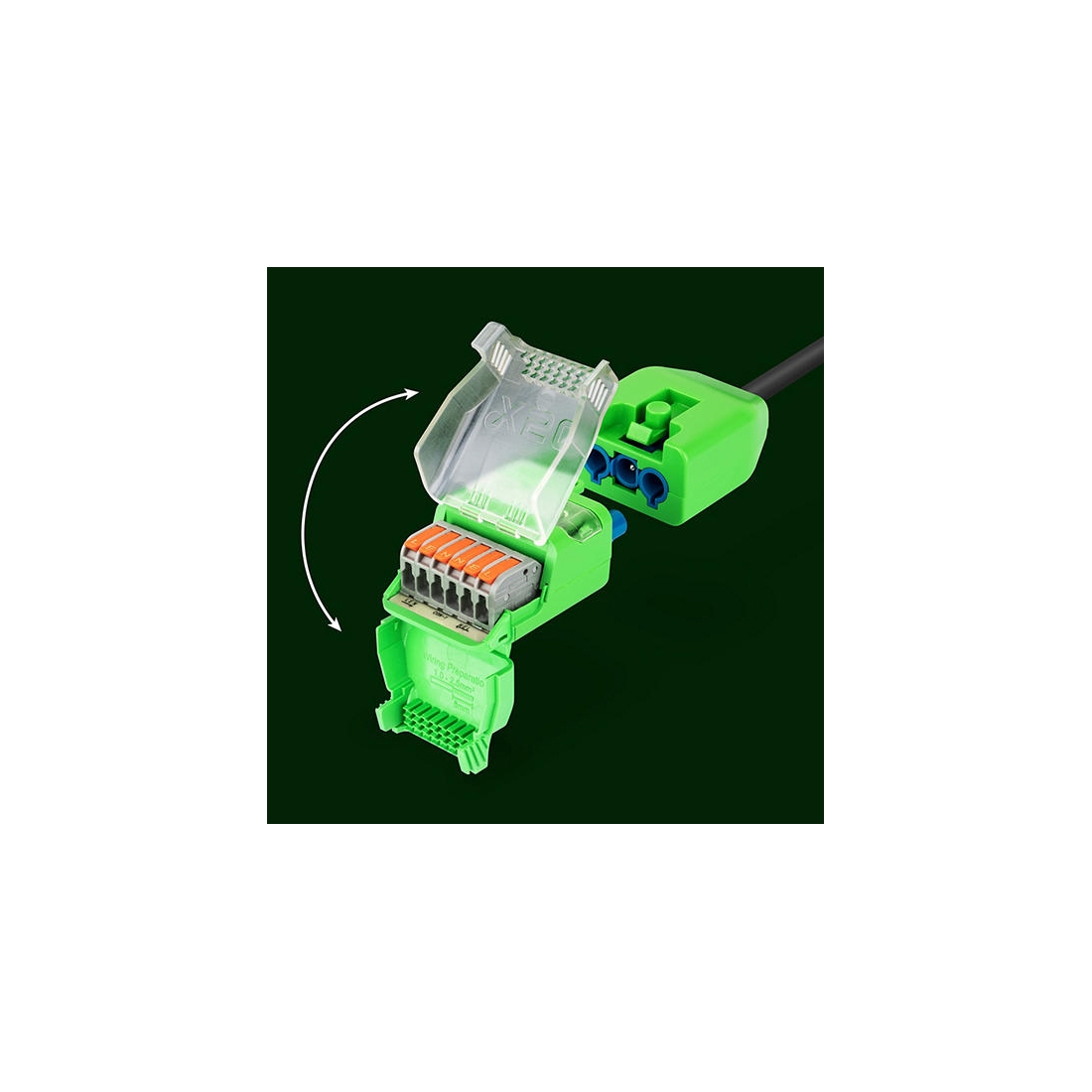

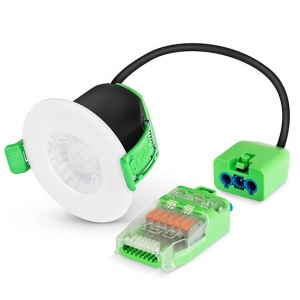

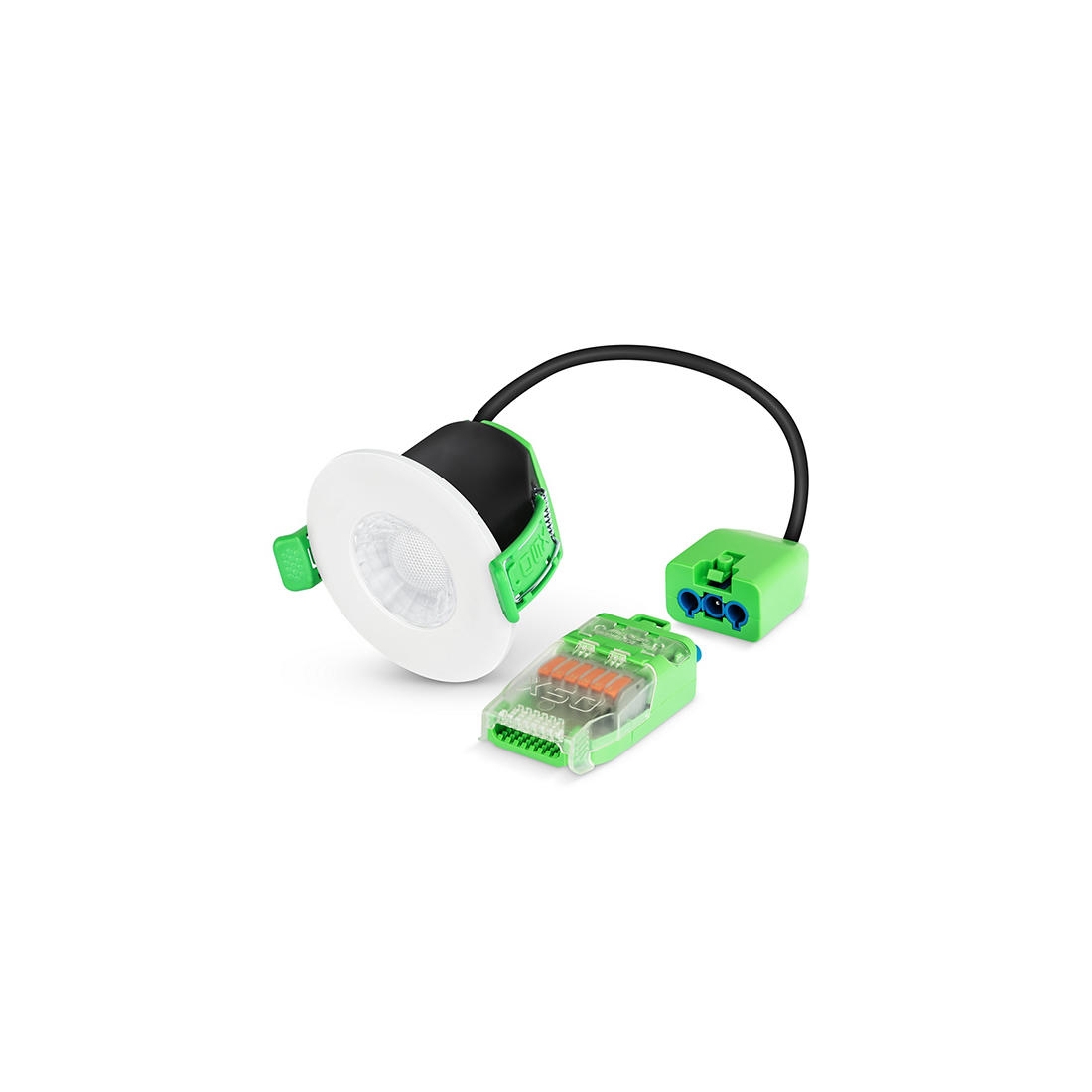

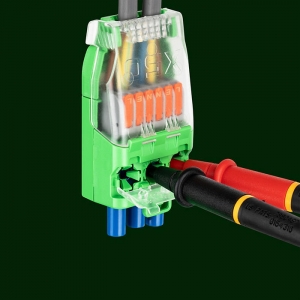

Supplied with two part connector with secure plug and play connection. Ultra secure lever terminals maintain a secure connection. The double hinged clear casing and cover allows for clearer access to terminal blocks, whilst providing reassurance of secure termination.

Fully fire rated for 30, 60 and 90 minute ceilings. The enclosed steel can ensures that flames won’t enter the ceiling void, creating a complete barrier in the event of a fire. Tested for use in Solid, I-Joist and Steel Open Web joist ceilings. Meets all current building regulations.

Triac dimmable as standard and suitable for use with leading edge or trailing edge dimmers.

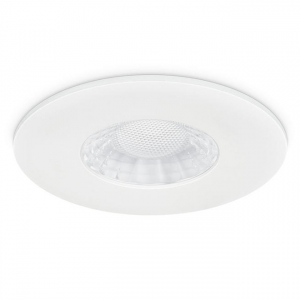

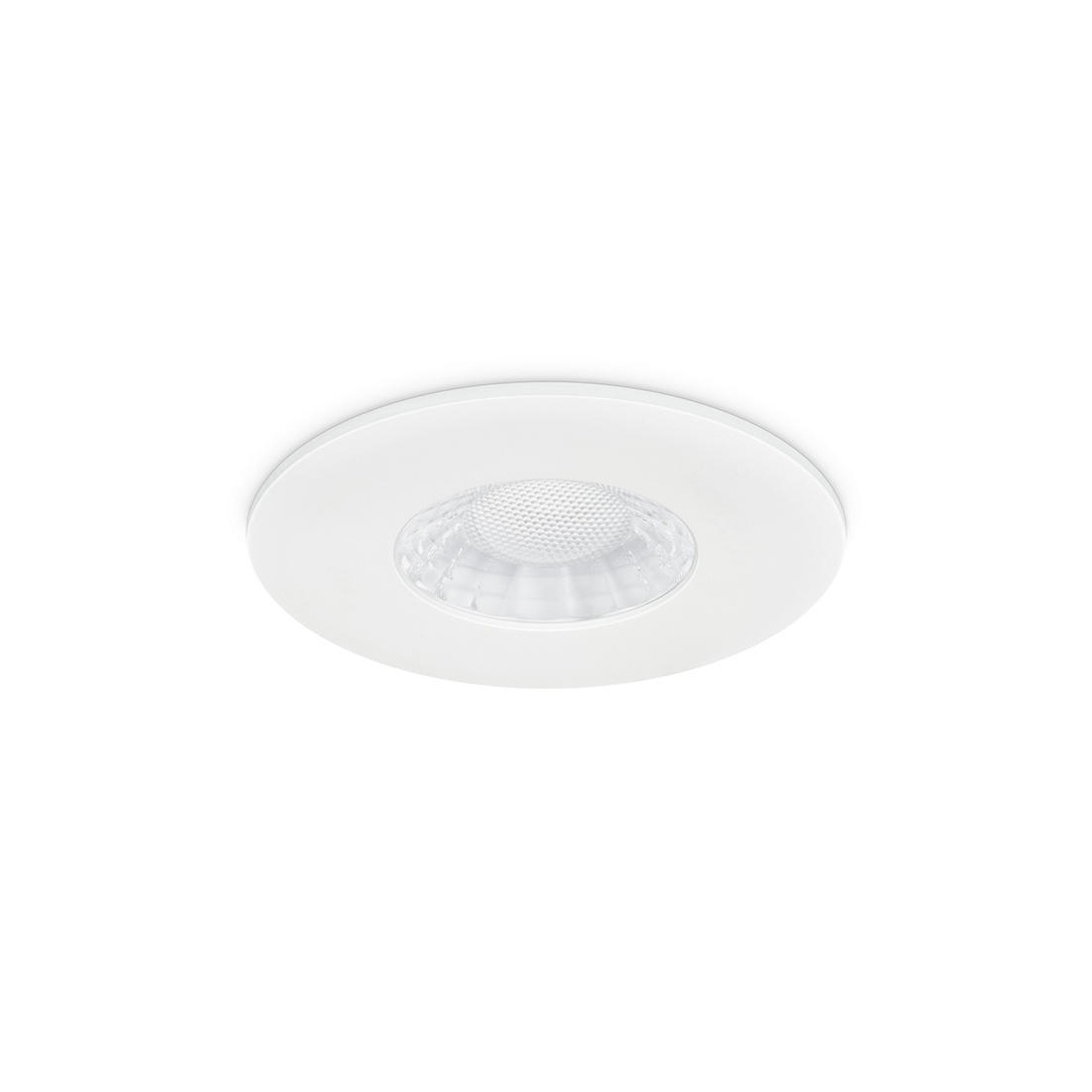

Supplied with 10x white aluminium twist and lock bezels for quick and simple second fix installation once the decoration of the ceiling has been completed

JCC Lighting JC1101/WH10 Features

• JCC Lighting JC1101/WH10 pack of 10x fixed wattage and colour selectable LED fire rated downlight
• Supplied with 10x white aluminium twist-and-lock bezels
• IP65 rated suitable for bathrooms (internal use only)
• Wattage & colour selectable from below ceiling
• Wattage selectable: 3.5W 230V~ | 5W 230V~
• Colour Selectable: Warm White (3000K) | Cool White (4000K) | Neutral White (5700K)
• Lumens: 3.5W 480Lm 137Lm/W | 5W 700Lm 140Lm/W
• LED lifespan of over 60,000 hours
• Wide 60° beam angle
• Easy glide protective clips designed to reduce ceiling damage
• Spring clips ensures that the body of the fitting remains securely fixed
• Ultra-low profile suitable for shallow 50mm ceiling voids
• Supplied with two part connector with secure plug and play connection
• Ultra secure lever terminals maintain a secure connection
• Double hinged clear casing and cover allows for clearer access to terminal blocks
• Fully fire-rated for 30, 60 and 90 minute ceilings
• Tested for use in Solid, I-Joist and Steel Open Web joist ceilings
• Triac dimmable as standard
• Dimensions: Diameter Ø: 84mm | Recess Depth: 55.4mm | Cut-Out Ø: 68-70mm | Length: 322mm
