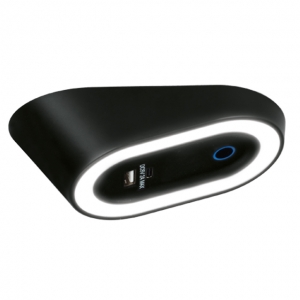

Ansell Lighting AREVP/1/BK/WW Reveal P Black IP20 2.5W 85Lm 12V LED Undercabinet Light With Warm White 3000K LEDs - Requires Driver

Ansell Lighting AREVP/1/BK/WW Description

The Ansell Lighting Reveal P AREVP/1/BK/WW is a compact LED undercabinet light designed to extend a compatible Reveal P lighting kit in kitchens, wardrobes and other residential cabinetry. Producing 85 lumens of 3000K Warm White illumination, it creates a comfortable, welcoming lighting effect while providing practical task and accent lighting across worktops and fitted furniture.

Operating from a 12V low-voltage supply, this individual Reveal P fitting is supplied without a driver and must be connected to a compatible Reveal P kit. Ansell's installer-friendly plug-and-play system simplifies expansion, with each light featuring a 1.5m connection lead for connection to the 4-way splitter supplied with the compatible kit.

As part of a Reveal P installation, the fitting benefits from an innovative touch-free wave sensor, allowing users to switch the lights on and off or adjust the brightness with a simple hand gesture. Integrated USB-C and USB-A charging ports add another practical feature to the Reveal P design, providing convenient charging connections for compatible mobile devices and accessories.

Installation is made easier by a removable mounting frame, which allows quick surface fixing before clicking back into place to conceal the screws for a clean, professional finish. With CRI 90 colour rendering, IP20 protection, IK05 impact resistance and an L80 54,000-hour LED lifetime, the Ansell Reveal P provides a versatile and low-maintenance way to expand a modern undercabinet lighting installation.

Ansell Lighting AREVP/1/BK/WW Features

• Single Reveal P LED undercabinet extension light
• Contemporary black finish
• 2.5W LED
• 85 lumens light output
• 3000K Warm White colour temperature
• 12V low-voltage operation
• Driver required – not included
• Single fittings are extension-only
• Must be connected to a compatible Ansell Reveal P kit
• Enables a compatible 3-light Reveal P kit to be expanded to 4 fittings
• Innovative touch-free wave sensor functionality as part of the Reveal P system
• Touch-free on/off switching and dimming
• Integrated USB-C and USB-A charging ports
• Simple plug-and-play connection system
• Supplied with a 1.5m connection lead
• Removable frame for straightforward surface mounting
• Conceals fixing screws for a clean, professional appearance
• IP20 rated for indoor applications
• IK05 impact resistance
• CRI 90 for excellent colour rendering
• SDCM 6
• Class III luminaire
• L80 54,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Dimensions: 120mm × 61mm × 37mm
• Ideal for kitchen undercabinet lighting, worktops, wardrobes and fitted residential cabinetry
