Ansell Lighting AREVR/1/BK/WW Reveal R Black IP20 1.8W 110Lm 12V 120mm Round LED Undercabinet Light With Warm White 3000K LEDs - Requires Driver

Ansell Lighting AREVR/1/BK/WW Description

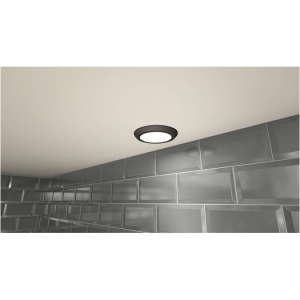

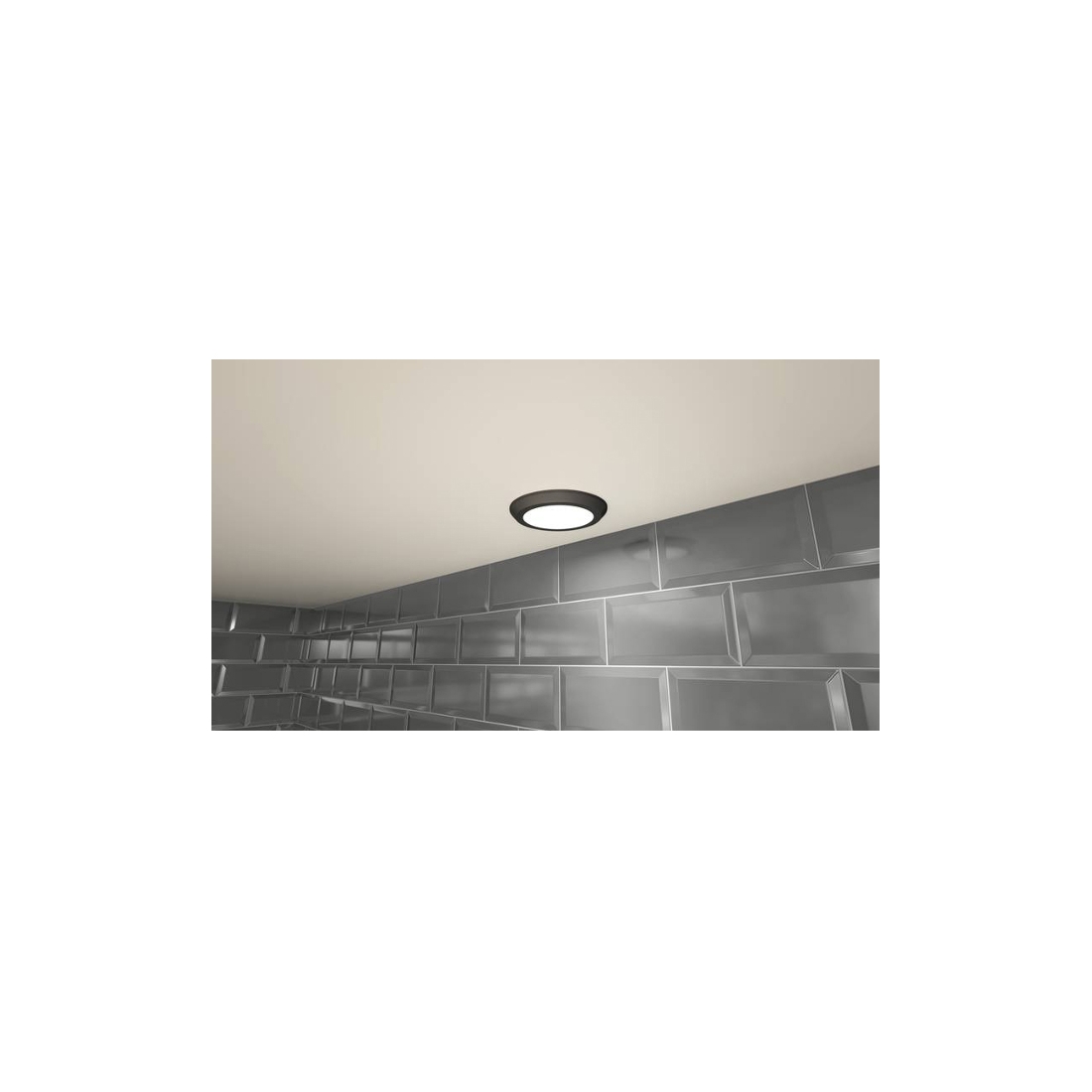

The Ansell Lighting Reveal R AREVR/1/BK/WW is a stylish circular LED undercabinet light designed to provide discreet task and accent illumination for kitchens, wardrobes and fitted residential cabinetry. Its efficient 1.8W integrated LED delivers 110 lumens of 3000K Warm White light, creating a welcoming lighting effect across kitchen worktops, shelving and cabinet areas.

Operating from a 12V low-voltage supply, this individual Reveal R luminaire is an extension fitting and is supplied without a driver. It is designed for connection to a compatible Ansell Reveal R kit, allowing installers to expand a three-light installation with an additional fitting where greater cabinet lighting coverage is required.

Ansell's convenient plug-and-play connection system simplifies installation, with the fitting supplied with a 1.5m connection lead for connection to the splitter used within the compatible Reveal R system. A removable mounting frame also makes surface installation straightforward, clicking neatly back into position after fixing to conceal the screws and provide a clean, professional finish.

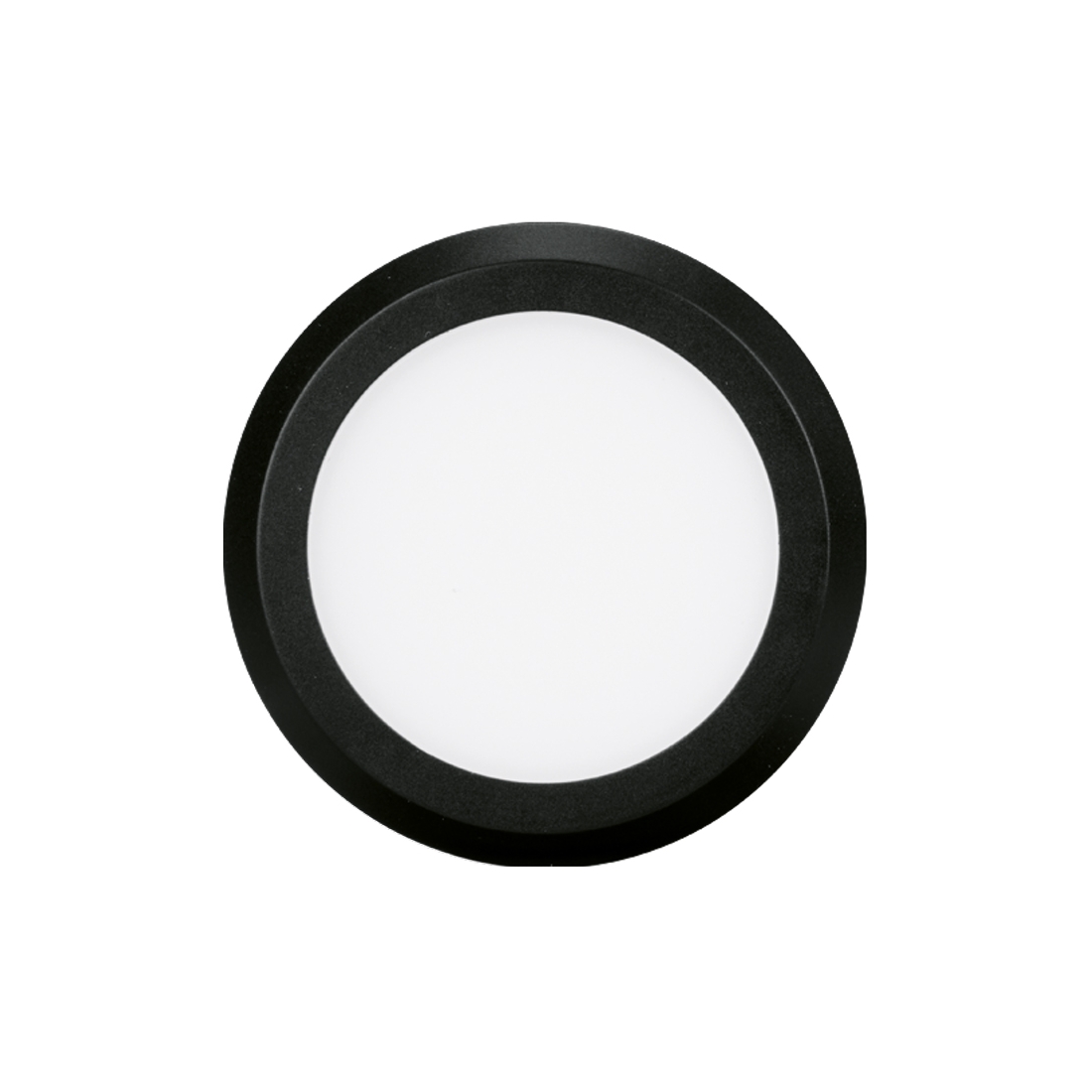

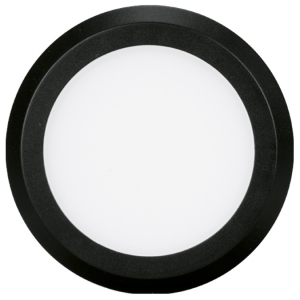

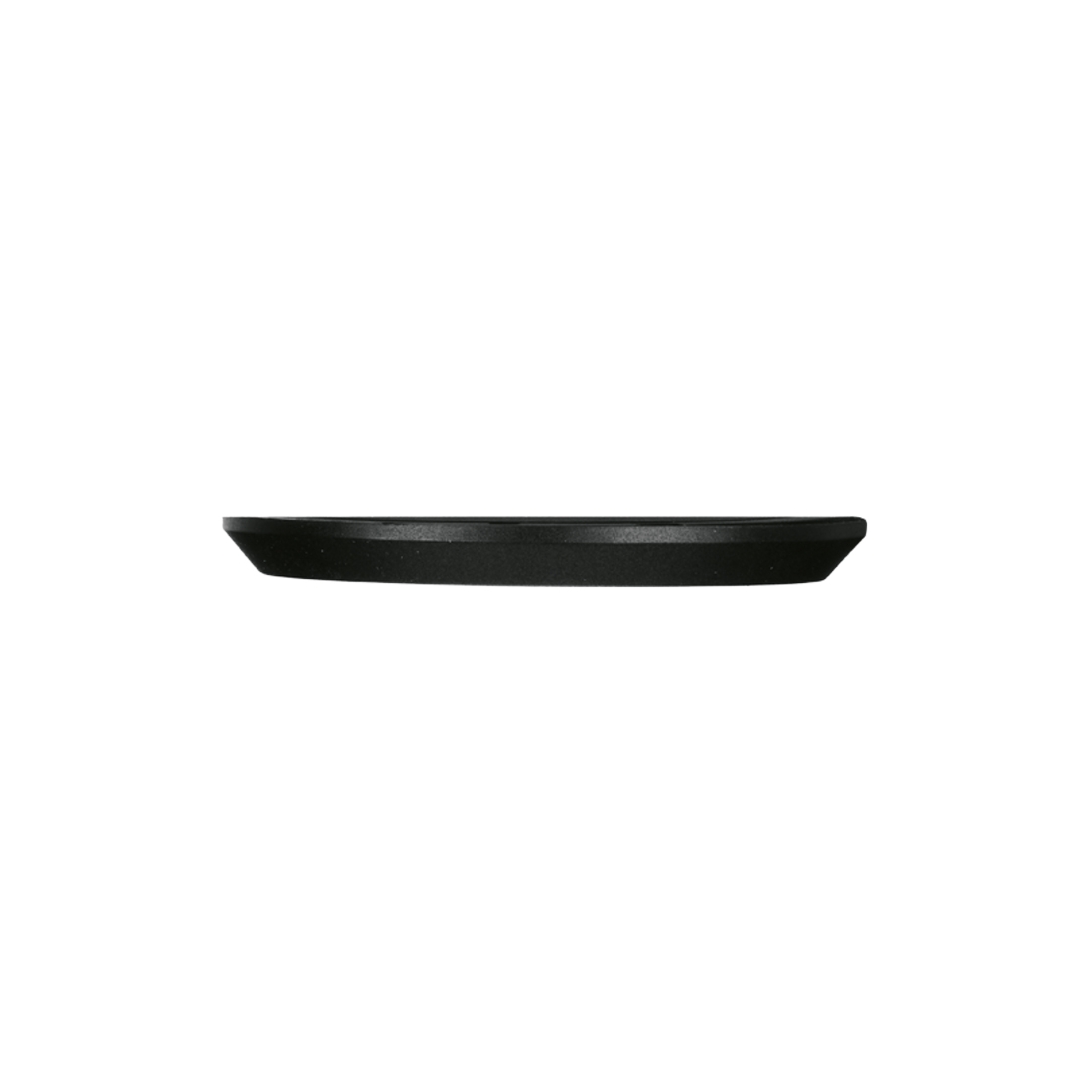

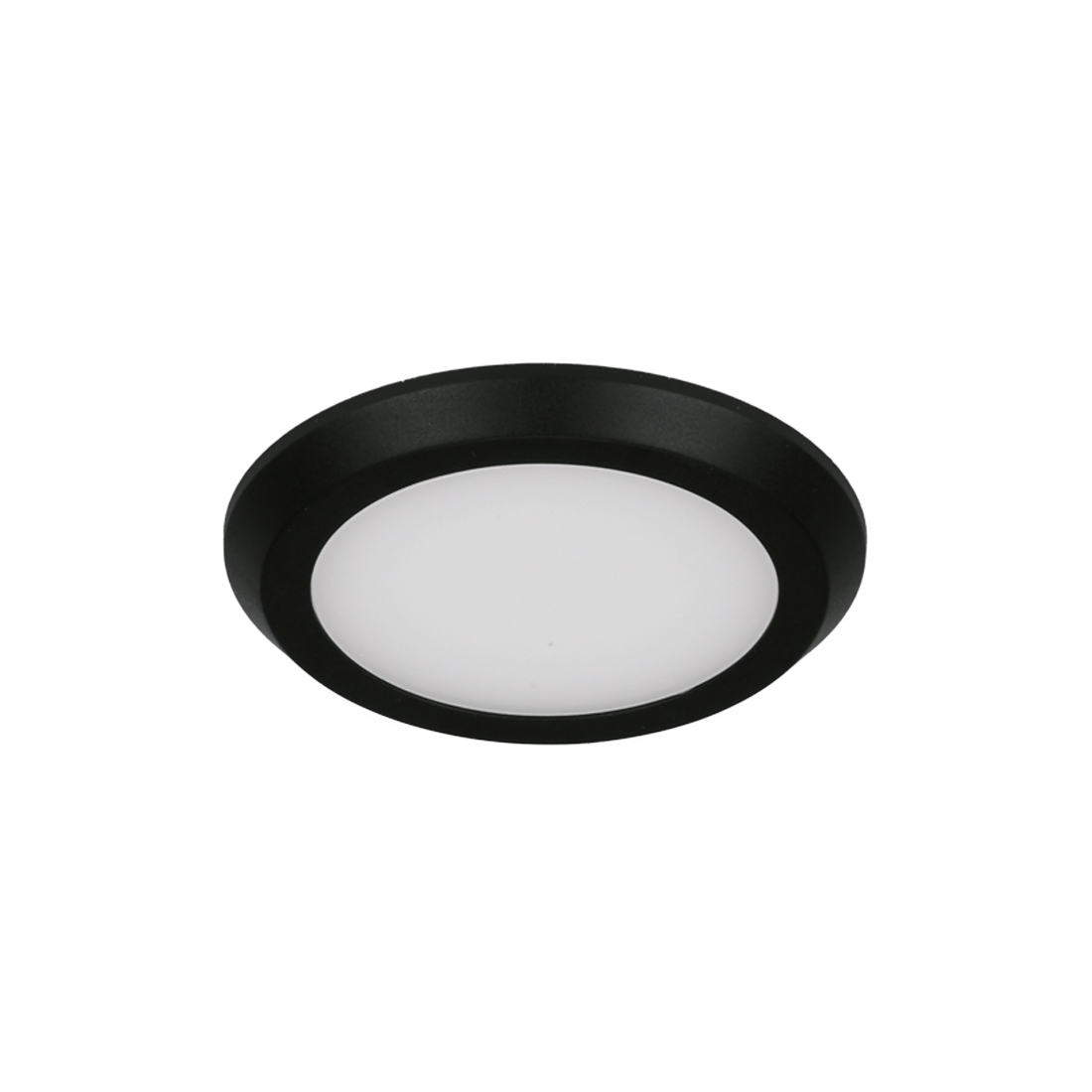

The contemporary black finish and compact 120mm round design make Reveal R a discreet choice for modern interiors, while CRI 90 provides high-quality colour rendering. Combined with IP20 protection, IK05 impact resistance and an L80 54,000-hour LED lifetime, the AREVR/1/BK/WW offers a reliable, energy-efficient way to extend an Ansell LED undercabinet lighting installation.

Ansell Lighting AREVR/1/BK/WW Features

• Single Reveal R LED undercabinet extension light
• Contemporary black finish
• 1.8W integrated LED
• 110 lumens light output
• 3000K Warm White colour temperature
• 12V low-voltage operation
• Compact 120mm round design
• Driver required – not included
• Designed for use with a compatible Ansell Reveal R kit
• Suitable for expanding a compatible 3-light Reveal R kit to 4 fittings
• Simple plug-and-play connection system
• Supplied with 1.5m connection lead
• Removable mounting frame for quick surface installation
• Concealed fixing screws provide a neat finished appearance
• IP20 rated for indoor applications
• IK05 impact resistance
• CRI 90 for excellent colour rendering
• SDCM 6 for consistent LED colour appearance
• Class III luminaire
• L80 54,000-hour LED lifetime
• Operating temperature: -20°C to +40°C
• Ideal for kitchen undercabinet lighting, worktops, wardrobes, shelving and fitted residential cabinetry
