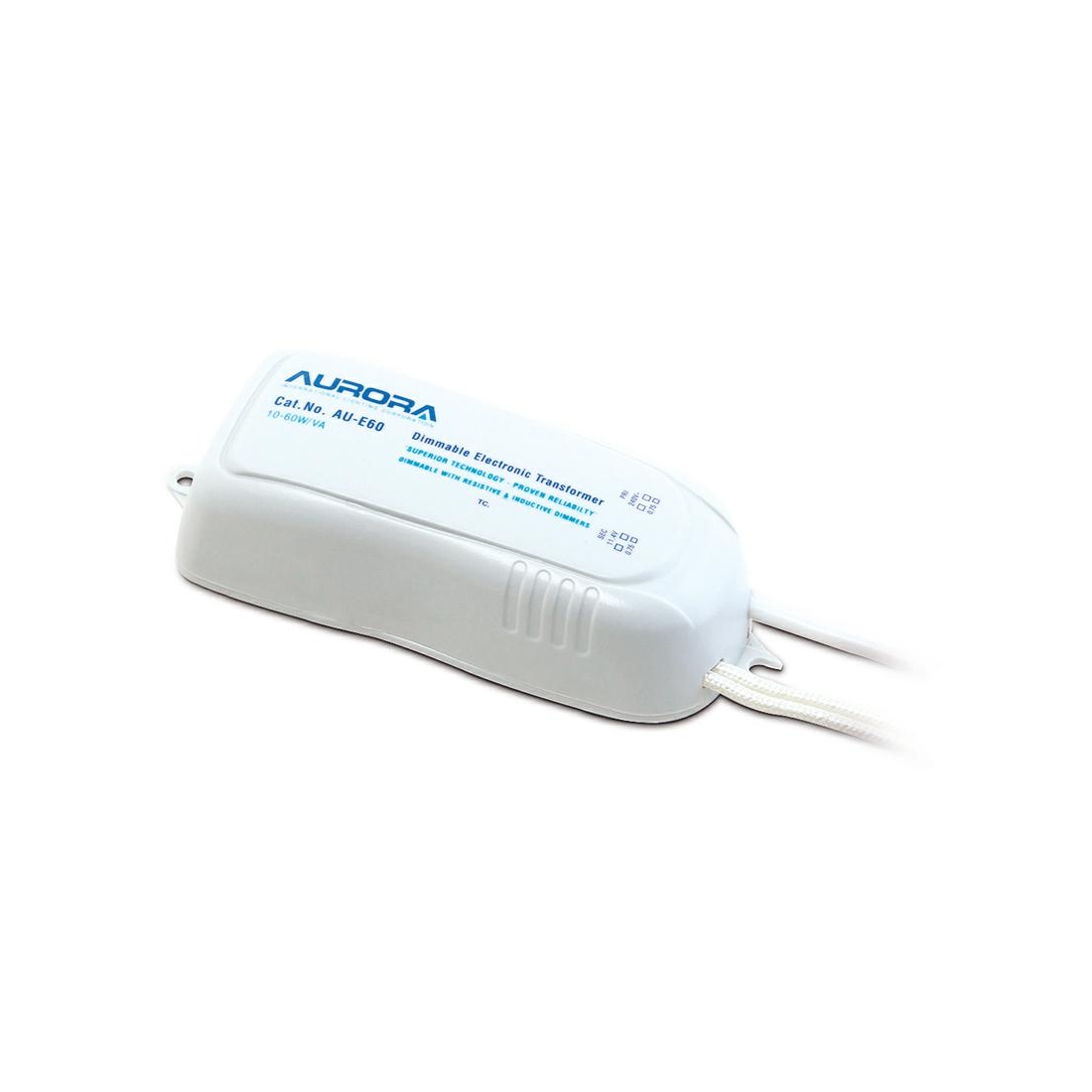

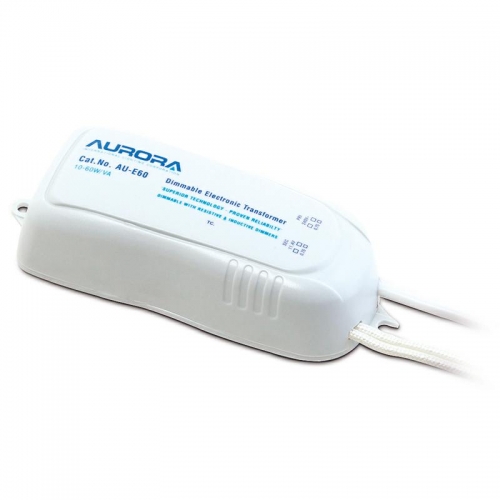

Aurora Lighting AU-E60 White Dimmable Low Voltage Electronic Transformer 10W - 60W/VA Length: 90mm | Width: 39mm | Height: 27mm
Order code: AU-E60
Manufacturer: Aurora
GTIN: 5060076796745
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Aurora AU-E60 Description
Specification:
| Input Voltage (V) | 220-240V AC 50/60Hz V |
| Output Voltage (V) | 11.4 V |
| Output Freqency (KHz) | 40 KHz |
| Nominal Power (VA) | 10-60W/VA VA |
| Min Load Dimming (W) | 35 W |
| Line Current (A) | 0.270 A |
| Max Ambient Temp (deg. C) | -20 to +50 deg. C |
| Max Case Temp (deg. C) | 70 deg. C |
| Length (mm) | 90 mm |
| Width (mm) | 39 mm |
| Height (mm) | 27 mm |
| Product Weight | 0.088 Kg |
Features:
• Fully dimmable with resistive & inductive dimmers
• Short circuit and overload protection 1.0kV SURGE PROTECTION – EN 61547
• Pre-wired with 30cm primary lead 30cm heat resistant secondary leads
• Safety compliance – EN 61347
• EMC compliance – EN 55015, EN 61000, EN 61547
• 10 Year guarantee
• NOTE: Maximum cable length from transformer to the furthest lamp is 2m
• Input Impedence = 10nF
| Brand : | Aurora |
| Part No : | AU-E60 |
| Colour : | White |
| Dimmable : | Yes |
| Type : | Premium Electronic Transformer |
| Dimensions : | (L)90 mm x (H)27 mm x (W)39 mm |
| Height : | 27mm |
| Width : | 39mm |
| Guarantee : | 5 Years |
| Length : | 90mm |
| Input Voltage : | 230V |
| Power Rating : | 60W |
| Output Voltage : | 11.4V |
| Power Range : | 10 - 60W |
| Voltage Range : | 230V |
