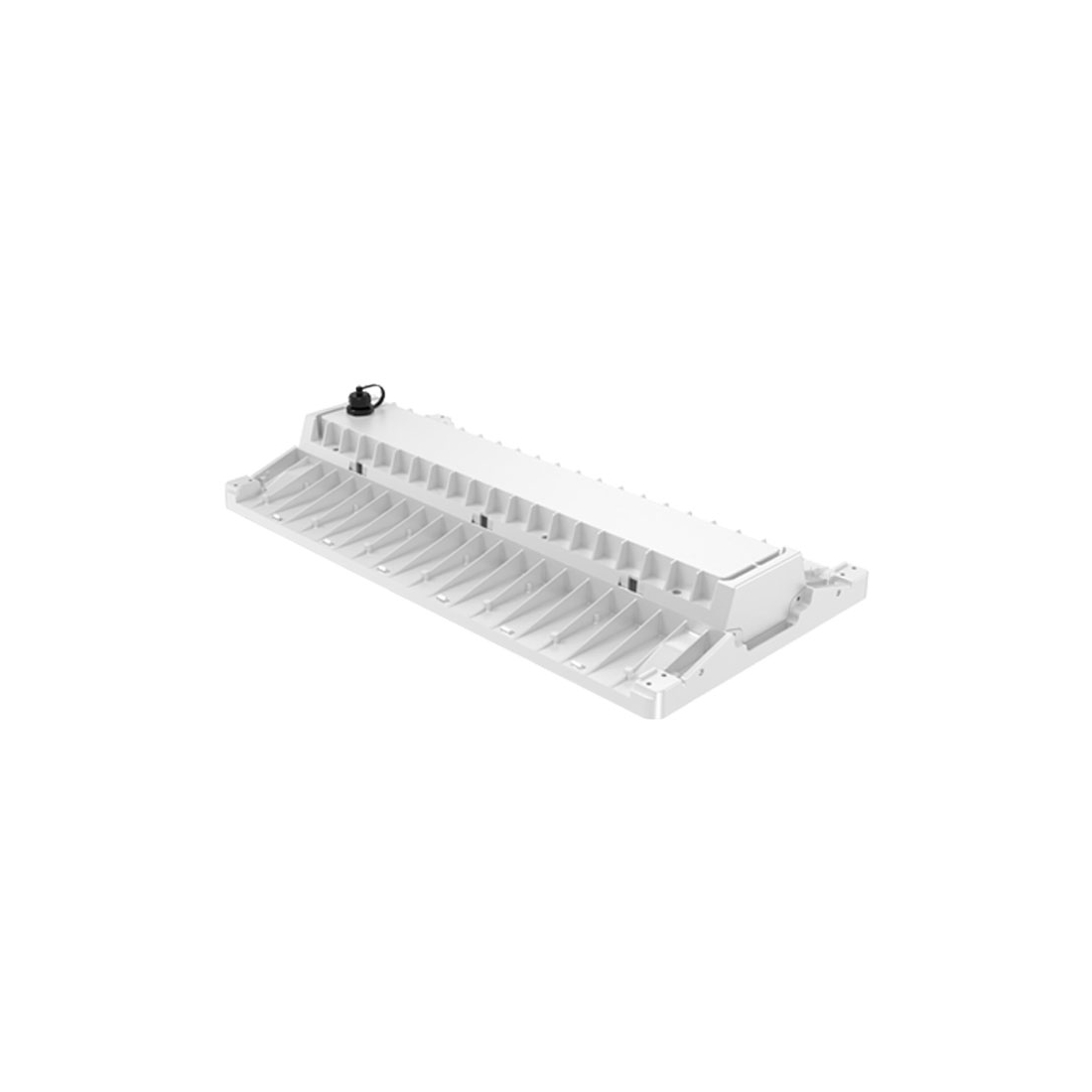

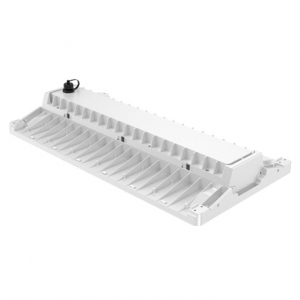

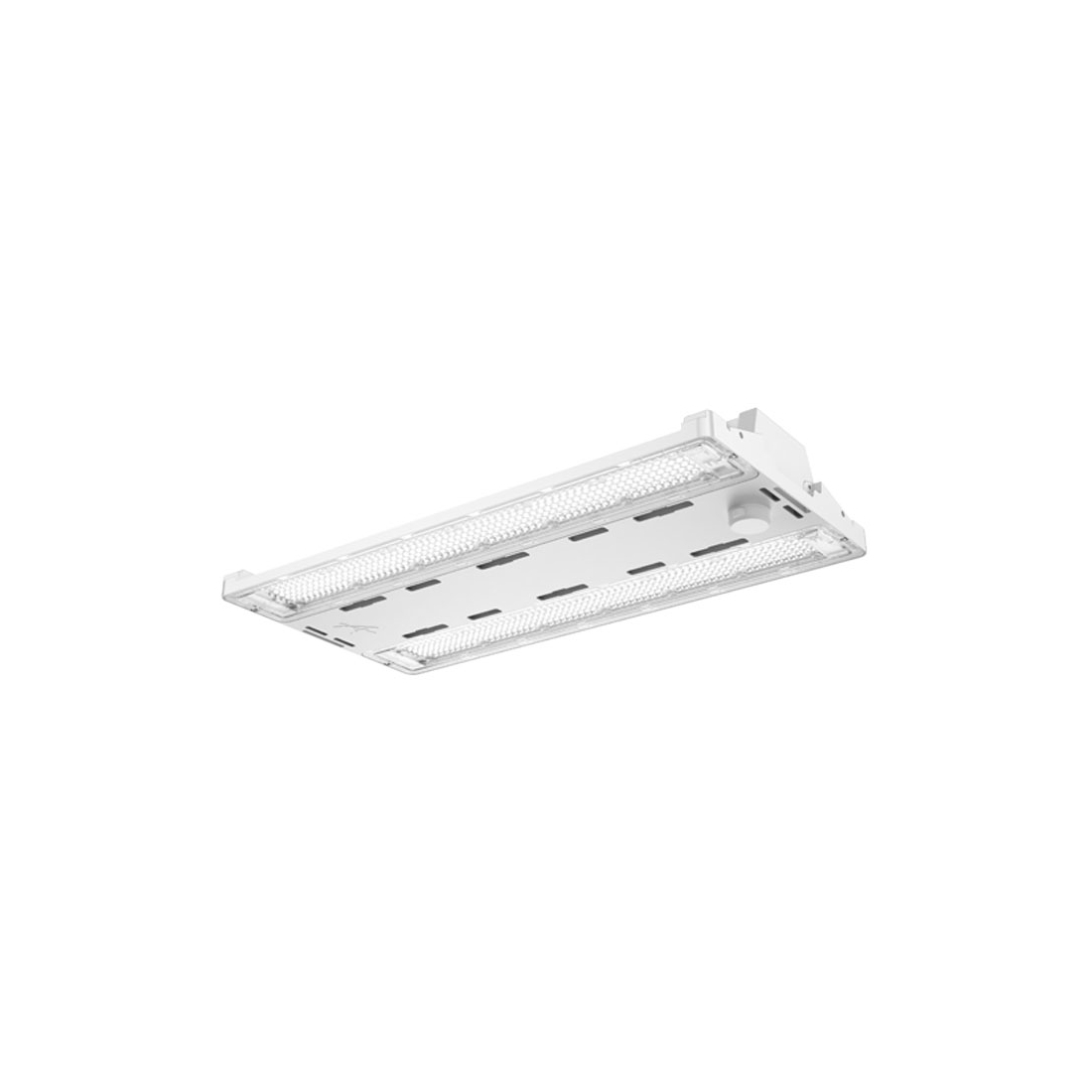

Ansell Lighting AOCU/1 Ocu-Lux Grey IP65 80-160W 15000-29000Lm Wattage Selectable LED Linear High Bay

Ansell Lighting AOCU/1 Description

The Ansell Lighting AOCU/1 Ocu-Lux Grey IP65 Wattage Selectable LED Linear High Bay is engineered to provide powerful, uniform lighting for warehouses, engineering workshops, factories, distribution centres and sports facilities. With selectable 80W, 120W and 160W power settings, it delivers a flexible light output from 15,000 to 29,000 lumens, allowing installers to tailor illumination levels to suit varying mounting heights and project requirements while maximising energy savings. Exceptional 185Lm/W efficacy reduces running costs without compromising performance, while the robust IP65 and IK10-rated construction ensures long-term durability in demanding environments. Featuring 1-10V dimming as standard, Zhaga sensor compatibility and OCTO smart lighting readiness, the Ocu-Lux offers an advanced, future-proof lighting solution with suspended or surface mounting options and simple installation for new projects and refurbishments alike. Backed by a 7-year warranty, it delivers dependable performance where reliability matters most.

Ansell Lighting AOCU/1 Features

• Ansell Lighting AOCU/1 Ocu-Lux LED linear high bay
• Wattage selectable: 80W / 120W / 160W
• Light output: 15,000-29,000 lumens
• Outstanding efficacy of up to 185 lumens per watt
• Fixed 4000K Cool White colour temperature
• CRI: >80
• Wide 110° beam angle for uniform light distribution
• IP65 rated for protection against dust and water ingress
• IK10 impact-resistant construction
• Tested to DIN18032-3 for ball impact resistance, making it suitable for sports halls
• 1-10V dimmable as standard
• Zhaga socket for plug-in PIR, microwave and OCTO smart sensors
• OCTO-ready for intelligent lighting control integration

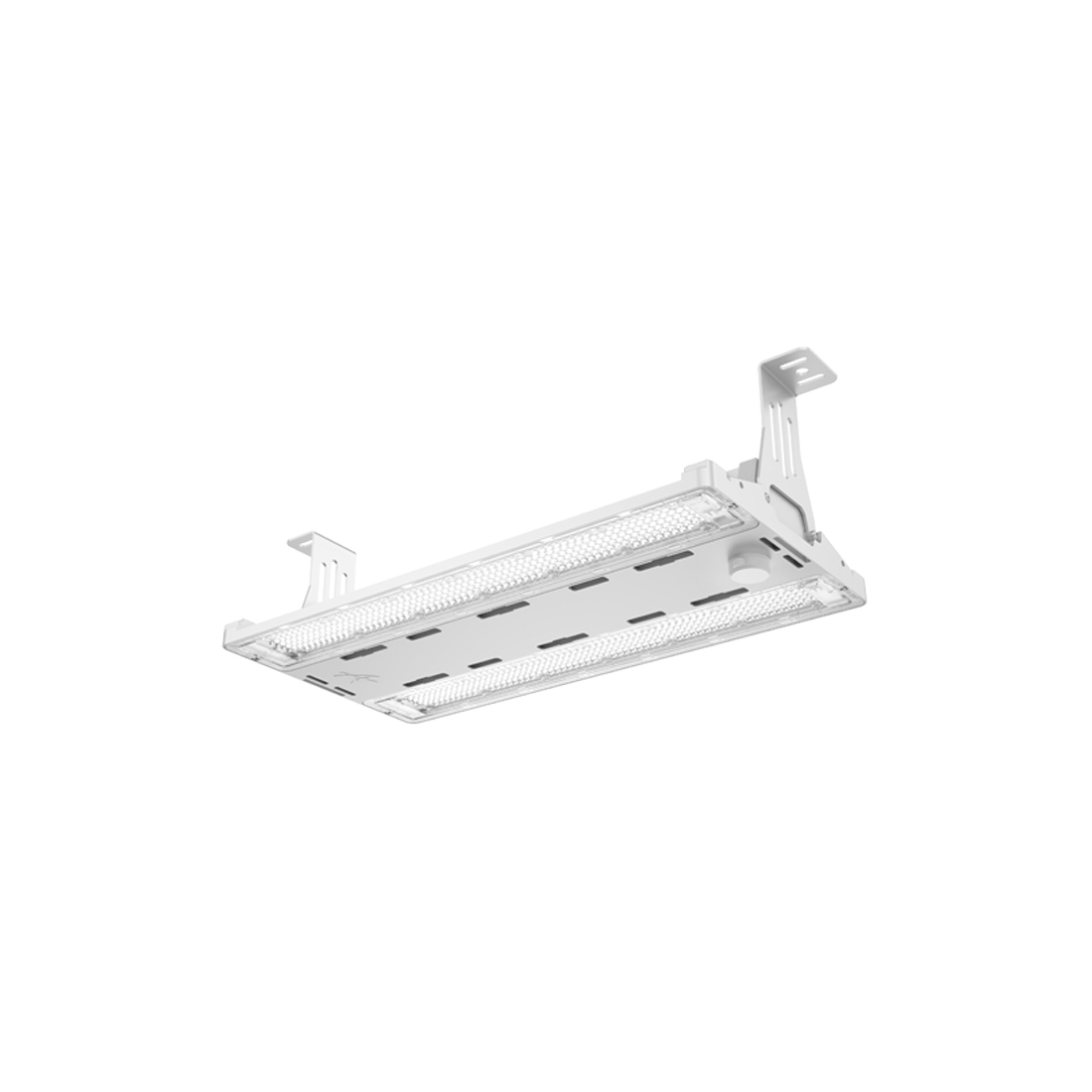

• Suitable for surface or suspended mounting
• Rear fast connector plug for quick installation
• Double-sided gear tray simplifies emergency conversion
• Durable polycarbonate rear control gear housing
• Operating temperature: -30°C to +50°C
• Lifetime: L80 54,000 hours
• Supply voltage: 220-240V AC, 50/60Hz
• Class I construction
• Colour: Grey
• Ideal for warehouses, factories, engineering workshops, logistics centres and sports facilities
• Dimensions: 580mm (L) × 300mm (W) × 75mm (H)
• Weight: 4.6kg
