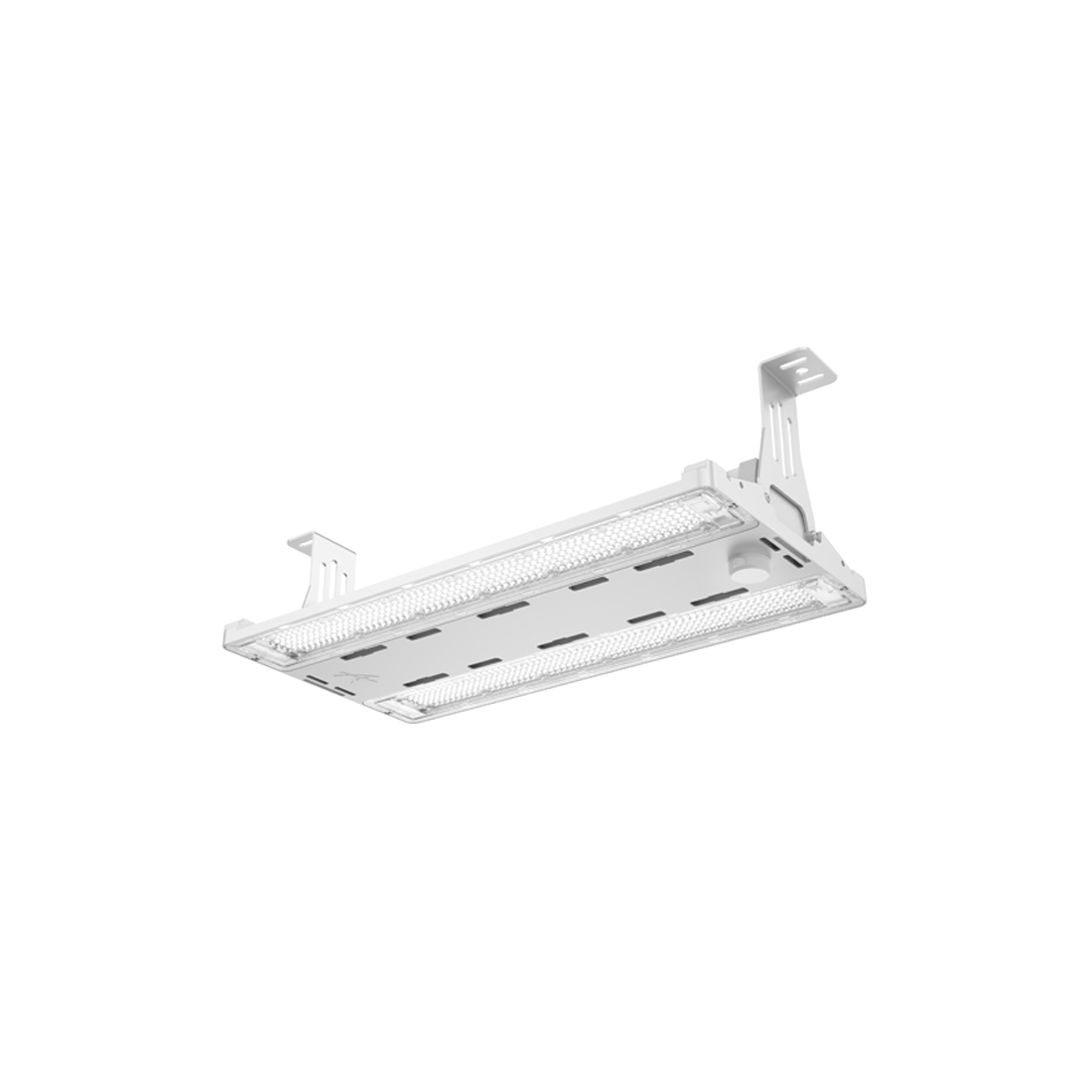

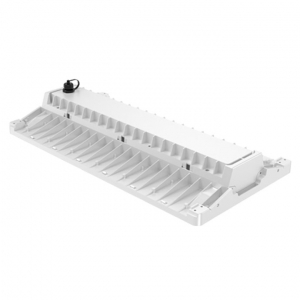

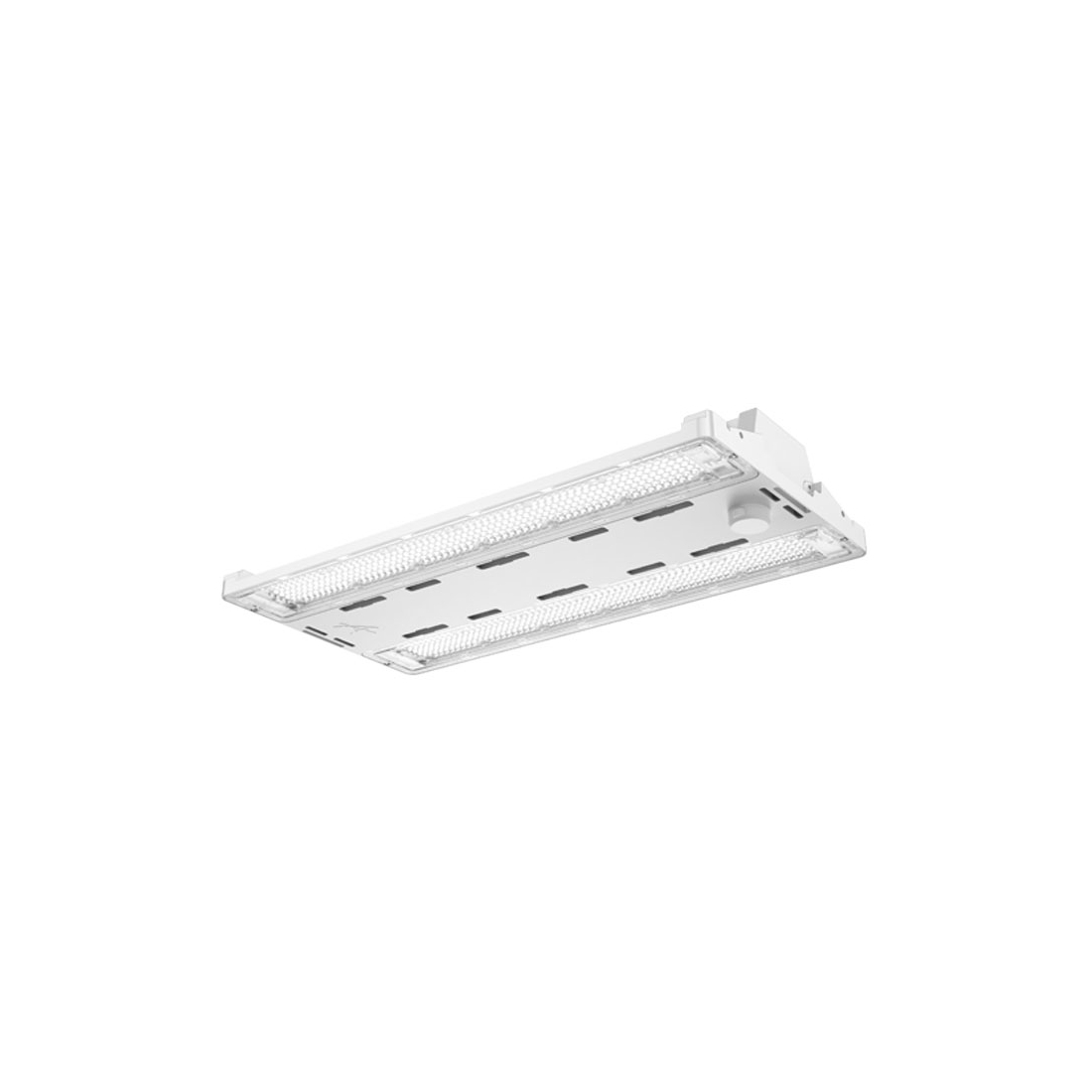

Ansell Lighting AOCU/1/SM3 Ocu-Lux Grey Self-Test Emergency IP65 80-160W 15000-29000Lm Wattage Selectable LED Linear High Bay

Ansell Lighting AOCU/1/SM3 Description

The Ansell Lighting AOCU/1/SM3 Ocu-Lux Grey Self-Test Emergency LED Linear High Bay has been designed to provide powerful, energy-efficient illumination for warehouses, factories, engineering workshops, logistics centres and sports halls. Its selectable 80W, 120W and 160W power settings deliver a flexible light output from 15,000 to 29,000 lumens, allowing installers to tailor lighting levels to suit varying mounting heights and application requirements. Featuring an integrated 3-hour self-test emergency module, the luminaire automatically performs routine function and duration tests, helping reduce maintenance while supporting compliance with emergency lighting standards. With 185Lm/W efficacy, IP65 ingress protection, IK10 impact resistance, 1-10V dimming, Zhaga sensor compatibility and OCTO smart lighting readiness, the Ocu-Lux offers a future-proof lighting solution that combines outstanding performance, durability and intelligent control. Backed by a 7-year warranty, it is built to deliver long-term reliability in demanding environments.

Ansell Lighting AOCU/1/SM3 Features

• Ansell Lighting AOCU/1/SM3 Ocu-Lux LED linear high bay
• Integrated Self-Test Emergency with 3-hour emergency duration
• Wattage selectable: 80W / 120W / 160W
• Light output: 15,000-29,000 lumens
• Outstanding efficacy of up to 185 lumens per watt
• Fixed 4000K Cool White colour temperature
• CRI: >80
• SDCM: 3
• Wide 110° beam angle
• IP65 rated for protection against dust and water ingress
• IK10 impact-resistant construction
• Tested to DIN 18032-3 for ball impact resistance, making it suitable for sports halls
• 1-10V dimmable as standard
• Zhaga socket for PIR, microwave and OCTO smart sensor compatibility
• OCTO-ready for intelligent lighting control integration
• Suitable for surface or suspended mounting
• Rear fast connector plug for quick and simple installation
• Double-sided gear tray allows integrated emergency control gear
• Durable polycarbonate rear control gear housing
• Operating temperature: Normal: -30°C to +50°C, Emergency: -5°C to +50°C
• Lifetime: L80 54,000 hours
• Supply voltage: 220-240V AC, 50/60Hz
• Class I construction
• Colour: Grey
• Dimensions: 580mm (L) × 300mm (W) × 75mm (H)
• Weight: 4.6kg
• Ideal for warehouses, distribution centres, factories, engineering workshops and sports facilities
