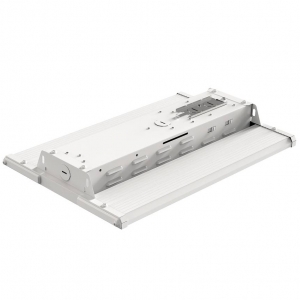

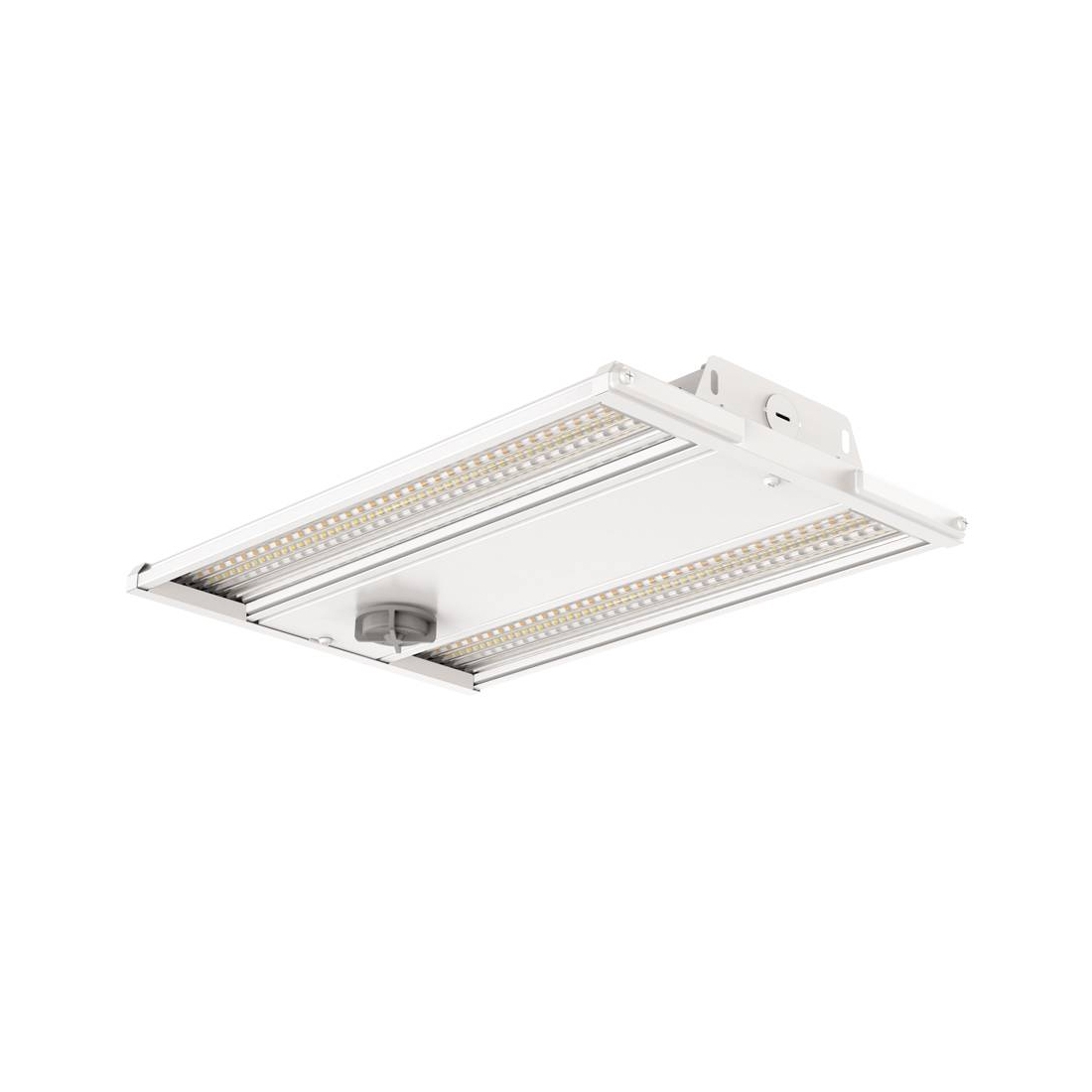

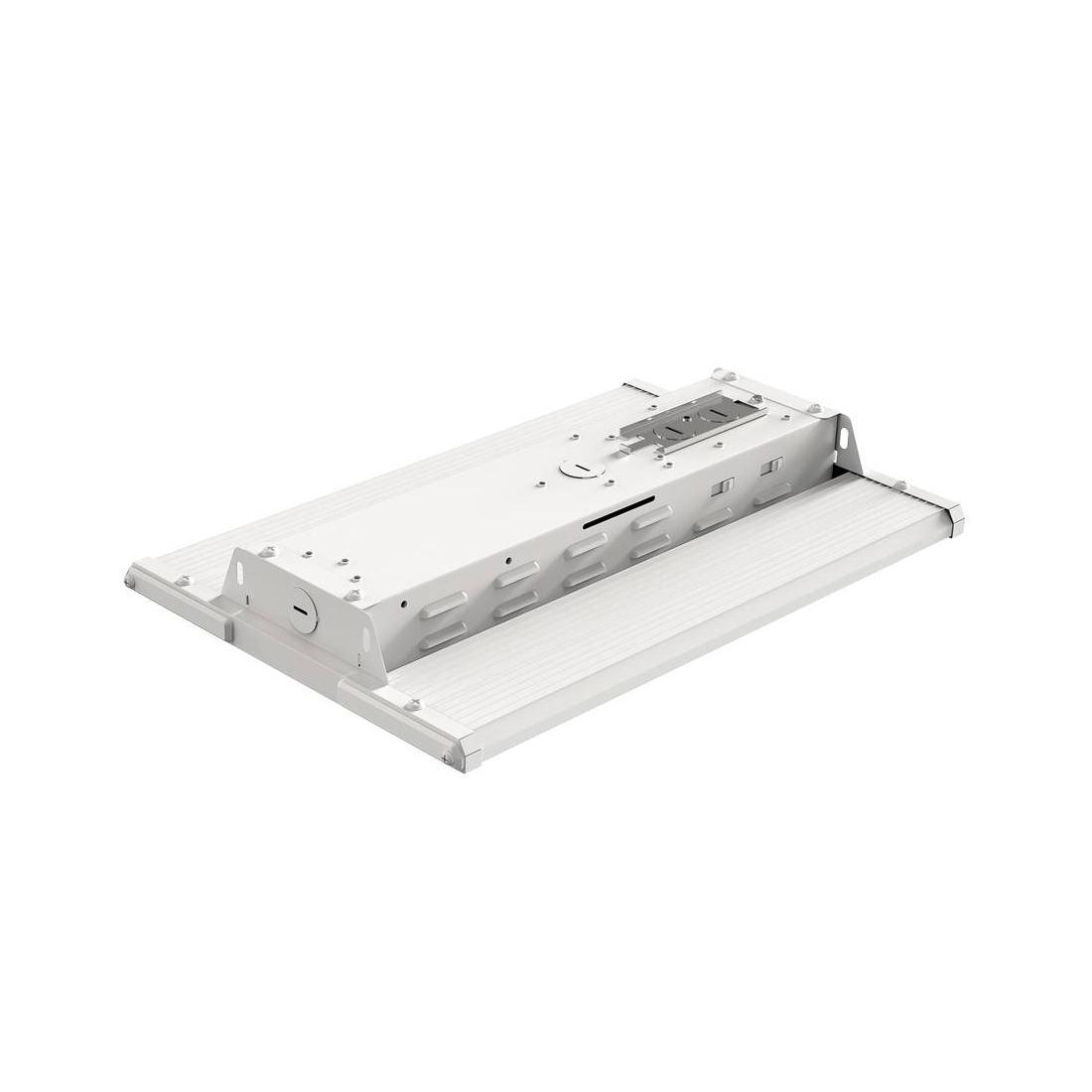

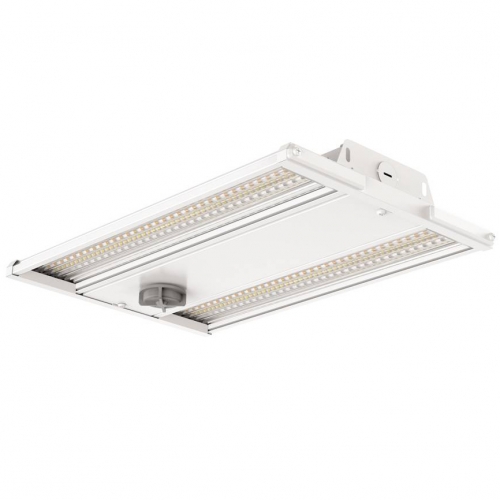

Collingwood Lighting LBR1V RackBay CSP White IP20 60-100W 8700-15000Lm Dimmable Linear Wattage & Colour Selectable Linear Low/High Bay

Collingwood LBR1V Description

The Collingwood Lighting LBR1V RackBay CSP LED Low/High Bay is a highly versatile and energy-efficient lighting solution designed for warehouse aisles, logistics centres, and commercial environments. With selectable wattage options of 60W, 80W, and 100W, delivering between 8,700 and 15,000 lumens, this fitting allows precise control over light output to suit varying installation requirements.

Featuring selectable colour temperatures of 3000K and 4000K, the LBR1V enables users to tailor lighting tone for different applications, from warmer ambient lighting to crisp, functional illumination. Its specialised 110° x 55° beam angle is optimised for racking aisles, ensuring light is directed exactly where it is needed, improving visibility and efficiency in storage environments.

With 0–10V dimming capability, the RackBay CSP offers advanced lighting control and can be integrated with PIR, microwave, and daylight sensors for further energy savings. Built with a durable aluminium and polycarbonate construction and rated IK07 for impact resistance, it is designed for long-term reliability in demanding commercial settings.

Its compact, lightweight design allows for easy single-person installation, with multiple mounting options including suspended, surface, or busbar mounting. With an impressive LED lifespan of up to 100,000 hours, the LBR1V provides a cost-effective and low-maintenance solution for modern lighting installations.

Collingwood LBR1V Features

• Wattage selectable: 60W / 80W / 100W
• Lumen output: 8,700 – 15,000 lumens
• Colour selectable (CCT): 3000K / 4000K
• 0–10V dimmable for flexible lighting control
• Beam angle: 110° x 55° – optimised for racking aisles
• High efficacy: up to 145–150 lm/W
• IP20 rated – suitable for indoor commercial applications
• IK07 impact resistance for durability
• Dimensions: 396mm (L) x 241mm (W) x 65mm (H)
• Voltage: 220–240V AC
• LED lifespan: up to 100,000 hours (L70)
• Compatible with PIR, microwave, and daylight sensors
• Multiple mounting options: suspended, surface, or busbar fixing
• Compact, lightweight design for easy installation
• Durable white aluminium and polycarbonate construction
• Ideal for warehouse aisles, storage facilities, retail, and logistics environments
