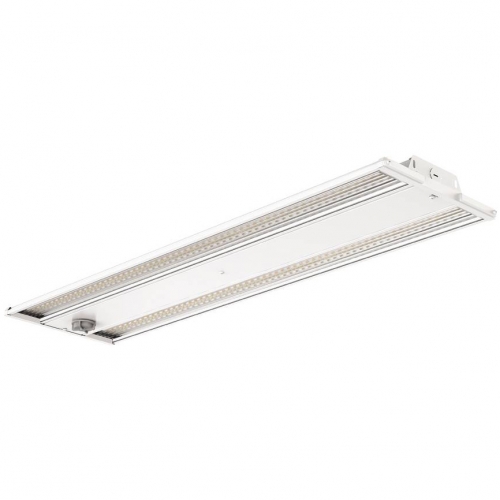

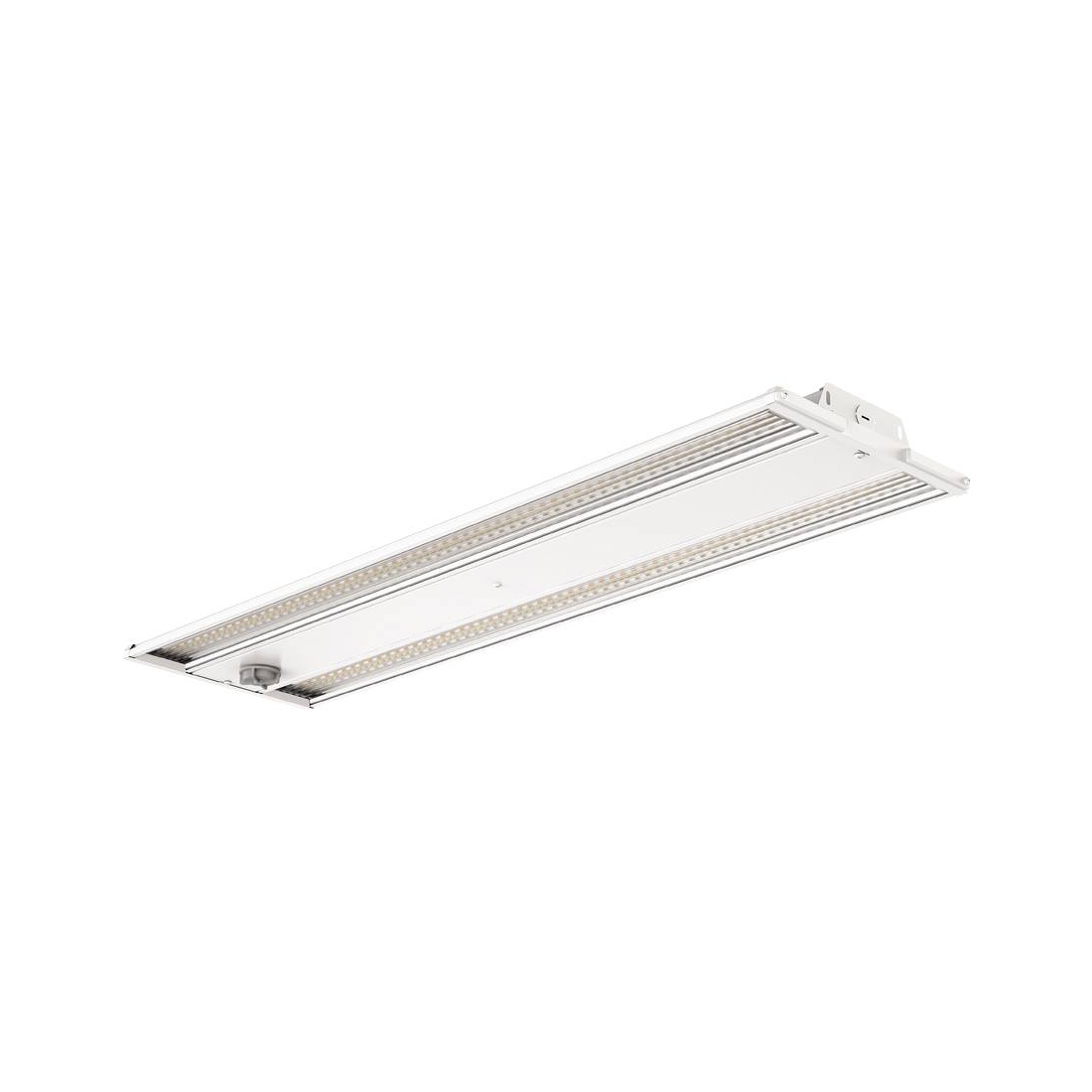

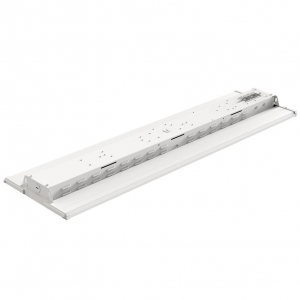

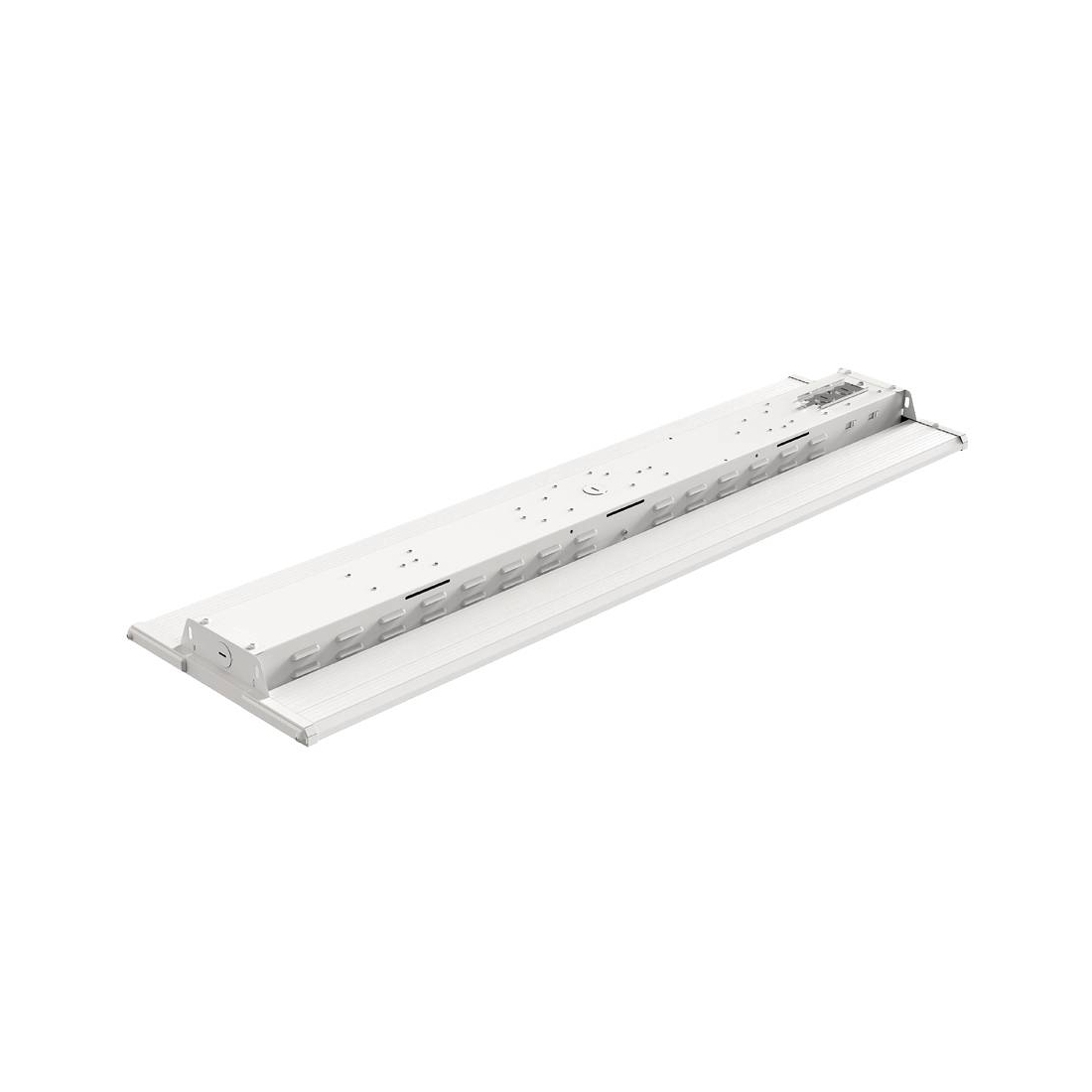

Collingwood Lighting LBR3V RackBay CSP White IP20 200-240W 28000-36000Lm Dimmable Linear Wattage & Colour Selectable Linear Low/High Bay

Collingwood LBR3V Description

The Collingwood Lighting LBR3V RackBay CSP LED Low/High Bay is a powerful and versatile linear lighting solution designed for demanding commercial and industrial environments. With selectable wattage options of 200W and 240W, delivering between 28,000 and 36,000 lumens, this high-performance fitting provides exceptional illumination for warehouses, logistics centres, distribution hubs, and large retail spaces.

Featuring selectable colour temperatures (3000K and 4000K), the LBR3V allows users to tailor the lighting tone to suit different applications, from warmer ambient environments to crisp, high-visibility working conditions. Its specialised 110° x 55° beam angle is optimised for racking aisles, ensuring targeted light distribution across shelving and walkways, improving visibility and operational efficiency.

With integrated 0–10V dimming, the RackBay CSP supports advanced lighting control and can be combined with PIR, microwave, and daylight sensors to further enhance energy efficiency. Constructed from durable aluminium and polycarbonate materials and rated IK07 for impact resistance, it is built to withstand demanding environments.

The compact and lightweight design allows for straightforward installation with multiple mounting options including suspended, surface, or busbar mounting. With an impressive LED lifespan of up to 100,000 hours, the LBR3V offers a long-lasting, low-maintenance, and energy-efficient solution for modern industrial lighting requirements.

Collingwood LBR3V Features

• Wattage selectable: 200W / 240W
• Lumen output: 28,000 – 36,000 lumens
• Colour selectable (CCT): 3000K / 4000K
• 0–10V dimmable for flexible lighting control
• Beam angle: 110° x 55° – optimised for racking aisles
• High efficacy for energy-efficient performance
• IP20 rated – suitable for indoor commercial and industrial use
• IK07 impact resistance for durability
• Dimensions: 696mm (L) x 241mm (W) x 65mm (H)
• Voltage: 220–240V AC
• LED lifespan: up to 100,000 hours (L70)
• Compatible with PIR, microwave, and daylight sensors
• Multiple mounting options: suspended, surface, or busbar installation
• Durable white aluminium and polycarbonate construction
• Compact, lightweight design for easy installation
• Ideal for warehouses, logistics centres, storage aisles, and large retail environments
