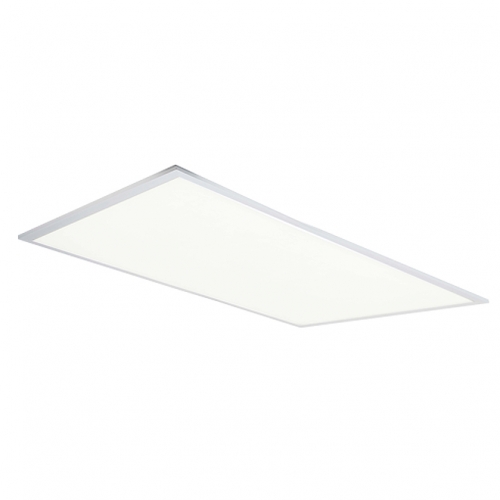

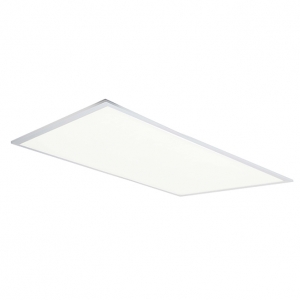

Ansell Lighting AERMLED3/120/CW Endurance White IP44 1200x600mm 60W 5800Lm UGR19 LED Flat Panel With TPa Diffuser & Cool White 4000K LEDs

Ansell Lighting AERMLED3/120/CW Description

The Ansell AERMLED3/120/CW Endurance 1200 x 600mm LED Panel combines powerful, efficient illumination with excellent visual comfort for demanding commercial environments. Its 60W edge-lit LED system delivers 5800 lumens at 4000K, providing bright, even cool white illumination with an efficacy of 97lm/W. With an actual UGR17 rating, the panel comfortably meets UGR<19 requirements, helping to minimise glare in offices, classrooms and other areas where visual comfort is important. A TP(a) rated diffuser is fitted as standard, while the white anodised aluminium frame is designed to integrate neatly with commercial ceiling grids. The Endurance platform also offers excellent installation flexibility, with compatible surface mounting and plasterboard recessed accessories plus optional self-test emergency and sensor pods.

Ansell Lighting AERMLED3/120/CW Features

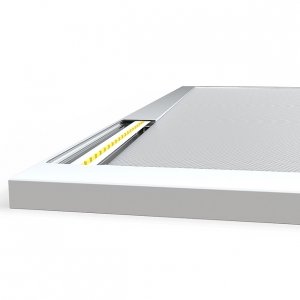

• Product type: Edge-lit commercial LED flat panel
• Panel size: 1200 x 600mm
• Power: 60W
• Delivered light output: 5800 lumens
• Luminous efficacy: 97lm/W
• Colour temperature: 4000K cool white
• UGR rating: UGR17 – exceeds UGR<19 low-glare requirements
• TP(a) rated diffuser supplied as standard
• Provides low-glare, even light distribution for improved visual comfort
• IP rating: IP44
• IK rating: IK02
• Beam angle: 80°
• CRI: Ra 80
• SDCM: 3
• LED lifetime: L80 76,000 hours
• Input voltage: 220-240V
• Frequency: 50/60Hz
• Class: Class II
• Operating temperature: -20°C to +40°C
• Finish: White
• White anodised aluminium frame provides a clean appearance within ceiling grids
• Dimensions: 1195mm x 595mm x 10mm
• Cut-out: 1185mm x 585mm when used with the appropriate recessed installation arrangement
• Suitable for education, commercial and ancillary applications

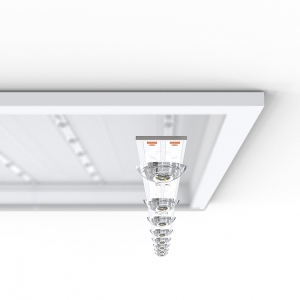

• Compatible with the Ansell Self-Test Emergency Panel Pod
• Compatible with the Ansell Sensor Pod
