Ansell Lighting APAC1/30/2 Pace White 1200x300mm Wattage 3 Colour Selectable Linear UGR19 LED Backlit Panel With TP(a) Opal Diffuser 20/30W 2700-3700Lm

Ansell Lighting APAC1/30/2 Pace White 1200x300mm Wattage 3 Colour Selectable Linear UGR19 LED Backlit Panel With TP(a) Opal Diffuser 20/30W 2700-3700Lm

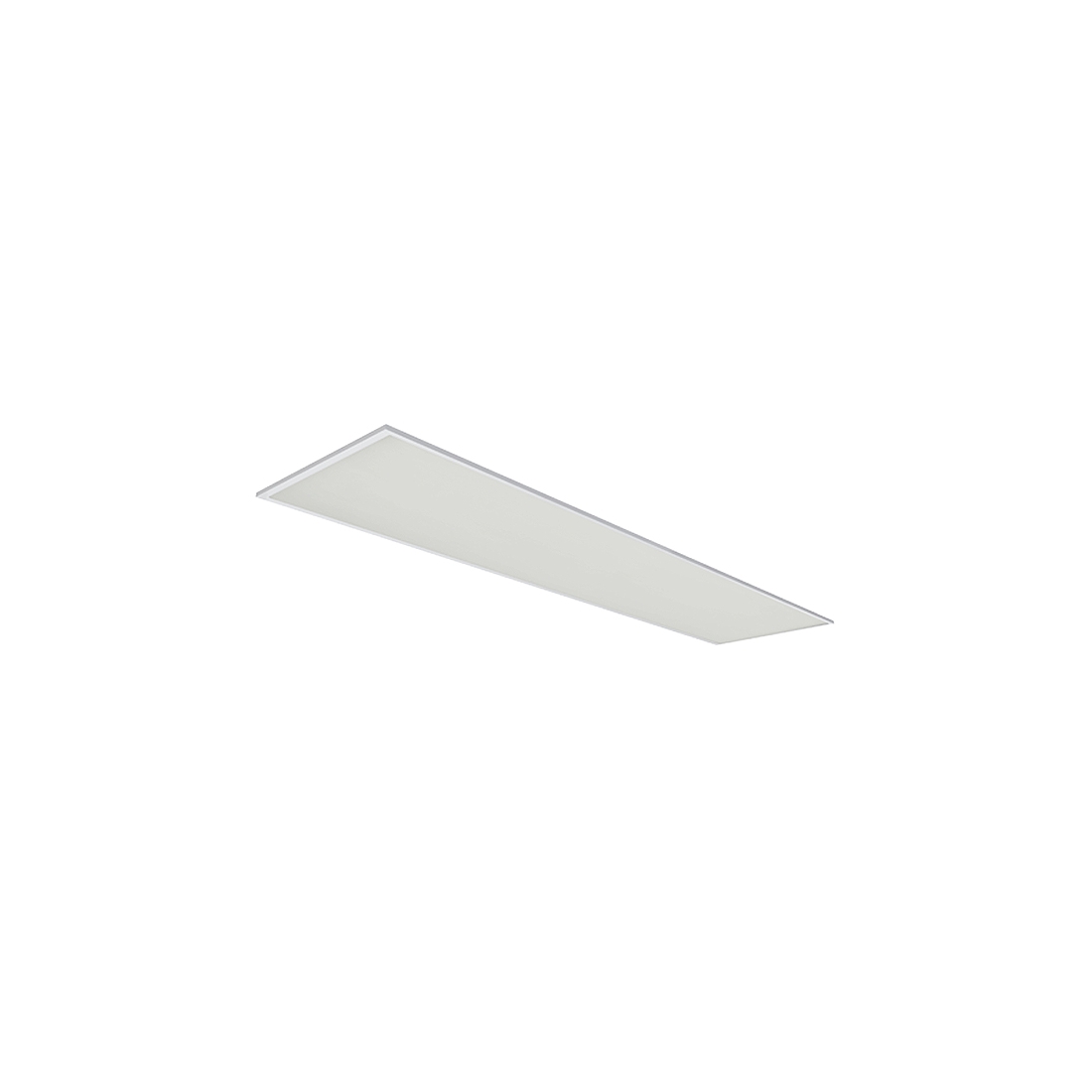

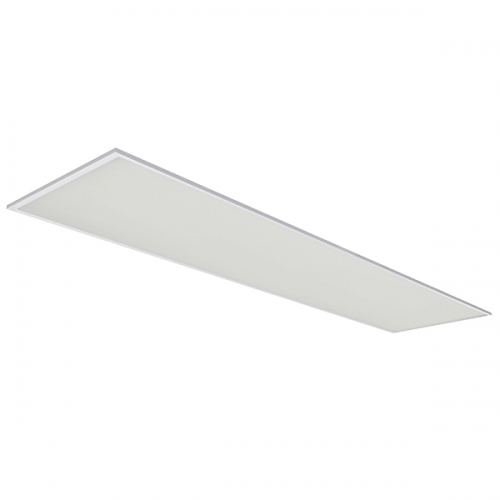

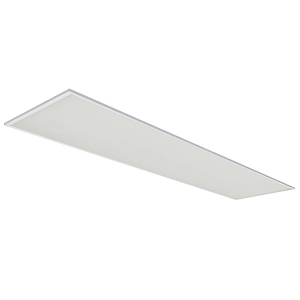

The Ansell APAC1/30/2 Pace is a slim white 1200 × 300mm backlit LED panel with selectable 20W/30W output and three colour temperatures. Its UGR<19 design and TP(a) opal diffuser support comfortable lighting for offices, classrooms and commercial interiors.

Order code: APAC1/30/2
Manufacturer: Ansell Lighting
GTIN:

£ 42.94 incl. VAT
£ 35.78 excl. VAT

Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Ansell Lighting APAC1/30/2 Description

The Ansell Pace APAC1/30/2 combines adjustable light output and colour temperature in a narrow rectangular panel. Select 20W or 30W operation and choose between 3000K warm white, 4000K cool white and 6500K daylight white to match the space. Delivering 2,700–3,700 lumens at 4000K, it provides broad illumination through a 90° beam while its low-glare design supports visual comfort. The 32mm profile accommodates shallow ceiling voids, and SDCM 3 colour consistency helps maintain a uniform appearance across multiple fittings. Optional dimming drivers, emergency pods and sensor pods allow additional functionality through separately purchased accessories.

Ansell Lighting APAC1/30/2 Features

  • Range: Pace
  • Finish: White
  • Type: Backlit recessed LED panel
  • Nominal size: 1200 × 300mm
  • Depth: 32mm
  • Selectable wattage: 20W / 30W
  • Delivered lumens: 2,700–3,700lm at 4000K
  • Selectable CCT: 3000K / 4000K / 6500K
  • Glare control: UGR<19
  • Diffuser: TP(a) opal
  • Beam angle: 90°
  • Colour rendering: CRI 80
  • Colour consistency: SDCM 3
  • Input voltage: 220–240V
  • Electrical protection: Class II
  • Power factor: 0.9
  • Product weight: 1.63kg
  • Compatible dimmable driver: ADDIM/1/36/MC, available separately

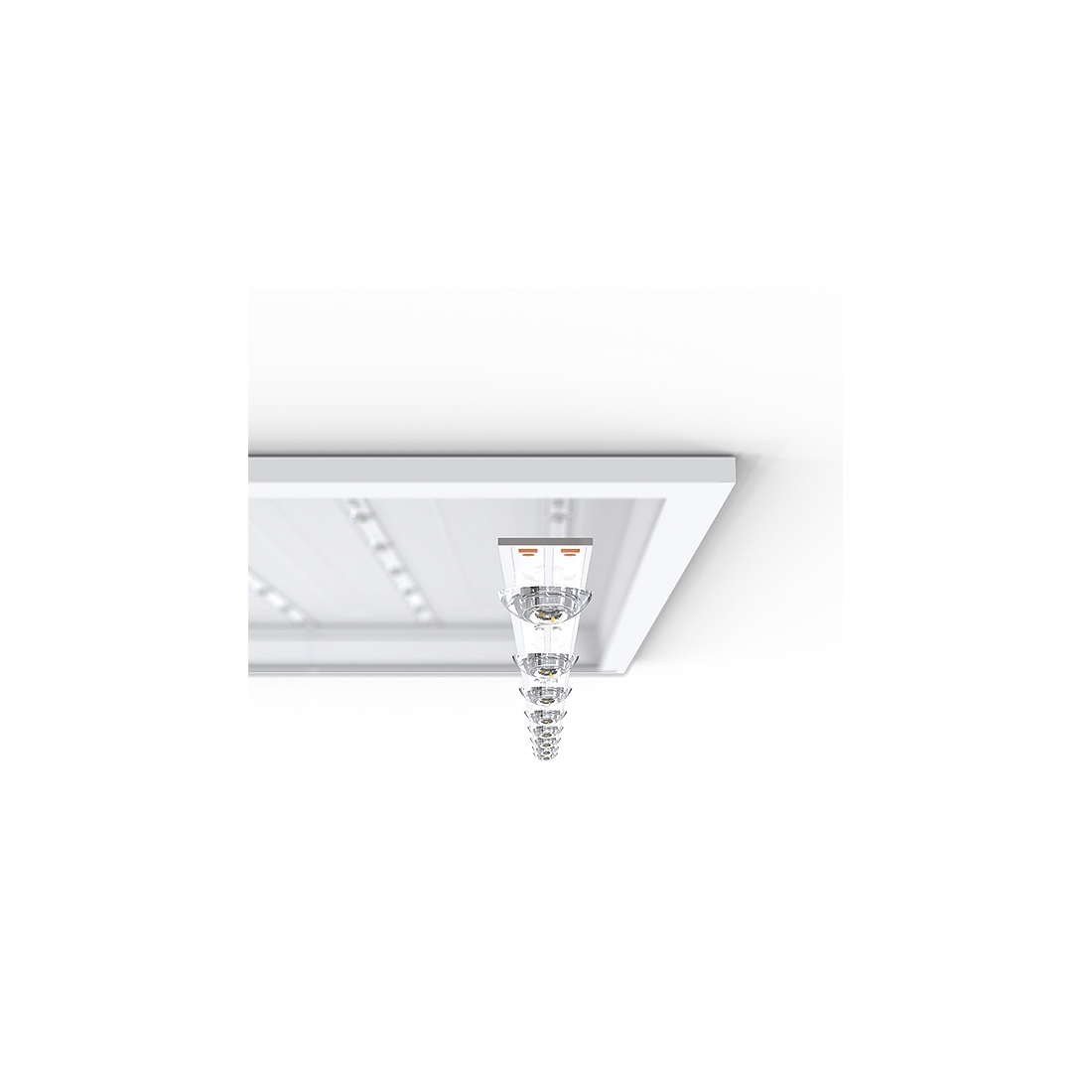

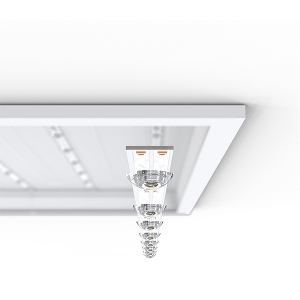

  • Compatible emergency, sensor and mounting accessories available separately
